JIVA10-DSB
  • DSB : Deep Space Blonde
  • COLOR VARIATION:
JIVA

SPEC

  • SPECS

    • neck type
    • Wizard III3pc Maple/Purpleheart neck
    • top/back/body
    • Quilted Maple topAfrican Mahogany body
    • fretboard
    • Ebony fretboardBeaten Path inlay
    • fret
    • Jumbo frets
    • number of frets
    • 24
    • bridge
    • Edge-Zero II bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Pandemonium™ (H) neck pickupPassive/Ceramic
    • middle pickup
    • DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® Pandemonium™ (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Cosmo Black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 21mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JIVA10's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    JIVA10's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Luminescent side dot inlay

Features

Ebony fretboard

Ebony fretboard

Ebony produces a tight low and mid range with an iconic attack on the high end. It also features a quick response and rich sustain.

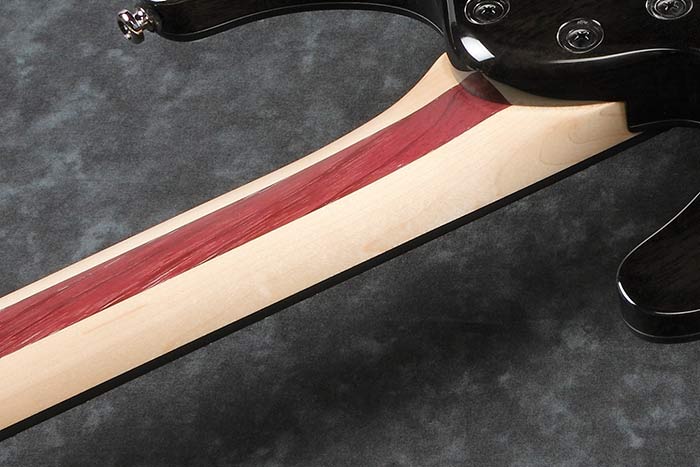

JIVA 3pc Maple/Purpleheart neck

JIVA 3pc Maple/Purpleheart neck

JIVA10 features Maple/Purpleheart neck. The Purpleheart stripe provides stability and longer sustain.

DiMarzio® Pandemonium™ pickups

DiMarzio® Pandemonium™ pickups

DiMarzio® Pandemonium™ pickups have a modern take on a classic rock sound which Nita wants.

Edge Zero II bridge

Edge Zero II bridge

Lower profile designed tremolo for playing comfort, and stud lock function for stable tuning.

Luminescent side dot inlays

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
