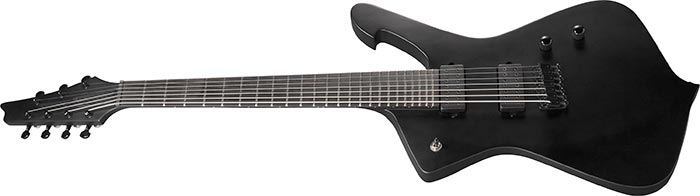

ICTB721
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard II-75pc Maple/WalnutNeck-through
- top/back/body
- Okoume body
- fretboard
- Ebony fretboard
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Mono-rail bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® D Activator 7™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® D Activator 7™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D,7A
- strings
- D'Addario® XL-140+ .064
- string gauge
- .010/.013/.017/.030/.042/.052/.064
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, the knob closest to the edge of the body is the tone knob. The knob closest to the neck is the volume knob. The pickup selector switch is located near the neck pickup.
-
OTHER FEATURES
- Gig bag included
- Gotoh® MG-T locking machine heads
- Luminescent side dot inlay
Features
Wizard II-7 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Okoume body
The Okoume body provides a bright and solid sound.
DiMarzio® D-Activator pickups
DiMarzio® D-Activator pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
