ICB720FM
- CBS : Cosmic Blue Starburst
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- ICB43pc Maple neck
- top/back/body
- Flamed Maple topOkoume body
- fretboard
- Bound Panga Panga fretboardAcrylic block inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- MR5S bridge
- string space
- 19mm
- neck pickup
- Nordstrand™ Big Break neck pickupPassive
- bridge pickup
- Nordstrand™ Big Break bridge pickupPassive
- equalizer
- Ibanez Custom Electronics 2-band EQ
- factory tuning
- 1G,2D,3A,4E
- strings
- D'Addario® EXL165
- string gauge
- .045/.065/.085/.105
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 41mm at NUT
- b : Width
- 62mm at 22F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
With the bass held in the playing position, the volume and bass boost/cut knobs are situated along the lower edge of the body. The knob closest to the input jack is the bass bosst/cut knob, and the knob closest to the neck is the volume knob. Above the volume and bass knobs are the treble boost/cut and pickup balancer knobs. The treble knob is closest to the input jack and the balancer knob is closest to the neck.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz and a variable width that decreases toward the high range, and a curve that the variable width becomes zero at approximately 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve creates a bell-shaped curve with a peak around 10000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
- Gig bag included
- Schaller strap locks are included.
- *Their use is strongly recommended when playing with a strap.
Features

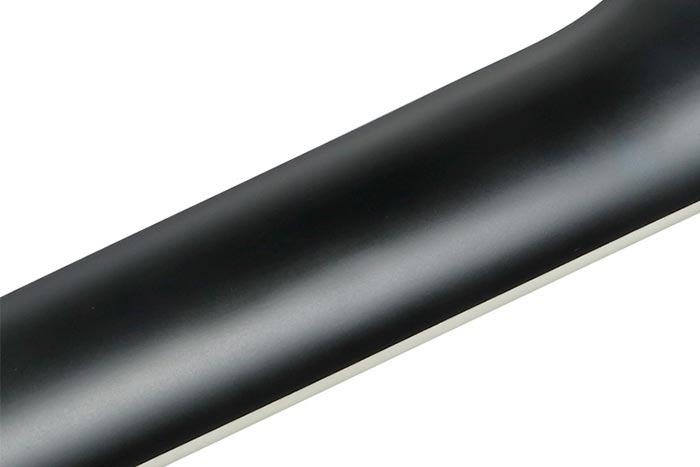

3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.
Panga Panga fretboard
Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.

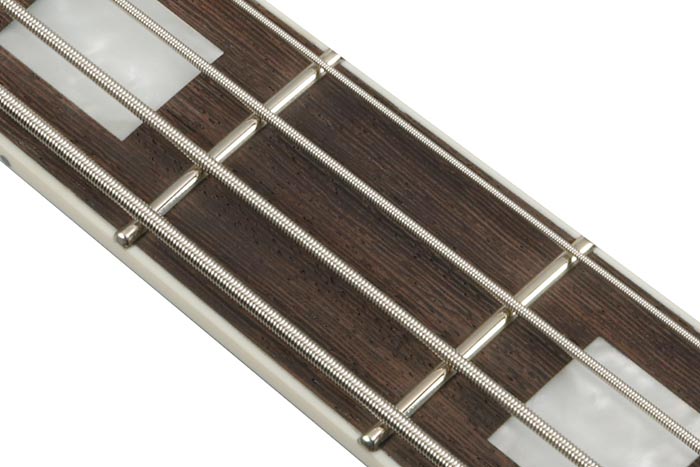

Medium frets
Medium sized frets enhance the accuracy of your notes.
Flamed Maple top / Okoume body
The Flamed Maple top features offers a beautiful wood grain and the Okoume body provides a bright and solid sound.

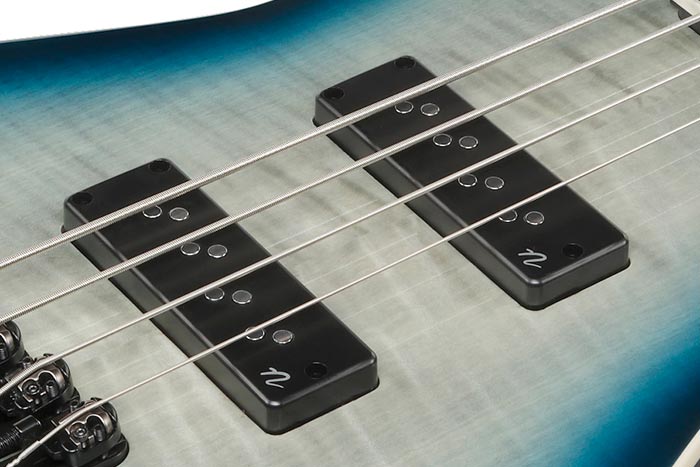

Nordstrand™ Big Break pickups
Nordstrand™ "Big Break" pickups cram a meaty split coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil tone with noiseless performance.

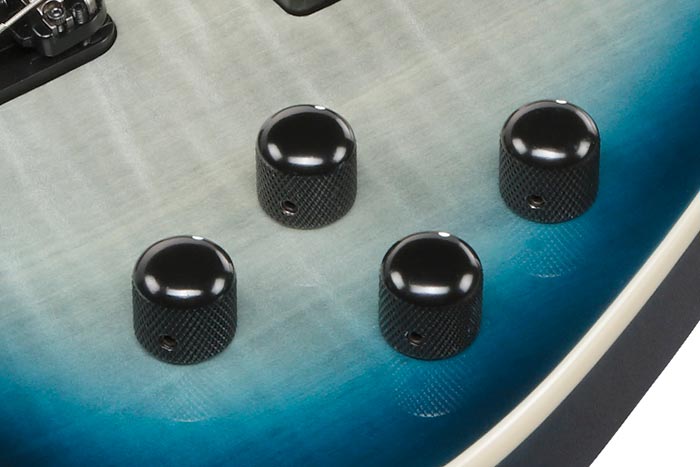

Ibanez Custom Electronics 2-band EQ
The Ibanez Custom Electronics 2-band EQ offers a wide range of sounds.

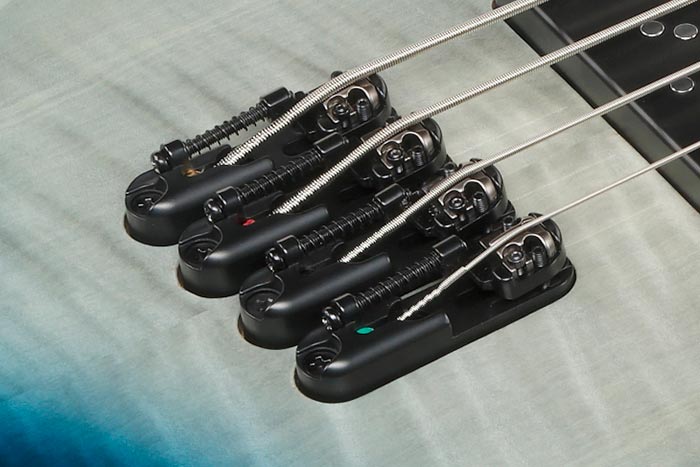

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist's specific string spacing needs.
Schaller S-Locks strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.
