GSA60

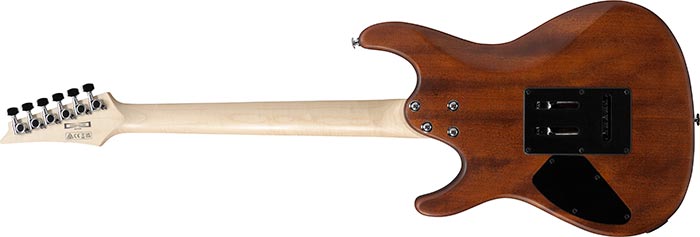

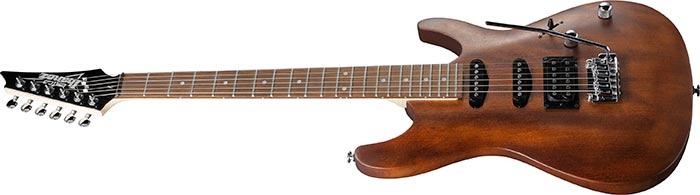

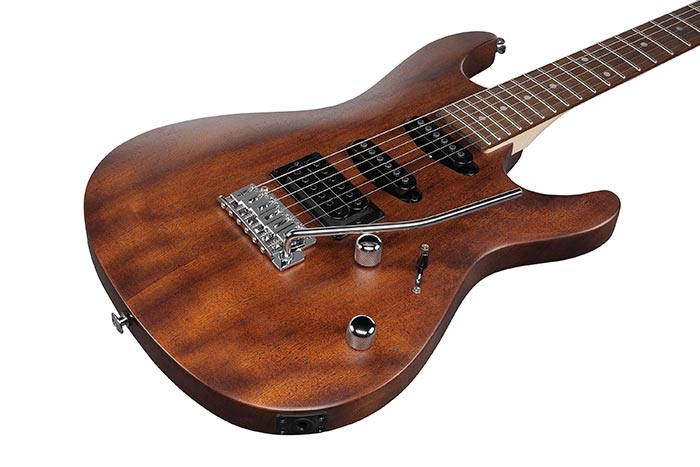

- WNF : Walnut Flat

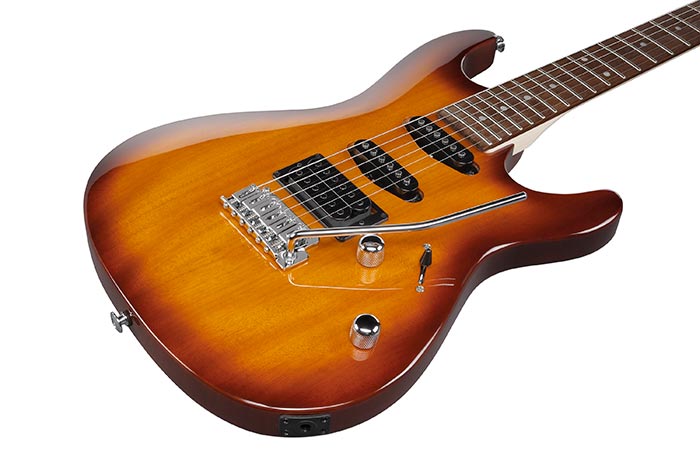

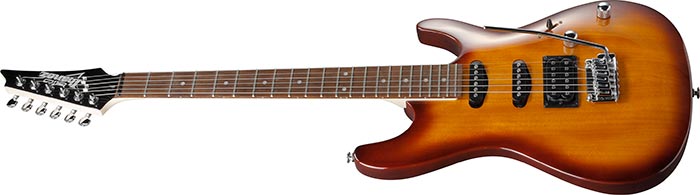

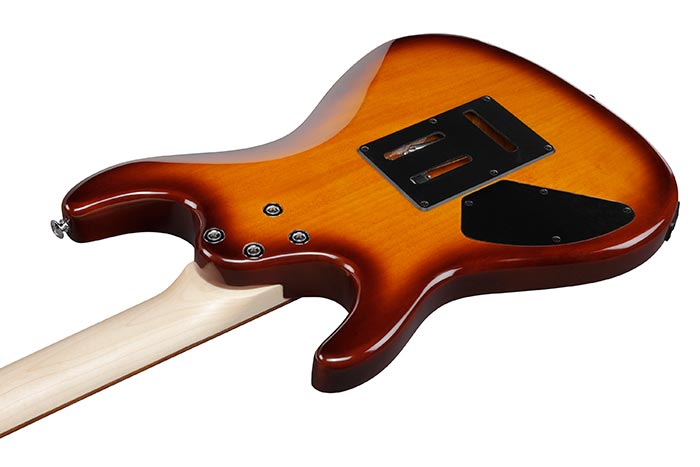

- BS : Brown Sunburst

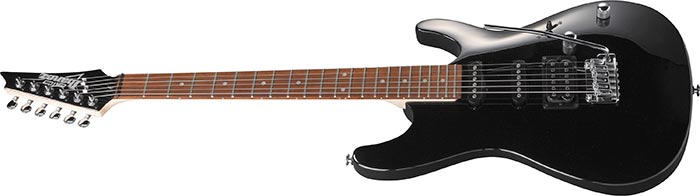

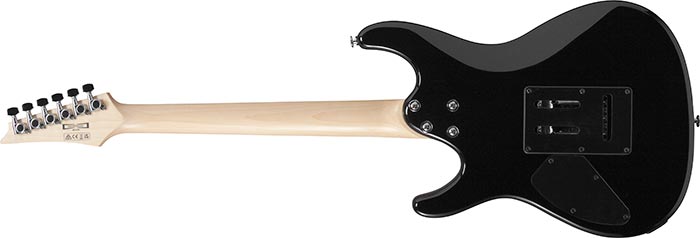

- BKN : Black Night
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- GSAMaple neck
- top/back/body
- Okoume body
- fretboard
- Jatoba fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- T102 bridge
- string space
- 10.5mm
- neck pickup
- Infinity RS (S) neck pickupPassive/Ceramic
- middle pickup
- Infinity RS (S) middle pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .009/.011/.016/.024/.032/.042
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck pickup and the center pickup are selected. When the switch is in center position, center pickup is selected. When the switch is in between the center and bridge position, center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

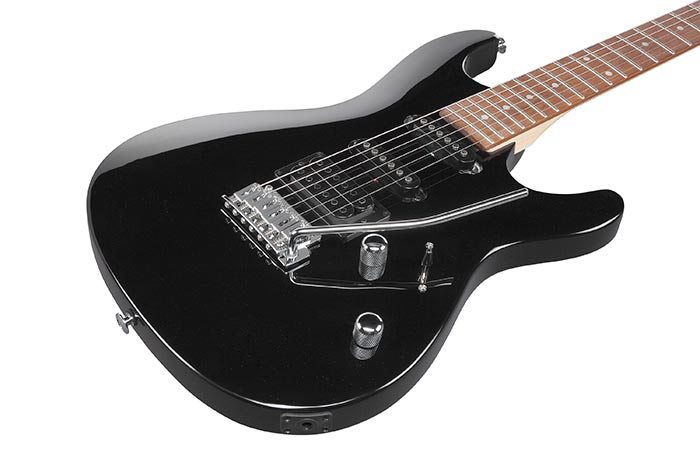

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Maple neck
The Maple neck provides stability and bright tonal character.
Infinity RS / Infinity R S-S-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
T102 tremolo
The T102 bridge with 10.5mm string spacing allows easier picking across strings.
Graceful 3D Shaped body
This guitar is light enough for amazing comfort, dense enough to provide the tone and sustain that players expect from its 3D shaped body.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
