- neck type
- GRXMaple neck
- Poplar body
- Jatoba fretboardWhite dot inlay
- Medium frets
- number of frets
- T106 bridge
- string space
- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- string gauge
- hardware color
- Scale :
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck pickup and the center pickup are selected. When the switch is in center position, center pickup is selected. When the switch is in between the center and bridge position, center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
The Maple neck provides stability and bright tonal character.

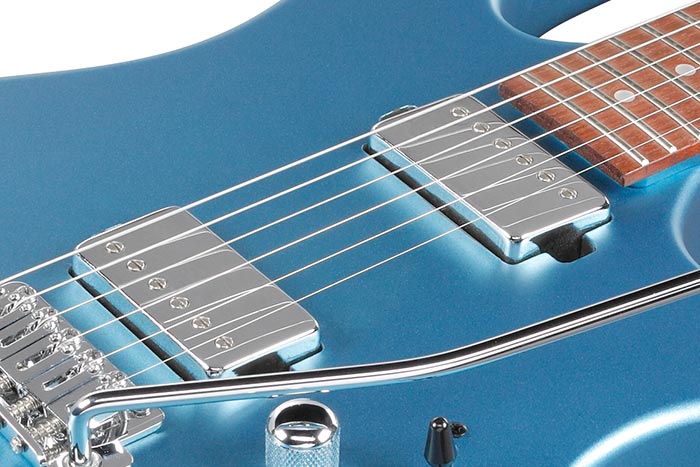

Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
T106 tremolo bridge
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
