GRG121SP
- BMC : Blue Metal Chameleon
- BKN : Black Night
- GYC : Green Yellow Chameleon
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- GRGRoasted Maple neck
- top/back/body
- Poplar body
- fretboard
- Jatoba fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- F106 bridge
- string space
- 10.5mm
- neck pickup
- Classic Elite (H) neck pickupPassive/Ceramic
- bridge pickup
- Classic Elite (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

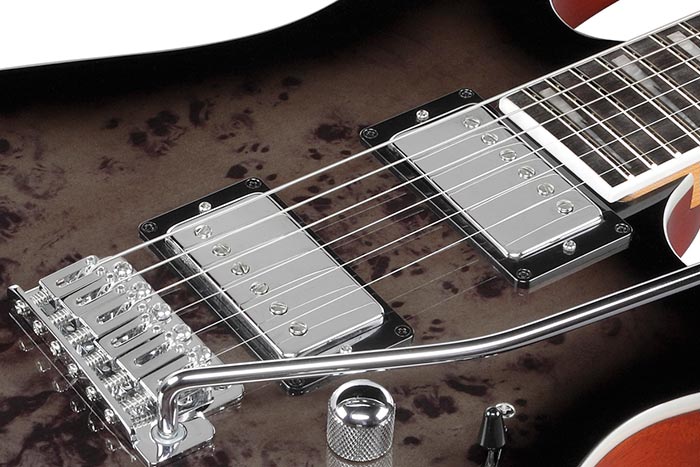

Classic Elite pickups
Classic Elite pickups offer rich, nuanced tone with fat low-end.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
