FRM350
SPEC
-
SPECS
- neck type
- FRM3pc Okoume/MapleSet-in neck
- top/back/body
- Okoume body
- fretboard
- Bound Ebony fretboardAcrylic & Abalone block inlay
- fret
- Narrow & Tall frets
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- Quik Change Classic tailpiece
- neck pickup
- DiMarzio® Air Classic™ (H) neck pickupPassive/Alnico
- bridge pickup
- DiMarzio® Air Classic™ (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.75"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 22F
- c : Thickness
- 22mm at 1F
- d : Thickness
- 24mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector knob near the knee cutout on the lower part of the body. From the direction of the selector towards the lower bout, there is tone knob and then a volume knob.
-
OTHER FEATURES
- Gig bag included
Features
3pc Okoume/Maple neck
The 3pc Okoume/Maple Neck provides great stability.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Narrow & Tall frets
Tall frets offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.
Okoume body
The Okoume body provides a bright and solid sound.

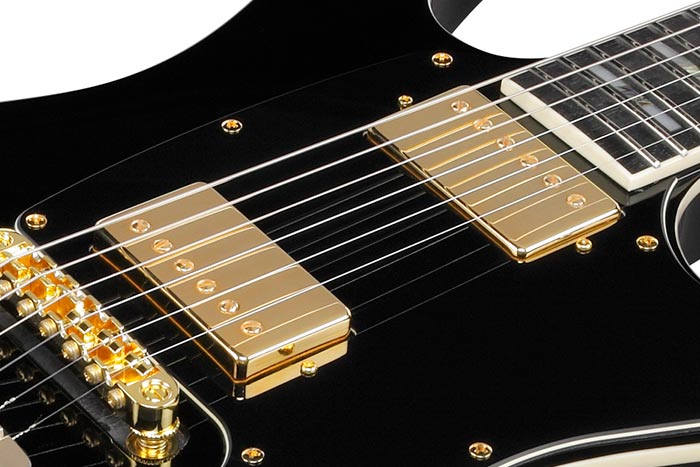

DiMarzio® Air Classic™ pickups
DiMarzio® Air Classic™ pickup combining vintage voicing with modern technology delivers an incredible touch-sensitive sound.
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
Quik Change Classic tailpiece
The Quik Change Classic tailpiece enables faster and easier string changing.
Magnetic slide bar holder
A magnet is embedded under the pickguard to hold a slide and allow you to switch quickly to slide playing.
