FRH10N
- IBF : Indigo Blue Metallic Flat
- RGF : Rose Gold Metallic Flat
- BSF : Brown Sunburst Flat
- NTF : Natural Flat
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- FRH body
- bracing
- Fan Bracing for FRH
- top
- Solid Sitka Spruce top
- back & sides
- Sapele back & Sapele sides
- neck
- C shapeNyatohSet-in neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood bridge
- inlay
- White dot inlay
- tuning machine
- Gold Classical tuners
- nut material
- Bone
- number of frets
- 22
- saddle material
- Bone
- strings
- D'Addario® XTC45
- string gauge
- .028/.032/.040/.028W/.035W/.044W
- string space
- 11.6mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ210T preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 46mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 17 5/16"
- b : Width
- 14 3/16"
- c : Max Depth
- 1 15/16"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
-
OTHER FEATURES
Features

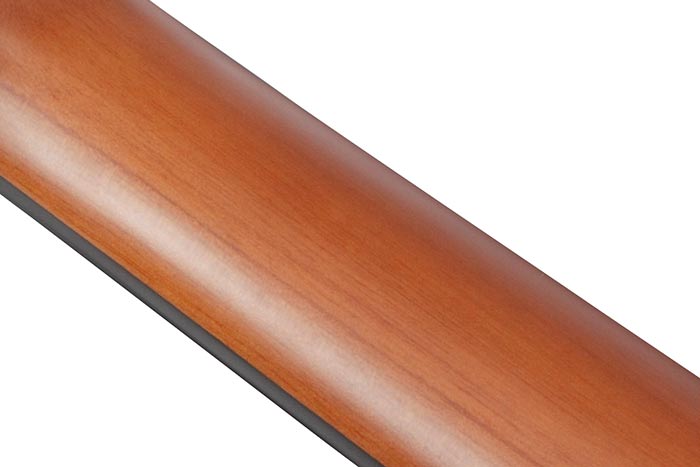

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Rosewood bridge
Modified FR hollow body w/ Fan bracing
Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.
Side Sound Port
The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.
46mm width nut / 400R fretboad radius
The combination of a narrow 46mm width nut and 400R fretboard radius offers easy fingering.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
