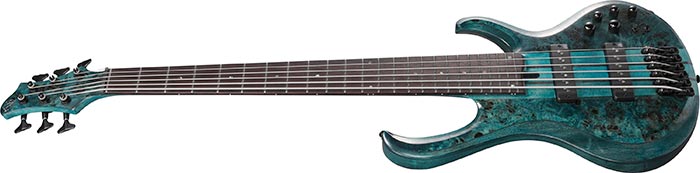

BTB946
- COL : Cosmic Blue Low Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- BTB65pc Maple/Walnut w/Graphite reinforcement rodsNeck-through
- top/back/body
- Poplar Burl topOkoume/Ash wing body
- fretboard
- Rosewood fretboardAbalone dot inlay
- fret
- Medium Stainless Steel frets
- number of frets
- 24 (+ zero fret)
- bridge
- MR5S bridge
- string space
- 17mm
- neck pickup
- Nordstrand™ Big Single neck pickupPassive
- bridge pickup
- Nordstrand™ Big Single bridge pickupPassive
- equalizer
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
- factory tuning
- 1C,2G,3D,4A,5E,6B
- strings
- D'Addario® NYXL32130SL
- string gauge
- .032/.045/.065/.080/.100/.130
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 889mm/35"
- a : Width
- 54mm at NUT
- b : Width
- 85mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
- 950mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION

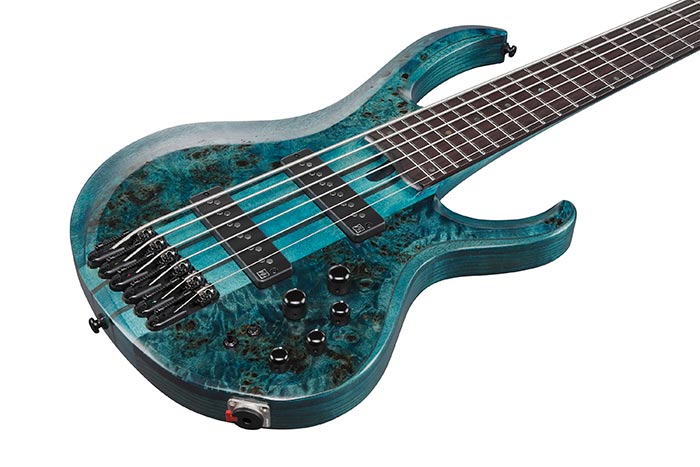

With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the end of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
Features
5pc Maple/Walnut neck with Graphite reinforcement rods
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.
Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium Stainless Steel frets
The Stainless Steel frets are durable and long-lasting.

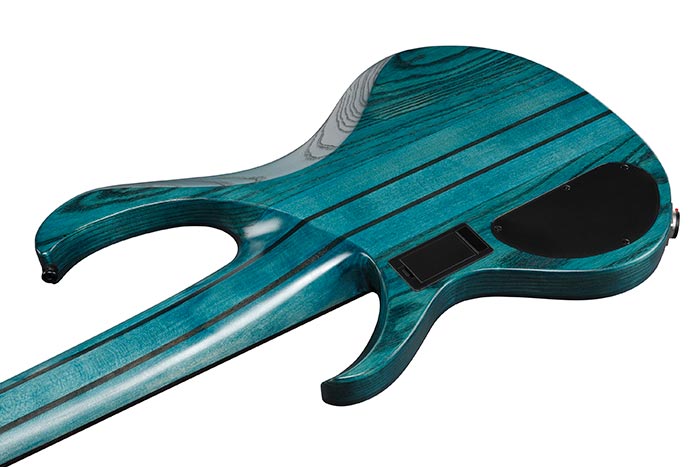

Poplar Burl top / Okoume / Ash wing body
A stunning Poplar Burl top with an Okoume/Ash wing body provides bright and solid tones with rich sustain.
Nordstrand™ Big Single pickups
Nordstrand™ "Big Single" cram a meaty single coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil pickups.
Ibanez Custom Electronics 3-band EQ w/Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/1.5mm, answering every bassist’s specific string spacing needs.
