AUP10FMNE
- TBO : Transparent Blue Sunburst Open Pore
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AU tenor chambered body
- top
- Flamed Maple top
- back & sides
- Solid Paulownia back & Solid Paulownia sides
- neck
- AUPOkoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart double hole bridge

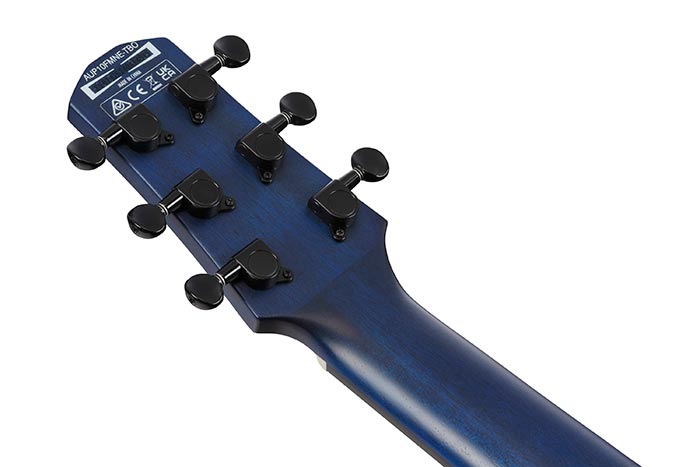

- tuning machine
- Black Die-cast tuners
- nut material
- Bone
- number of frets
- 19
- saddle material
- Compensated Bone
- strings
- Ibanez ICLS6NT
- string gauge
- .0280/.0322/.0403/.029/.035/.043
- string space
- 15mm
- factory tuning
- 1A,2E,3C,4G,5D,6A
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ2U preamp w/Onboard tuner
- output jack
- 1/4" Endpin Jack
- battery
- CR2032 x2
-
NECK DIMENSIONS
-
- Scale :
- 432mm/17"
- a : Width
- 48mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 22.7mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 11 5/16"
- b : Width
- 8 5/16"
- c : Max Depth
- 2 1/2"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The knob on the far left is the volume knob. To the right of the volume knob is a small on/off switch for the built-in tuner. Next to the tuner switch are the bass and treble knobs.
-
OTHER FEATURES
- Gig bag included
- Stereo Sound Port System
- Elevated Comfort Armrest
- Edgeless Comfort Heel
- Beveled Cutaway
Features
Okoume neck
The Okoume neck provides greater playing comfort.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this instrument.
Solid Paulownia back and sides
The light weight Paulownia back and sides offer well-balanced tone with superior note definition and added brightness.
Purpleheart double hole bridge
The double hole bridge makes string changes super easy as there is no need to bend the strings or tie a knot at the end. This also helps maintain the correct string tension, which enhances tuning stability.
Stereo Sound Port System
The dual sound holes on the waist provide a unique surround sound effect, helping players more effectively monitor their sound.
Elevated Comfort Armrest
This Elevated Comfort Armrest can prevent your arm from touching the body top to provide richer sound and natural sustain while providing extreme playing comfort.
Beveled Cutaway
The Beveled Cutaway offers exceptional high fret access.
Edgeless Comfort Heel
The Edgeless Comfort Heel is smoothly rounded toward the cutaway, allowing for easy playing in any position.
Flamed Maple top
The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.
