ALT50FA
- BDB : Blue Doom Burst High Gloss
- RDB : Red Doom Burst High Gloss
- TVT : Transparent Violet Sunburst
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Altstar body
- top
- Flamed Maple Art Grain (Basswood) top
- back & sides
- Sapele back & Sapele sides
- neck
- Comfort GripMaple neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- Sharktooth inlay
- tuning machine
- Black Die-cast tuners (18:1 gear ratio)
- number of frets
- 22
- bridge pins
- Ibanez Advantage™
- strings
- Ibanez IACS61C
- string gauge
- .010/.014/.023/.030/.039/.047
- string space
- 10.5mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ-2T preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 16F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 18 1/8"
- b : Width
- 14 5/8"
- c : Max Depth
- 4 3/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
- Recommended Bag
-
IAB540-BK
- Large frets
Features
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this instrument.

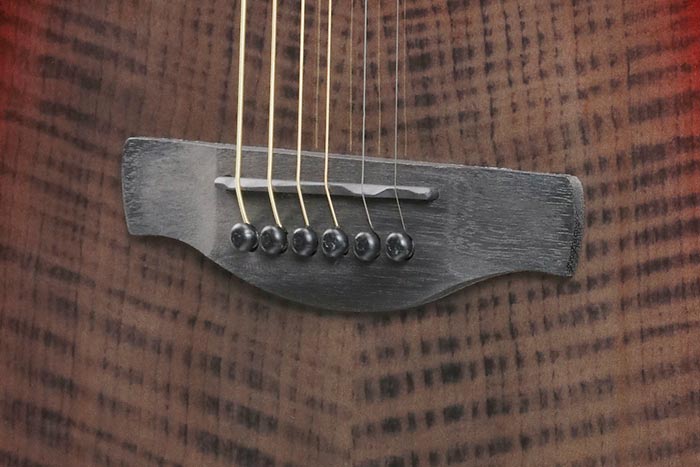

Purpleheart bridge
The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

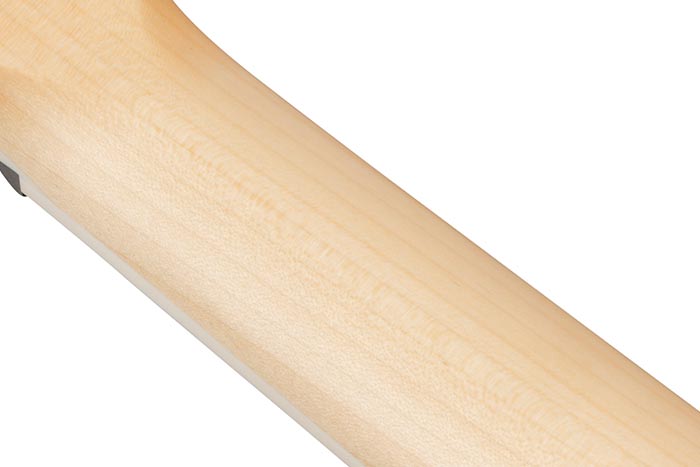

Comfort Grip Maple neck
The Comfort Grip Maple Neck contour provides superior playability.
Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

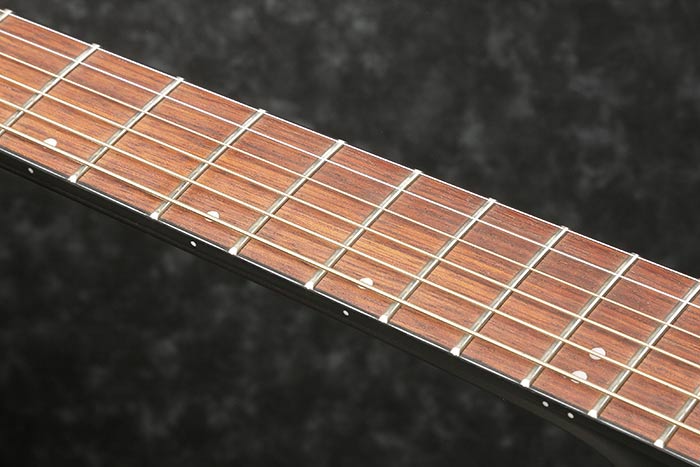

Large frets
The large frets contribute to smooth playability, especially for phrasing involving a series of quick, successive notes.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
