AGB200
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- AGB43pc Nyatoh/MapleSet-in
- top/back/body
- Linden topLinden sidesLinden back
- fretboard
- Bound Rosewood fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- Gibraltar III Bass bridge
- string space
- 19mm
- tailpiece
- Quik Change III Bass tailpiece
- neck pickup
- Classic Elite Bass neck pickupPassive
- bridge pickup
- Classic Elite Bass bridge pickupPassive
- factory tuning
- 1G,2D,3A,4E
- string gauge
- .050/.070/.085/.105
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 770mm/30.3"
- a : Width
- 42mm at NUT
- b : Width
- 61mm at 22F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 24mm at 9F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION

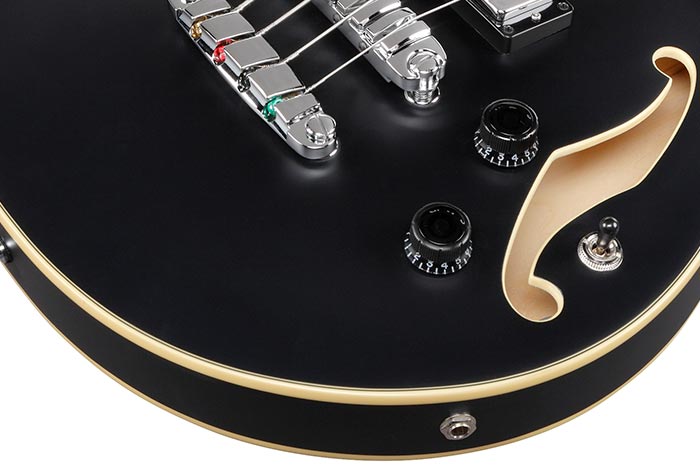

With the bass held in the playing position, the pickup selector switch is the control closest to the lower edge of the body. Just above the selector switch, there are two knobs arranged diagonally. The knob closest to the input jack is the tone knob. The knob closest to the neck is the volume knob.
-
OTHER FEATURES
- Recommended Bag
-
IHB541-BK
Features

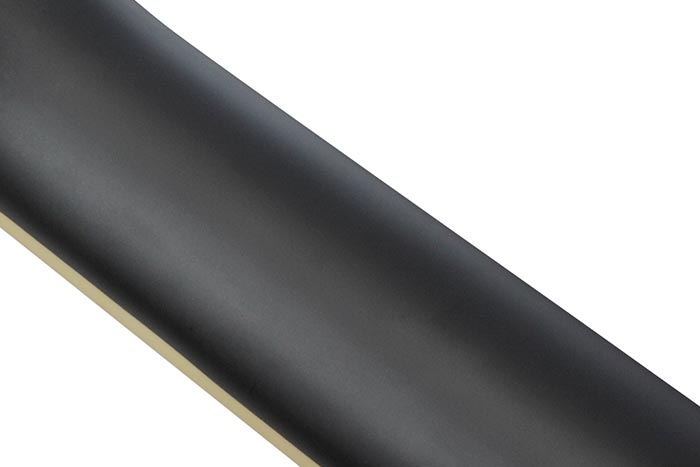

3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

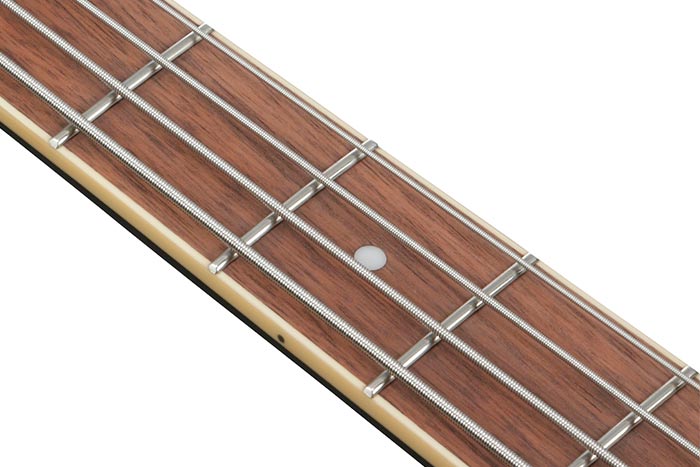

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Linden top / Linden back and sides
Linden delivers a natural and flat, yet accurate, tone.

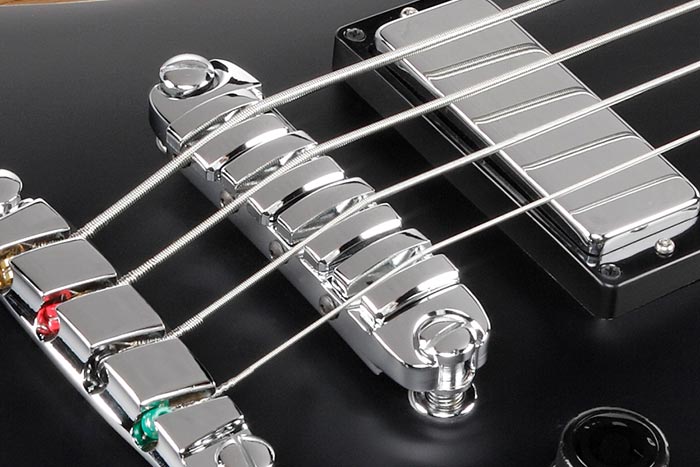

Gibraltar III Bass bridge
The Gibraltar III bridge provides a rich sustain.

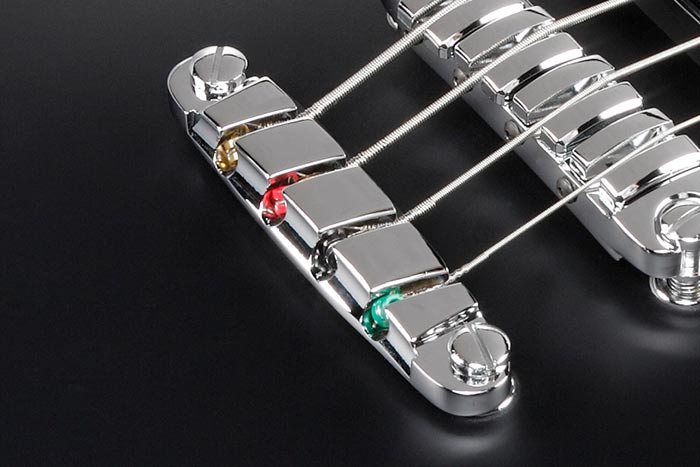

Quik Change III Bass tailpiece
The Quick Change III Bass tailpiece offers easy string changes.

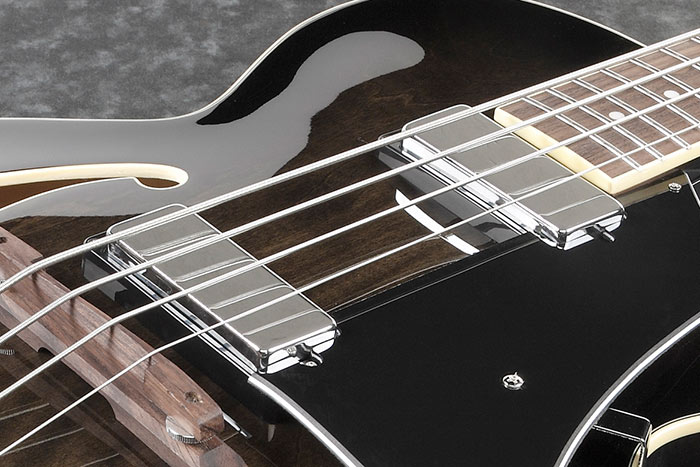

Classic Elite Bass Pickup
Classic Elite Bass Pickups deliver classic tone, punch and extra output.
