AEWC16QA

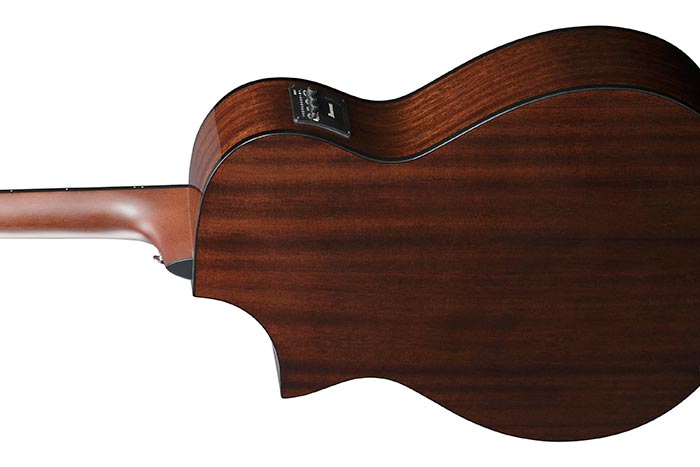

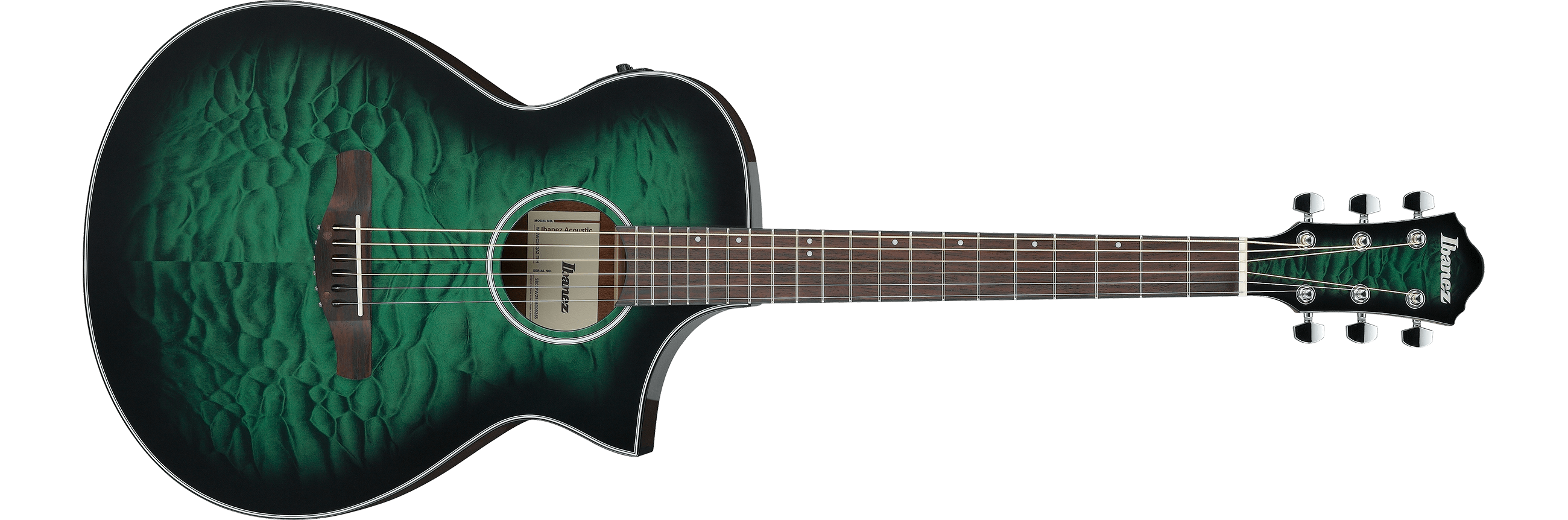

- TEH : Transparent Emerald Burst High Gloss top, Dark Brown High Gloss back and sides

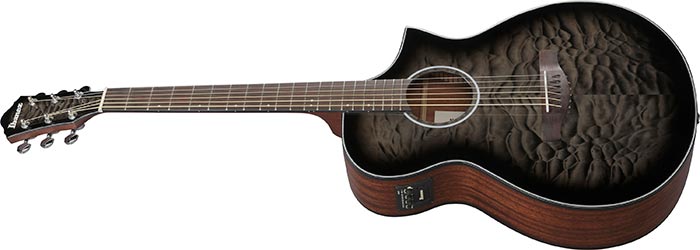

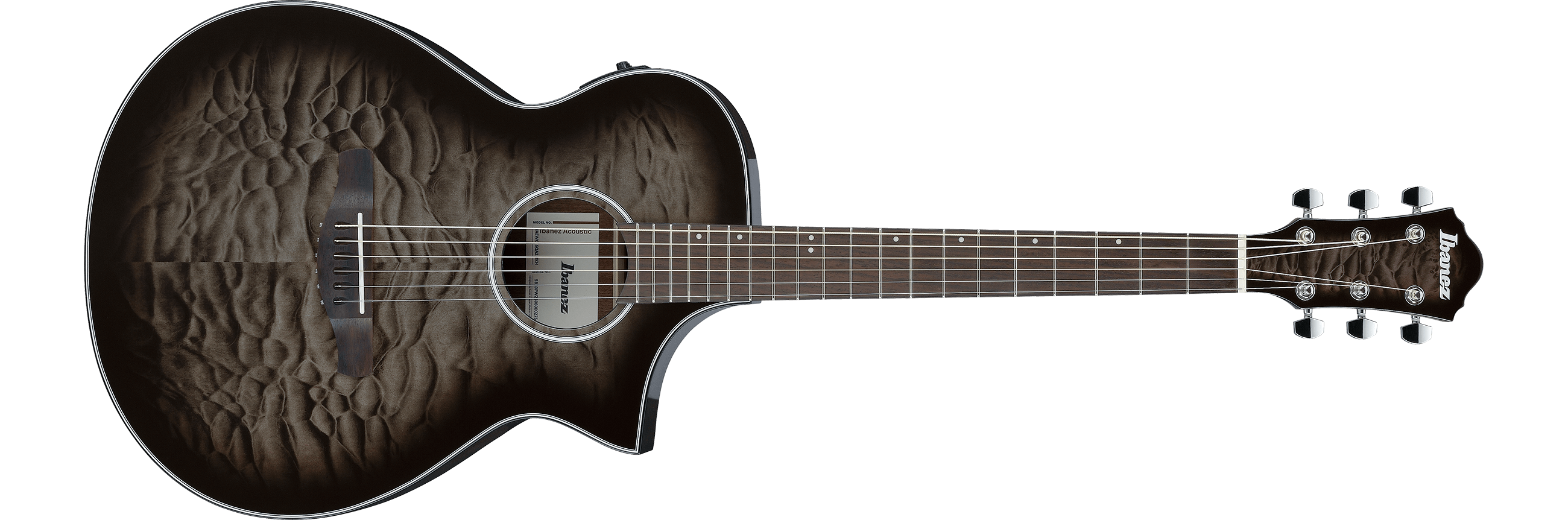

- TKH : Transparent Black Sunburst High Gloss top, Dark Brown High Gloss back and sides

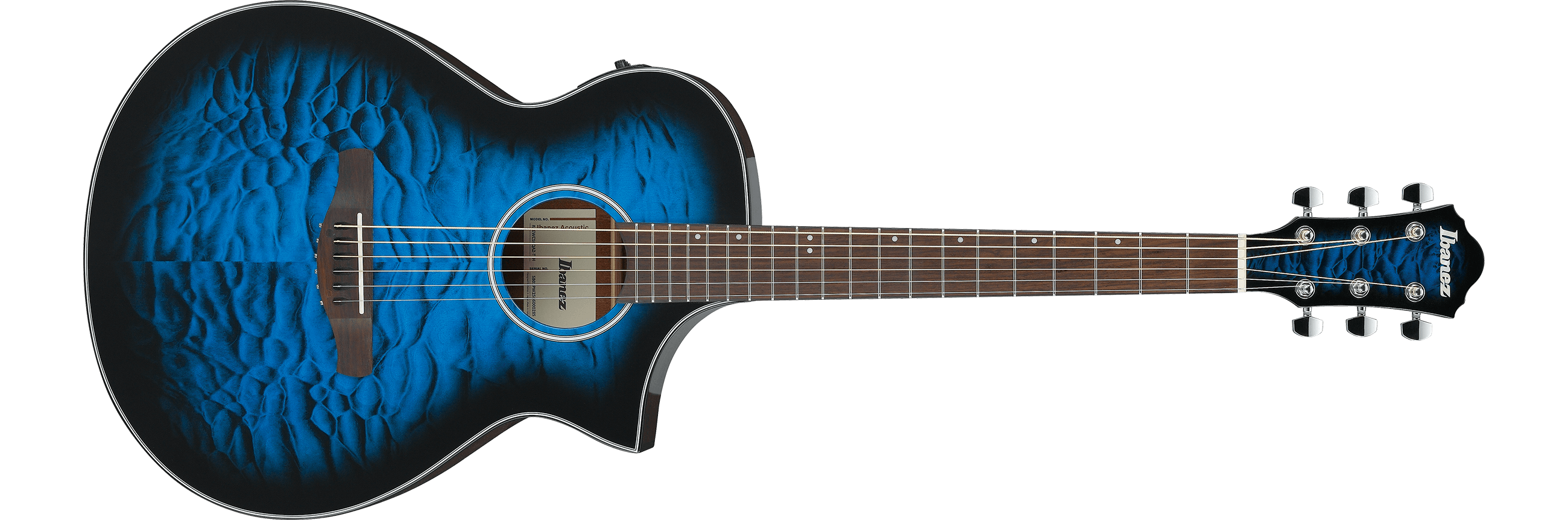

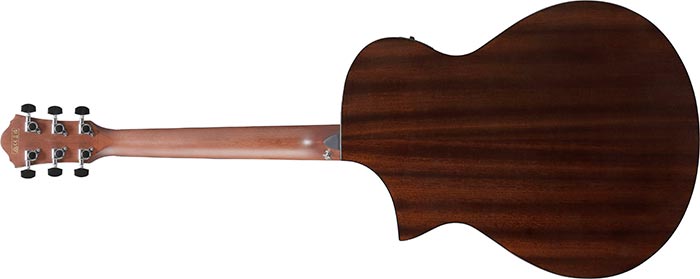

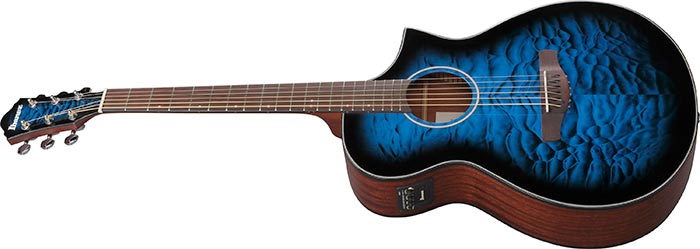

- TLH : Transparent Blue Sunburst High Gloss top, Dark Brown High Gloss back and sides
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AEWC body
- top
- Quilted Maple Art Grain (Basswood) top

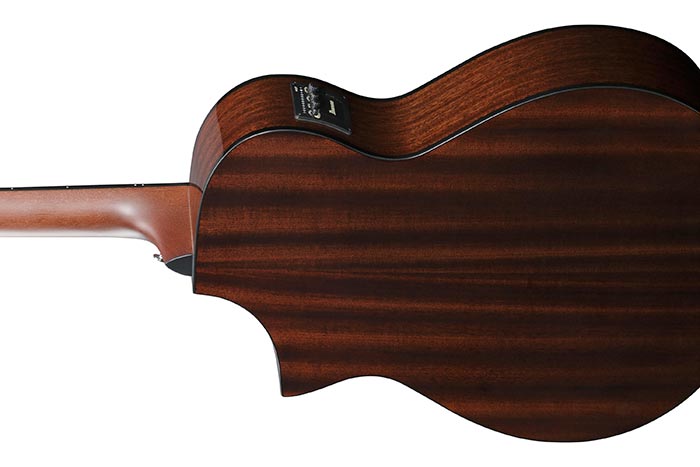

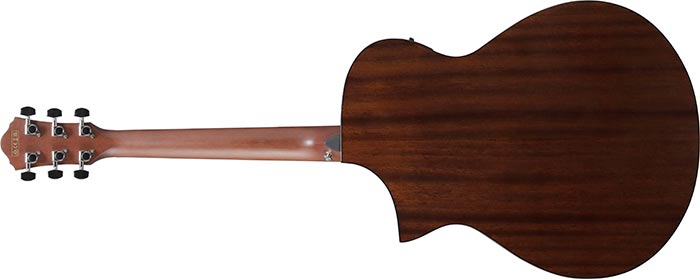

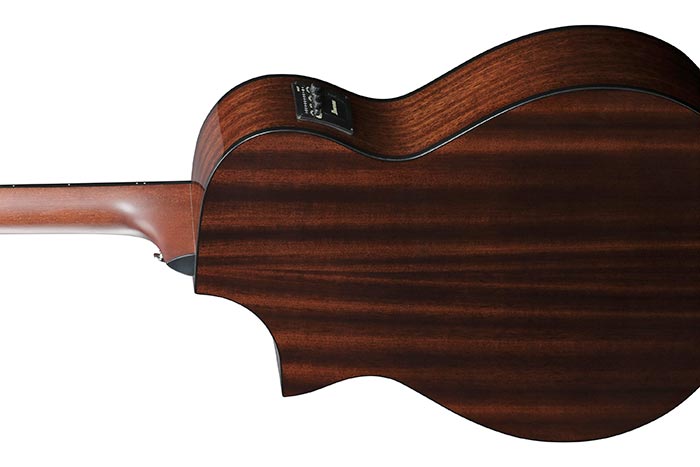

- back & sides
- Sapele back & Sapele sides
- neck
- Comfort GripNyatoh neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood AEWC original top loading bridge
- inlay
- Off-set white dot inlay
- soundhole rosette
- Water decal

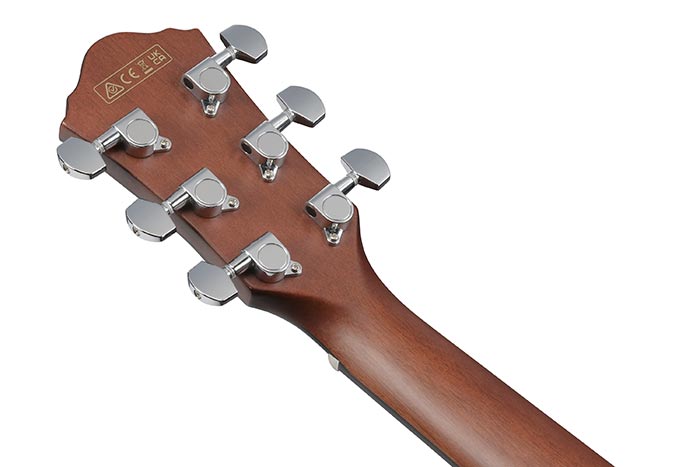

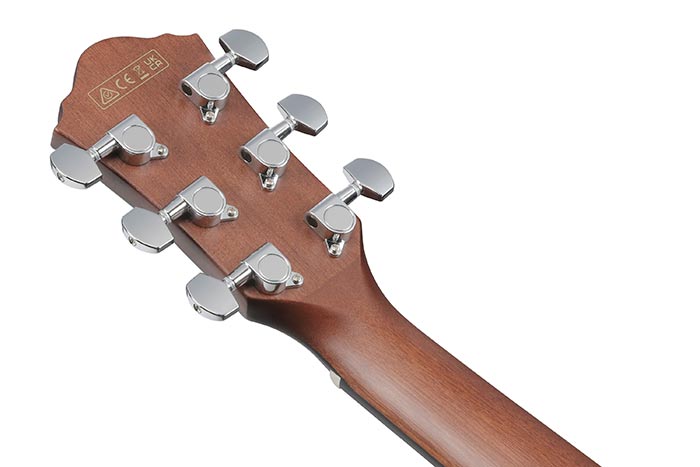

- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- number of frets
- 20
- strings
- Ibanez IACS6C
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ-2T preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 634mm/25"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 15"
- c : Max Depth
- 4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-

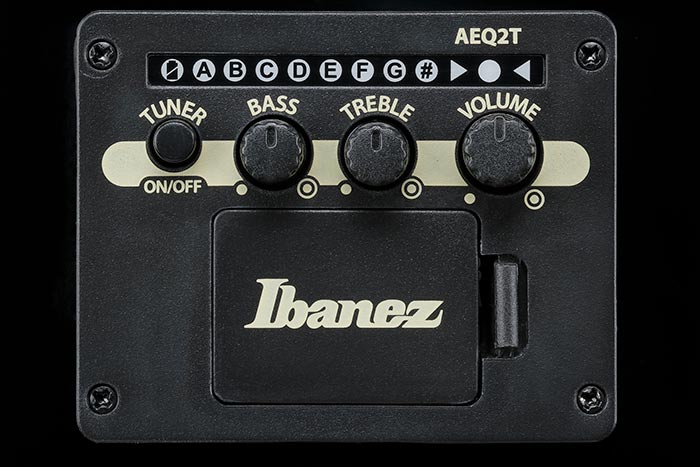

PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
Features
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

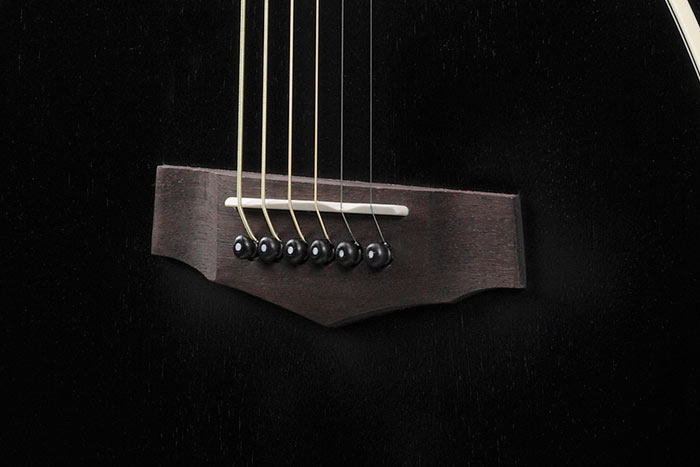

Ibanez Undersaddle pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

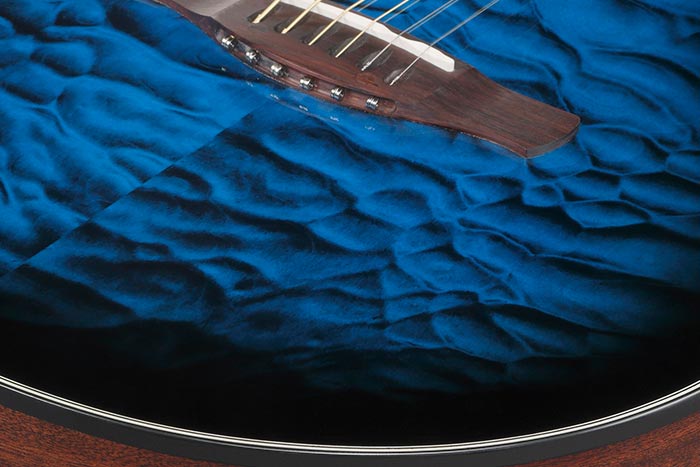

Quilted Maple Art Grain (Basswood) top
The Quilted Maple Art Grain (Basswood) top displaying a gorgeous wood grain.
Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Rosewood top loading bridge
Rosewood top loading bridge offers fast and easy string changing without bridge pins.

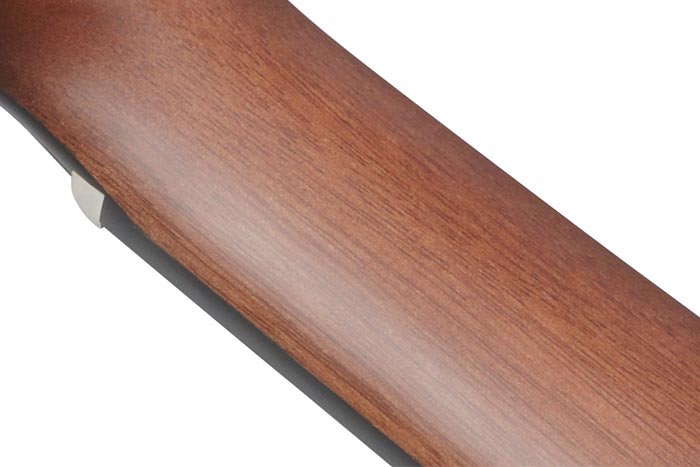

Comfort Grip Nyatoh neck
The Comfort Grip Nyatoh Neck contour provides superior playability.
