RGDRB71
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard II-7Roasted Maple neck
- top/back/body
- Nyatoh body
- fretboard
- Ebony fretboard
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Mono-rail bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® D Activator 7™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® D Activator 7™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D,7A
- strings
- D'Addario® EXL110-7
- string gauge
- .010/.013/.017/.026/.036/.046/.059
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way selector switch near to the knee cutout on the lower part of the guitar. The volume knob and coil tap switch are located toward the end of the body. When the coil tap switch is tilted towards the volume knob, the coil tap is on, and when the switch tilts away from the volume knob, the coil tap is off.
-
OTHER FEATURES
Features
Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

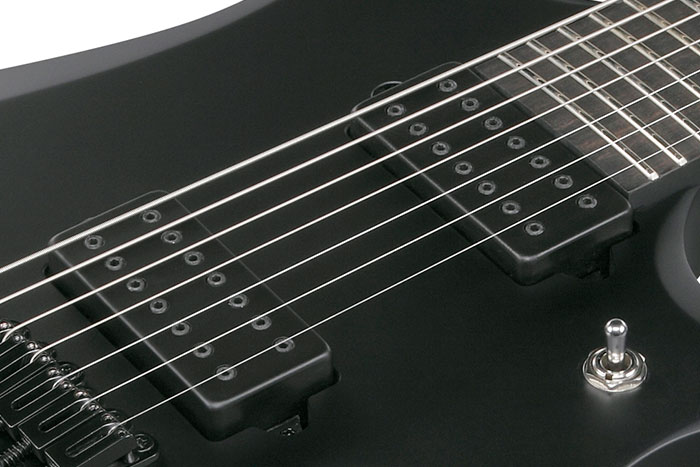

DiMarzio® D Activator™ pickups
DiMarzio® D Activator™ pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.
26.5 inch scale
Its extra long 26.5" scale and ability to accurately intonate heavier string gauges, make it the perfect beast for down-tuned metal.
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Wizard II Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.The Graphite reinforcement rods provides massive sustain and excellent stability.
