RGDMS8
SPEC
-
SPECS
- neck type
- Wizard III-8 for Multi Scale5pc Maple/Walnut neck
- top/back/body
- Nyatoh body
- fretboard
- Macassar Ebony fretboardWhite Step off-set dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Mono-rail bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Alnico 9 (H) neck pickupActive/Alnico
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic 9 (H) bridge pickupActive/Ceramic
- factory tuning
- 1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
- strings
- D'Addario® EXL120-7+.065
- string gauge
- .009/.011/.016/.024/.032/.042/.054/.065
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 692mm - 648mm/27.2" - 25.5"
- a : Width
- 55mm at NUT
- b : Width
- 80mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two switches and a knob along the lower edge of the body. The switch closest to the knee cutout of the guitar is the three-way pickup selector switch. Towards the end of the body is the volume knob and coil tap switch. The volume knob also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voicing 1, and when the knob is up, the pickups are in voicing 2. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
Features

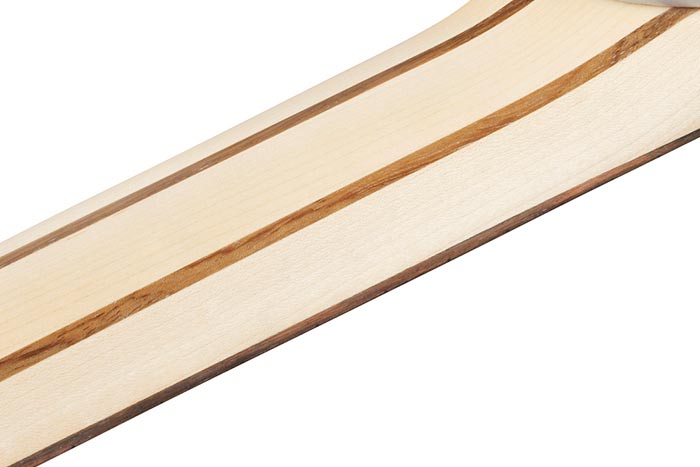

Wizard III 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

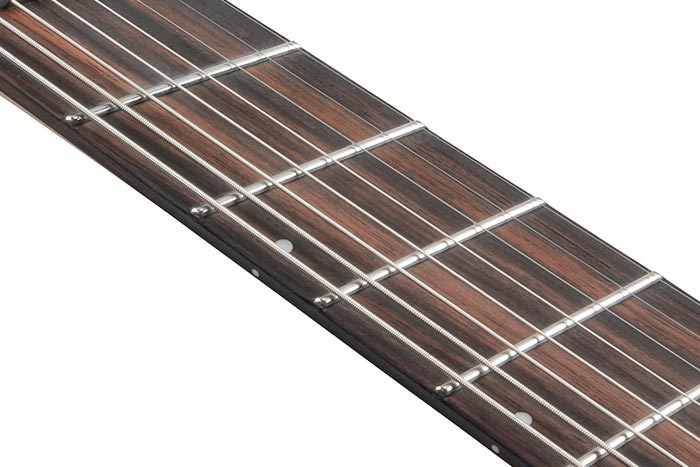

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

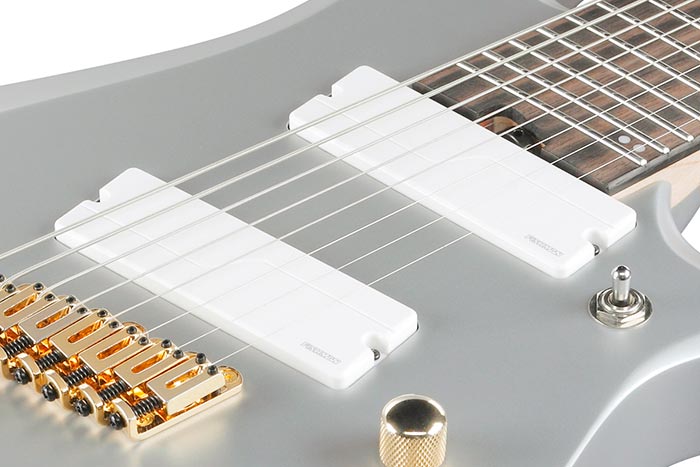

Fishman® Fluence™ Modern Humbucker Alnico / Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

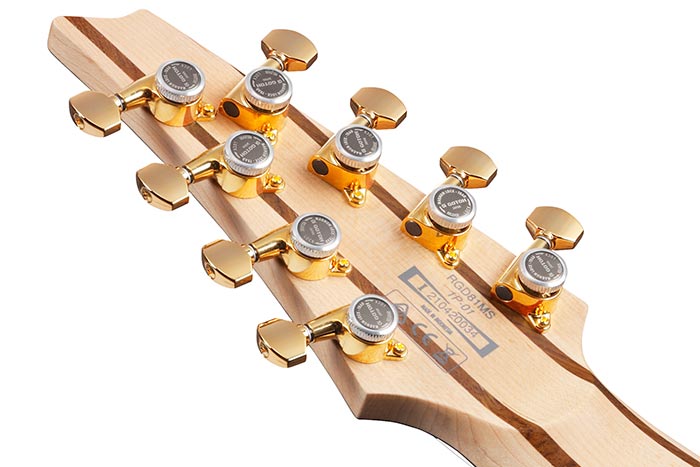

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

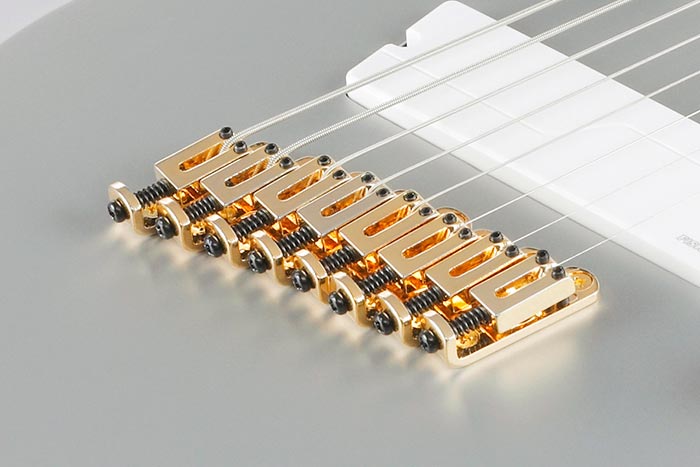

Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings

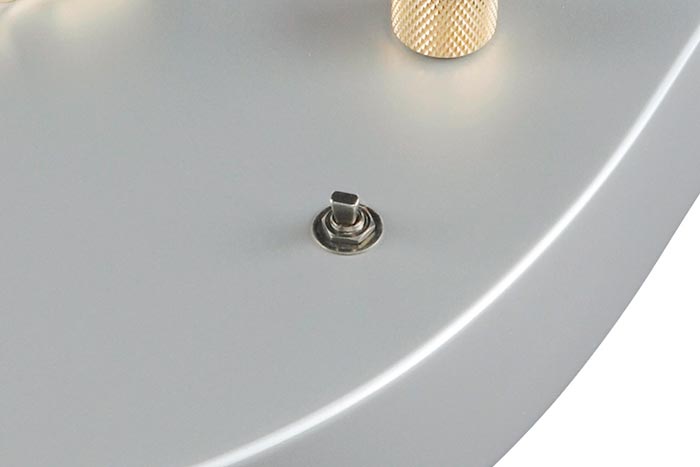

Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.

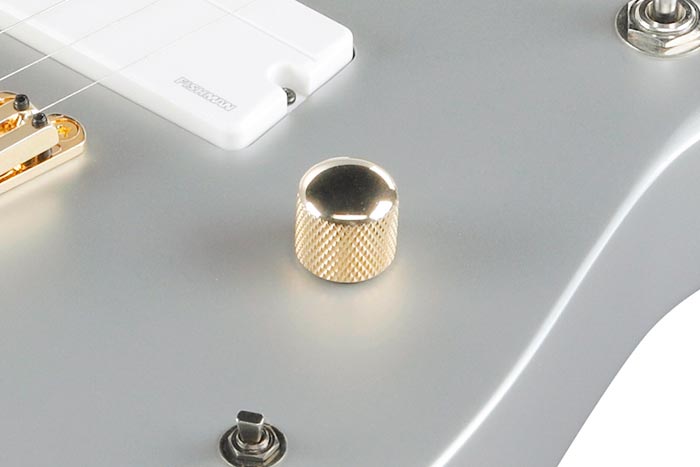

Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
