HZK1
SPEC
-
SPECS
- neck type
- Wizard-75pc Maple/Wenge neck
- top/back/body
- Spalted Maple topAlder body
- fretboard
- Bound Rosewood fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge 7 tremolo bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario® EXL120 + .056
- string gauge
- .009/.011/.016/.024/.032/.042/.056
- nut
- Locking nut
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the Fishman Fluence Voicing switch is set to voice 1 and the pickup selector is in the neck position, the neck pickup is active. When the switch is between neck and center position, the neck side of neck pickup is active. When the middle position is selected, both humbuckers are fully active. When the switch is between the center and bridge position, the neck side of neck pickup and neck side of the bridge pickup are active. When the switch is in bridge position, the bridge pickup is active. When the Fishman Fluence Voicing switch is in voice 2 and the pickup selector is in the neck position, the neck pickup is active. When the switch is between neck and center position, the neck side of neck pickup is active. When the middle position is selected, both humbuckers are fully active. When the switch is between the center and bridge position, the neck side of neck pickup and neck side of the bridge pickup are active. When the switch is in bridge position, the bridge pickup is active.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout. The knob closest to the edge of the body is the volume knob. The volume knob also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voice 1, and when the knob is up, the pickups are in voice 2.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
(Open in a modal window)
- Hardshell case included
- Gotoh® machine heads
- Luminlay side dots
Features

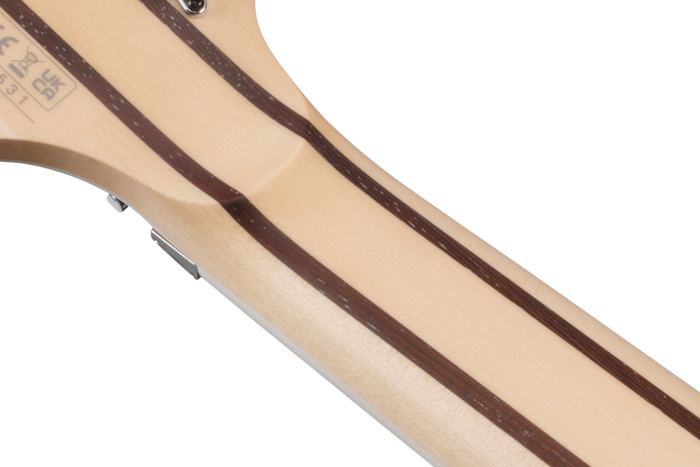

Wizard 5pc Maple/Wenge neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

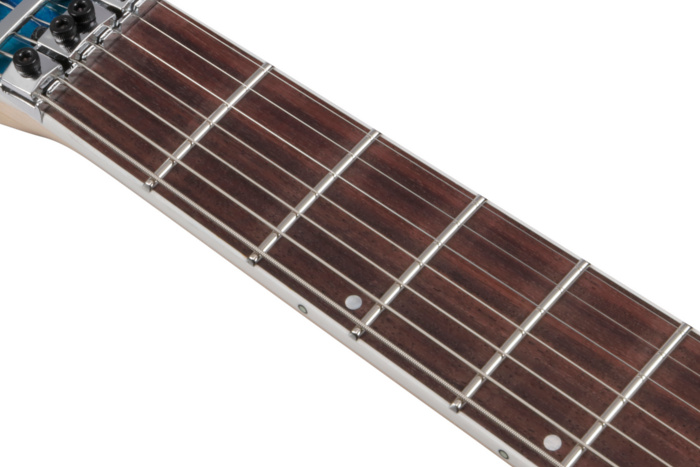

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

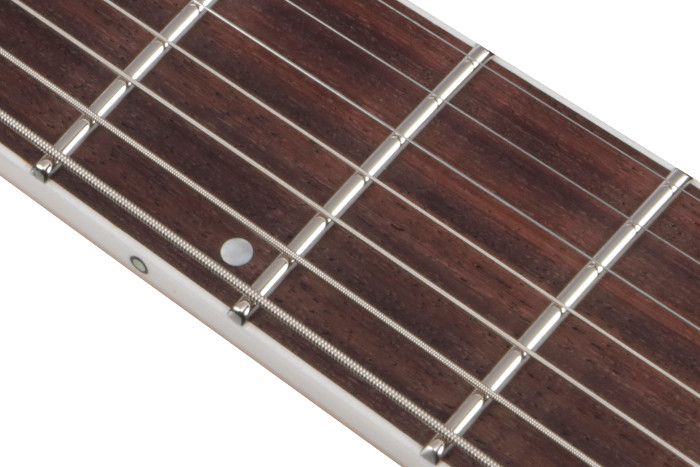

Jumbo Stainless Steel frets w/ Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.

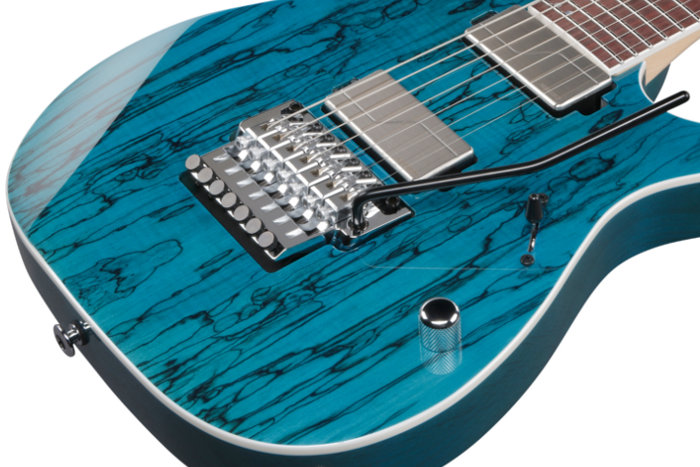

Spalted Maple top/ Alder body
The Spalted Maple top displaying a beautiful wood grain and the Alder body deliver a well-balanced bright tone, enriched resonance and sustain.

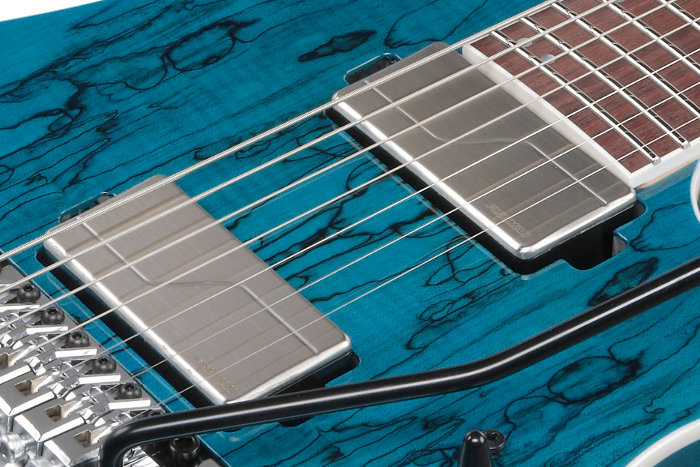

Fishman® Fluence™ Modern Humbucker pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

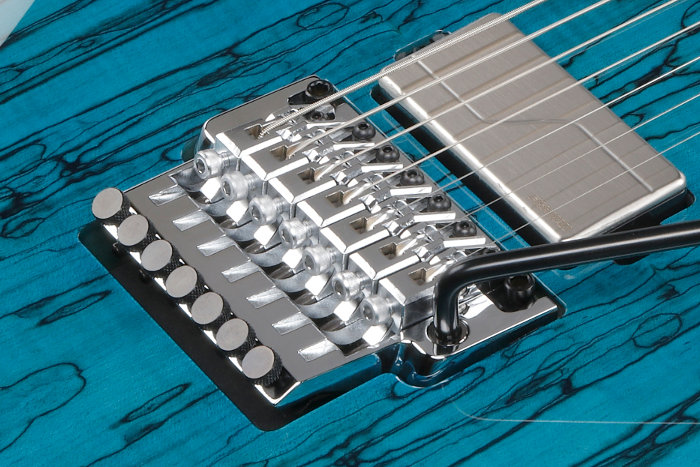

Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

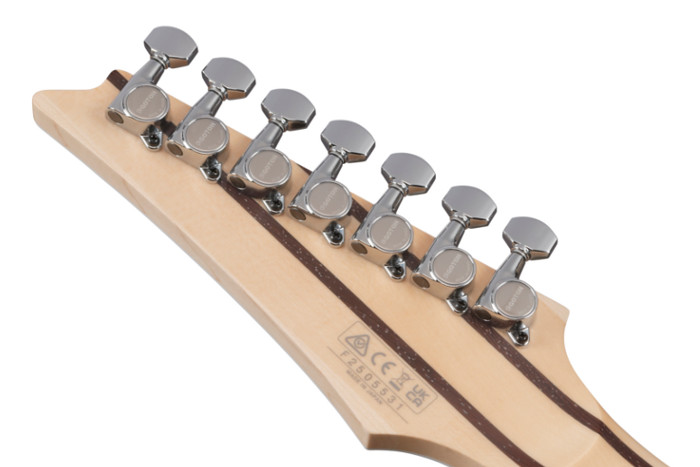

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

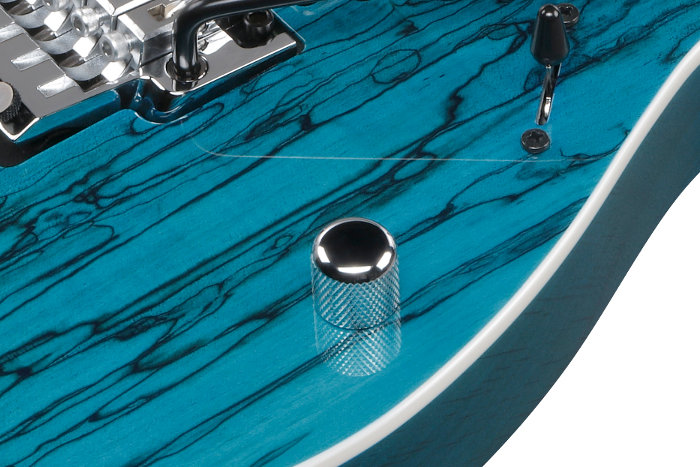

Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
