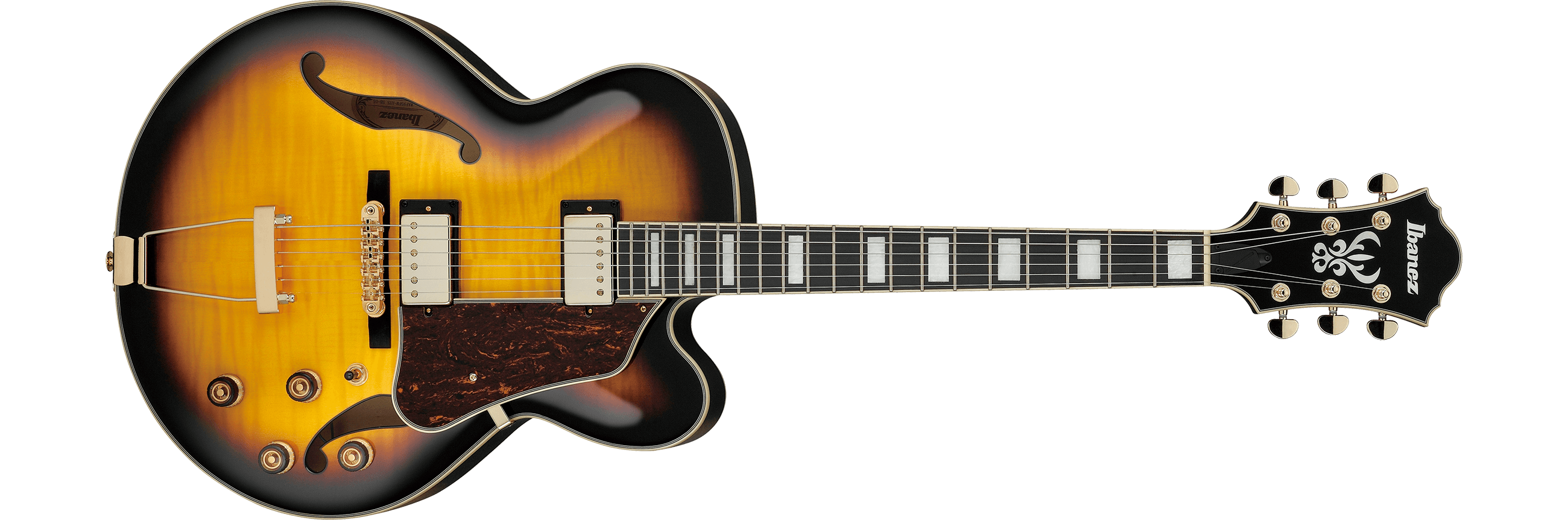

AF95FM
- AYS : Antique Yellow Sunburst
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- AF Expressionist3pc Nyatoh/Mapleset-in neck
- top/back/side
- Flamed Maple top Flamed Maple backFlamed Maple sides
- fretboard
- Bound Macassar Ebony fretboardAcrylic block inlay
- fret
- Medium frets
- number of frets
- 20
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- VT06 tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL140
- string gauge
- .010/.013/.017/.030/.042/.052
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm
- a : Width
- 43mm at NUT
- b : Width
- 56.3mm at 20F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 24mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/2"
- b : Width
- 15 3/4"
- c : Max Depth
- 3 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
-
OTHER FEATURES
Features
3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Flamed Maple top / Flamed Maple back and sides
The Flamed Maple offers a beautiful wood grain.
Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.
VT06 tailpiece
The artistically-designed VT06 tailpiece provides both great tuning stability and rich sustain.
