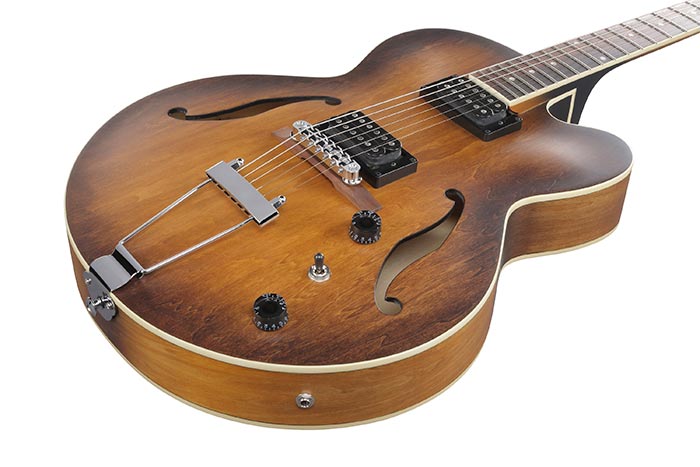

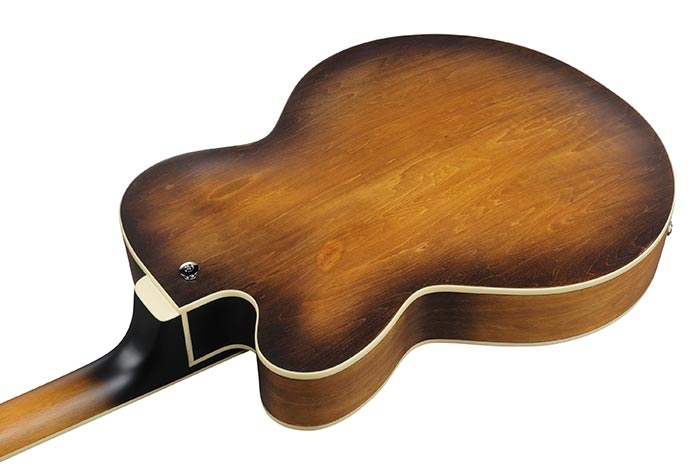

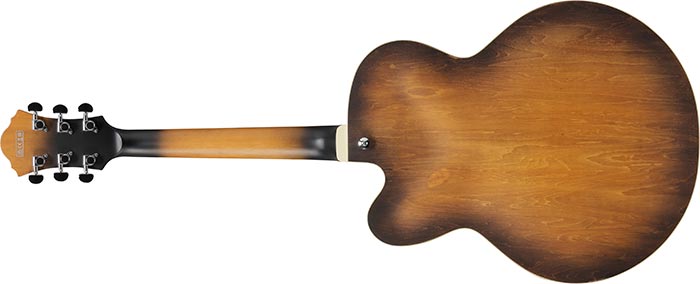

AF55
- TF : Tobacco Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- AF ArtcoreNyatohset-in neck
- top/back/side
- Linden top Linden backLinden sides
- fretboard
- Bound Rosewood fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 20
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- VT06 tailpiece
- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .010/.013/.017/.030/.042/.052
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 628mm
- a : Width
- 43mm at NUT
- b : Width
- 56.3mm at 20F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 24mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/2"
- b : Width
- 15 3/4"
- c : Max Depth
- 3 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
There are two knobs and one switch on this guitar. The tone knob is located near the edge of the body, and the knob closest to the neck is the volume knob. The switch located between these knobs is a three -way pickup selector switch.
-
OTHER FEATURES
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
VT06 tailpiece
The artistically-designed VT06 tailpiece provides both great tuning stability and rich sustain.
