UV70P-BK
  • BK : Black
  • COLOR VARIATION:
SHARE:
PIA/JEM/UV

SPEC

  • SPECS

    • neck type
    • Wizard-75pc Maple/Walnut neck w/KTS™ TITANIUM rods
    • top/back/body
    • American Basswood body
    • fretboard
    • Rosewood fretboardGreen dot inlay
    • fret
    • Jumbo fretsPremium fret edge treatment
    • number of frets
    • 24
    • bridge
    • Edge-Zero II-7 bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Blaze™ (H) neck pickupPassive/Ceramic
    • middle pickup
    • DiMarzio® Blaze™ (S) middle pickupPassive/Ceramic
    • bridge pickup
    • DiMarzio® Blaze™ (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E,7B
    • strings
    • D'Addario® EXL120-7
    • string gauge
    • .009/.011/.016/.024/.032/.042/.054
    • nut
    • Locking nut
    • hardware color
    • Cosmo black
  • NECK DIMENSIONS

      • Scale :
      • 648mm
      • a : Width
      • 48mm at NUT
      • b : Width
      • 68mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 21mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    UV70P's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    UV70P's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gig bag included

Features

Premium Fret Edge Treatment

Premium Fret Edge Treatment

Premium Fret Edge Treatment offer super smooth,comfortable performance.

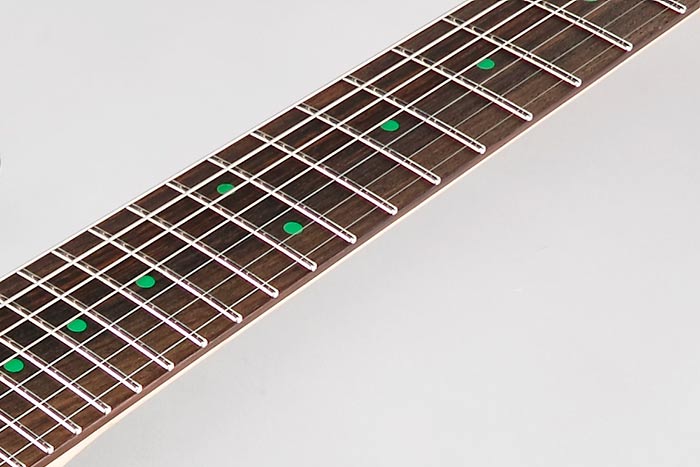

Rosewood fretboard

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.
