SR255E
- TKF : Transparent Black Flat
- PW : Pearl White
- COLOR VARIATION：
COLOR VARIATION
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
SPEC
-
SPECS
- neck type
- SR53pc Maple neck
- top/back/body
- Okoume body
- fretboard
- Purpleheart fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- B15 bridge
- string space
- 16.5mm
- neck pickup
- Dynamix H neck pickupPassive
- bridge pickup
- Dynamix H bridge pickupPassive
- equalizer
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
- factory tuning
- 1G,2D,3A,4E,5B
- string gauge
- .045/.065/.080/.100/.125
- hardware color
- Cosmo black
-
NECK DIMENSIONS
- Scale :
- 864mm/34"
- a : Width
- 45mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard -

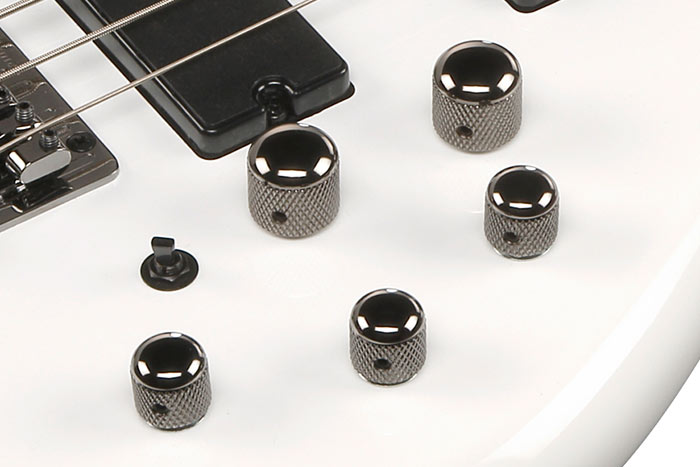

CONTROLS
DESCRIPTION
When holding the bass in playing position, there are three small knobs close to the lower edge of the bass. From the body end to the neck are; Treble boost/cut konb, mid boost/cut knob and bass boost/cut knob. There are two bigger knobs close to the center of the bass. The knob closest to the neck is the Volume knob, and the konb next to it is the balancer knob. There is a EQ bypass switch next to the balancer knob. When the switch is in neck position, EQ is off. When the switch is in bridge position, EQ is off. When EQ is off, Treble boost/cut knob works as a passive tone control knob.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve with a peak around 450 Hz, and the variable width becomes zero near 20 Hz and around 10,000 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
Features

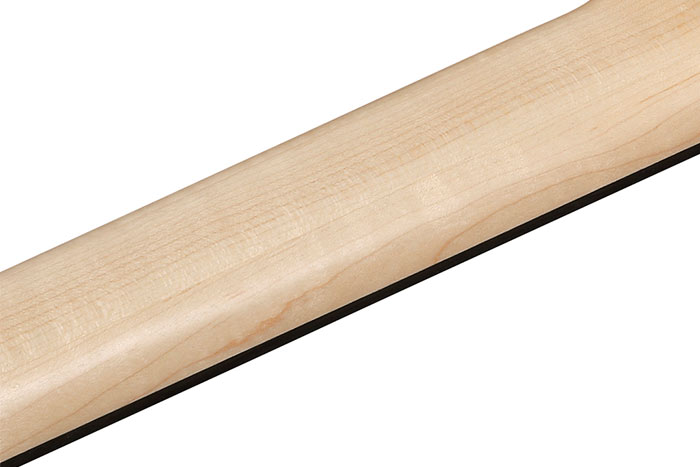

3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.

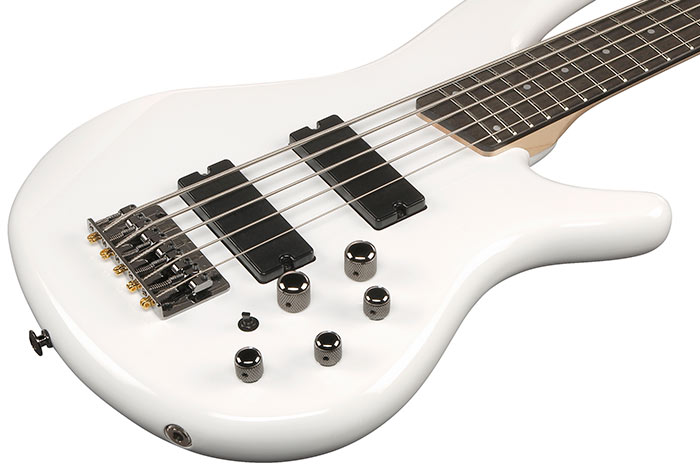

Okoume body
The Okoume body provides a bright and solid sound.
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot)
The Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.
B10 series bridge
The B10 bridge allows fully adjustable intonation and solid tuning stability.
Dynamix H pickups
Dynamix H pickups deliver rich and powerful sound
