RGR5221-TFR
  • TFR : Transparent Fluorescent Orange
  • COLOR VARIATION:
RG

SPEC

  • SPECS

    • neck type
    • Super Wizard HP5pc Maple/Wenge neck
    • top/back/body
    • Ash topAfrican Mahogany body
    • fretboard
    • Bound Macassar Ebony fretboardOff-set Mother of Pearl dot inlay
    • fret
    • Jumbo Stainless Steel fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • Gibraltar Standard II bridge
    • string space
    • 10.8mm
    • neck pickup
    • Bare Knuckle Brute Force (H) neck pickupPassive/Ceramic
    • bridge pickup
    • Bare Knuckle Brute Force (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL110
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • nut
    • Graph Tech® BLACK TUSQ XL® nut
    • hardware color
    • Cosmo black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 17mm at 1F
      • d : Thickness
      • 19mm at 12F
      • Radius :
      • 430mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    RGR5221's Switching system diagram

    DESCRIPTION

    When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.

  • CONTROLS

    RGR5221's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cut out is a three-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in the neck position, the coil tap is on. When the switch is in the bridge position, the coil tap is off.

  • OTHER FEATURES

    • Hardshell case included
    • Coil-tap switch
    • Luminlay side dots
    • Gotoh® MG-T locking machine heads

Features

Super Wizard HP 5pc Maple/Wenge neck

Super Wizard HP 5pc Maple/Wenge neck

Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.

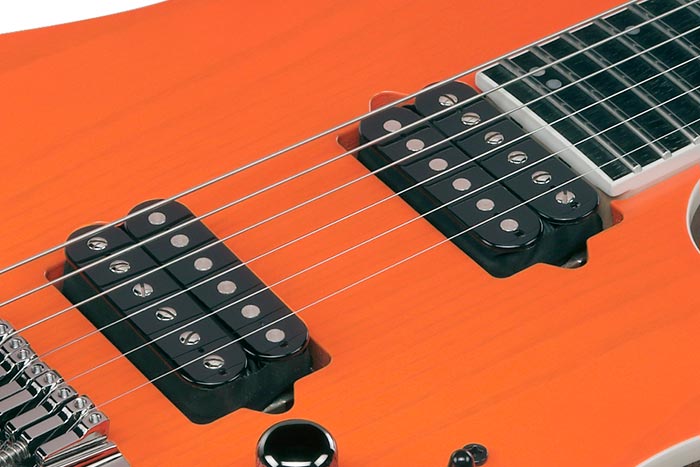

Bare Knuckle Brute Force Pickups

Bare Knuckle Brute Force Pickups

Bare Knuckles' high output Brute Force produce a deep, saturated tone yet good clarity which perfectly fits into today's metal mayhem.

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Gibraltar Standard II Bridge

Gibraltar Standard II bridge

The Gibraltar Standard II is a simple fixed bridge designed provide optimal transfer of each string's vibration and its smooth surface maximizes playing comfort.

Coil-tap switch

Coil-tap switch

The coil tap switch adds sound and tonal variations for both pickups.

Gotoh MG-T locking machine heads

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Luminlay side dot inlays

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
