PSM10
SPEC
-
SPECS
- neck type
- PSMMaple neck
- top/back/body
- Poplar body
- fretboard
- Bound Ebony fretboardWhite Block inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- Quik Change III tailpiece
- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 564mm/22.2"
- a : Width
- 41mm at NUT
- b : Width
- 56mm at 22F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, the knob closest to the edge of the body is the tone knob. The knob closest to the neck is the volume knob. The pickup selector switch is located near the neck pickup.
-
OTHER FEATURES
- Gig bag included
Features
Maple neck
The Maple neck provides stability and bright tonal character.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.
22.2" scale neck
The 22.2" scale neck is perfect for tour buses, songwriting, running
scales while downloading and, of course, for young rockers and beginners.

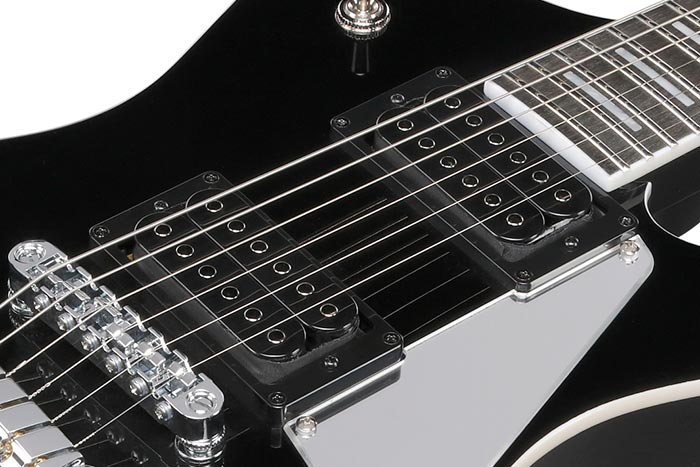

Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
Quik Change III tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
Size Comparison (PS)
