PS60
SPEC
-
SPECS
- neck type
- PSMaple neck
- top/back/body
- Poplar body

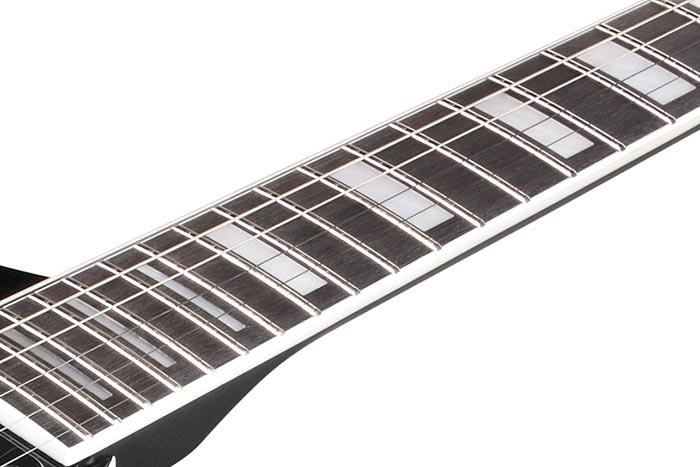

- fretboard
- Bound Purpleheart fretboardWhite block inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm

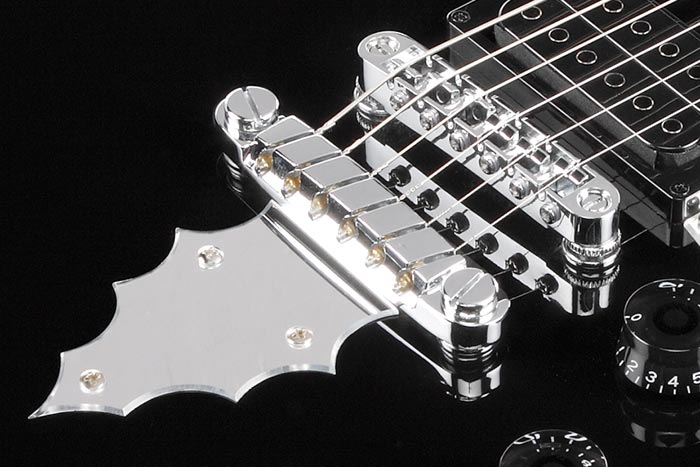

- tailpiece
- Quik Change III tailpiece

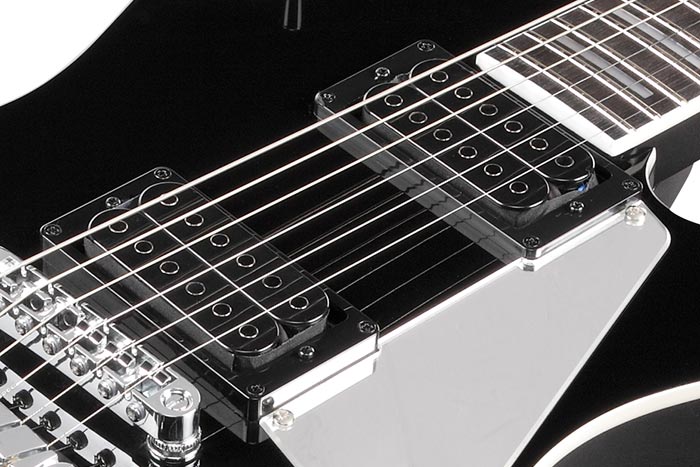

- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.75"
- a : Width
- 43mm at NUT
- b : Width
- 56mm at 22F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

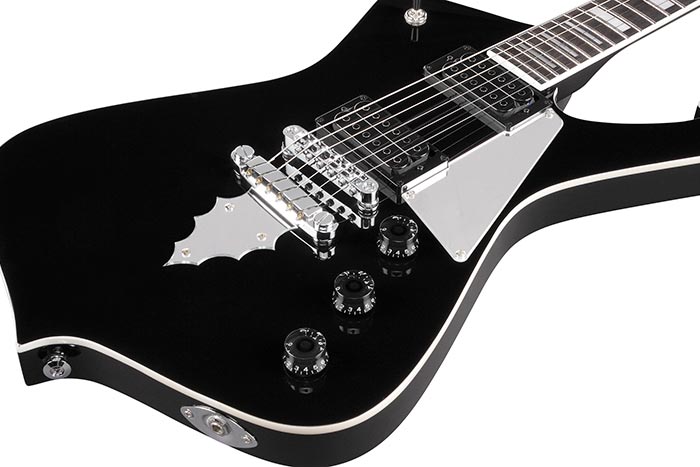

With the guitar held in the playing position, there are three knobs located along the lower edge of the body. From the end of the body towards the neck they are; tone, bridge volume, and neck volume knob. A three-way pickup selector switch is located towards the upper half of the guitar near the neck pickup.
-
OTHER FEATURES
- Gig bag included
Features
Maple neck
The Maple neck provides stability and bright tonal character.

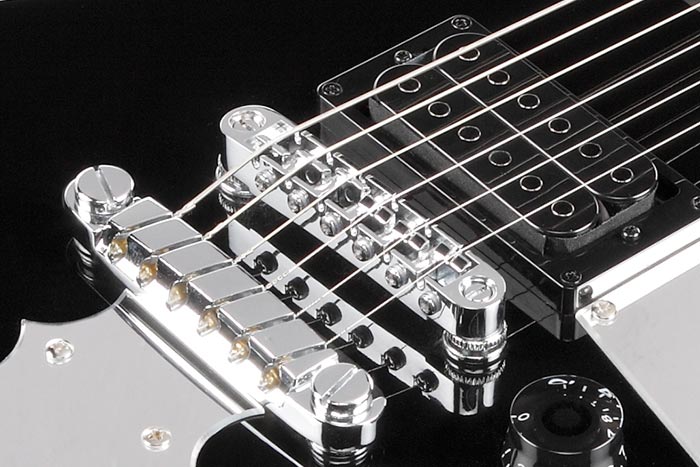

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability.
The low positioned saddles promise comfortable playability.
