PIA3761
SPEC
-
SPECS
- neck type
- PIA5pc Maple/Walnut neck
- top/back/body
- Alder body
- fretboard
- Rosewood fretboardPIA Blossom inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® UtoPIA™ (H) neck pickupPassive/Ceramic
- middle pickup
- DiMarzio® UtoPIA™ (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® UtoPIA™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is a five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch, and the volume knob also works as a high pass filter switch.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Gotoh® machine heads
- High-pass filter on volume control (push/pull)
- Luminlay side dots
- Hardshell case included
- Ultralite Tremolo Arm™ included
Features

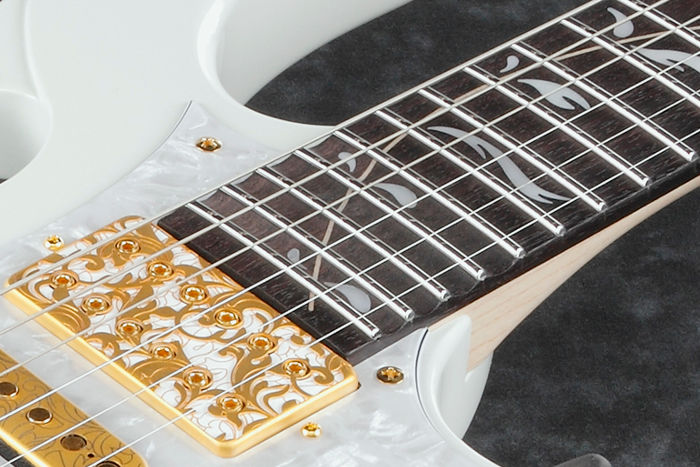

PIA Blossom inlay
The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai’s trademark style and artistic vision.
Petal Grip
Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It’s also meant to symbolize unity, companionship, and interpersonal bonds.
DiMarzio® UtoPIA™ pickups
Based on Steve's latest tonal preferences, DiMarzio® UtoPIA™ pickups are voiced for smoother highs, more scooped mids, and more pronounced low-end. The pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

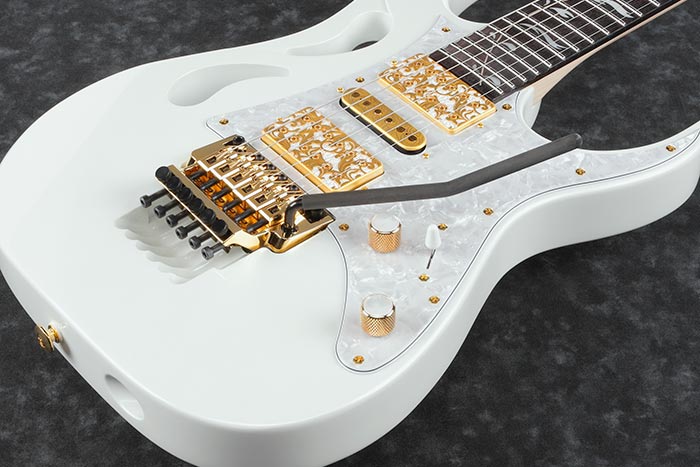

Edge Tremolo
The Edge tremolo bridge and groundbreaking Lion's Claw tremolo cavity allow for rapidly increasing and lowering pitch with dramatic range and an intense voice.

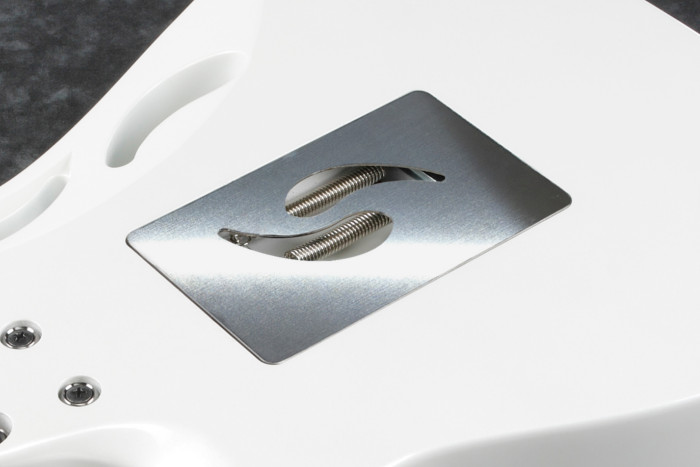

Magnetic Tremolo Cavity Plate
The tremolo cavity plate is held in place magnetically, allowing for quick removal and reinstallation when changing strings or adjusting the tremolo system.
