KIKO300
SPEC
-
SPECS
- neck type
- KIKOS-TECH WOOD Roasted Maple neck
- top/back/body
- Poplar Burl topAlder body
- fretboard
- Rosewood fretboardKIKO special inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Gotoh® T1502 bridge
- string space
- 10.5mm
- neck pickup
- DiMarzio® KIKO original (H) neck pickupPassive/Ceramic
- middle pickup
- DiMarzio® KIKO original (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® KIKO original (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Bone nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, the coil tap is on. When the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck side of neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge position, the center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in neck position, the neck side of the neck pickup is selected. When the switch is in between neck and center position, the neck side of the neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge pickup, the center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. On the lower edge of the body, towards the neck, is the five-way selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in neck position, coil tap is on. When the switch is in bridge position, coil tap is off.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Gotoh® MG-T locking machine heads
- Coil-tap switch
- Luminlay side dots
- Hardshell case included
Features

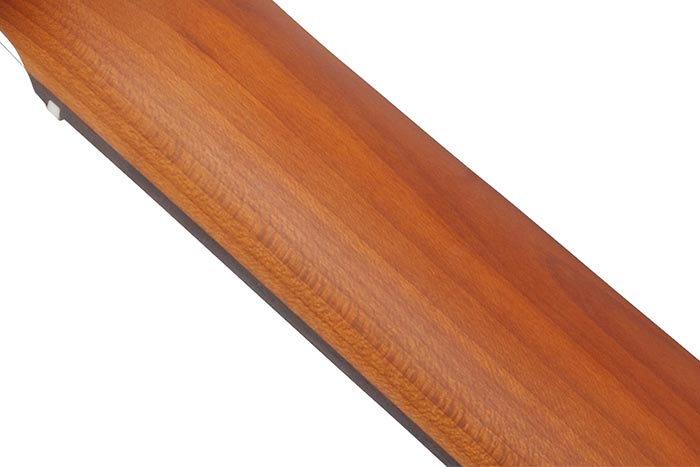

KIKO S-TECH WOOD Roasted Maple neck
The S-TECH special roasted treatment provides a superior attack, a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

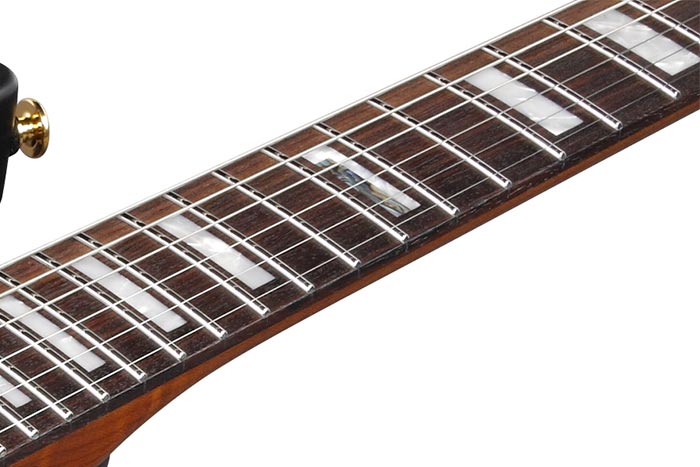

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

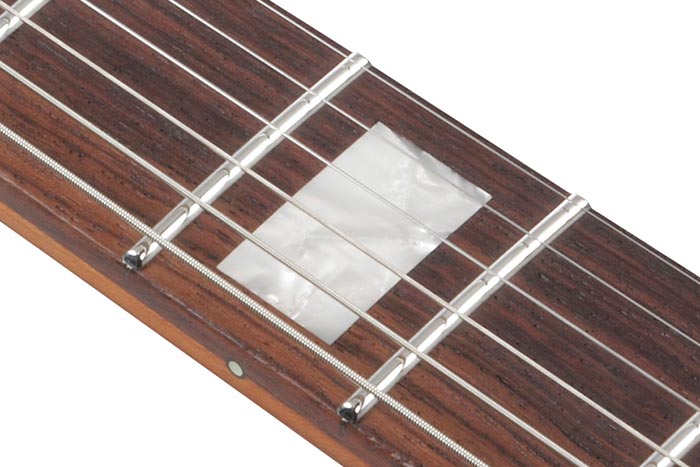

Jumbo Stainless Steel frets with Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.

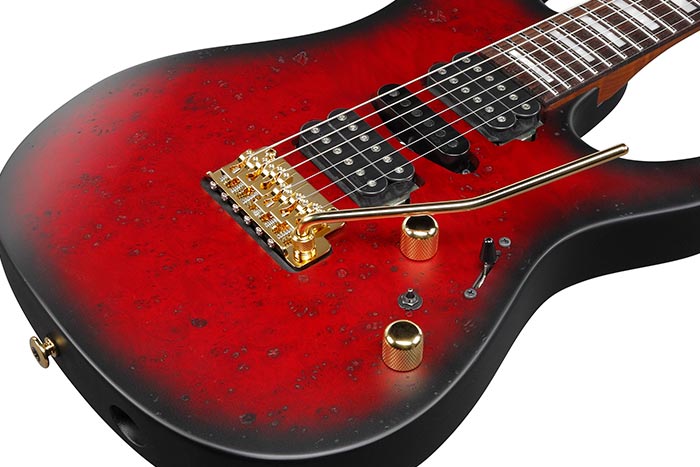

Poplar Burl top / Alder body
The Poplar Burl top featuring an exotic wood grain and the Alder body deliver a well-balanced bright tone, enriched resonance and sustain.

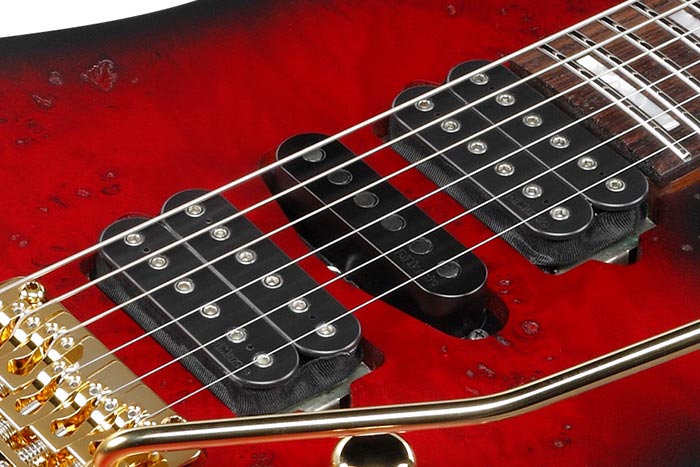

DiMarzio® KIKO original pickups
Kiko plays a wide range of music, from metal to jazz fusion, and the pickups were designed to reflect this range of sound. The neck and bridge humbuckers have medium output and a balanced sound in terms of frequency response. The single-coil middle pickup is more powerful and warmer-sounding than a typical vintage single-coil in order to balance well with the neck and bridge pickups.

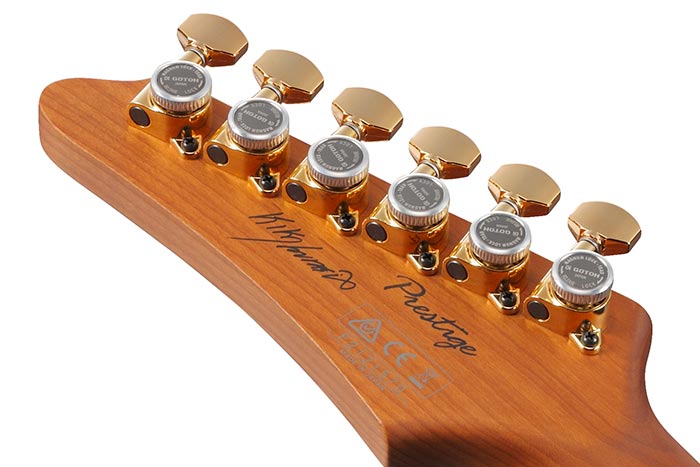

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

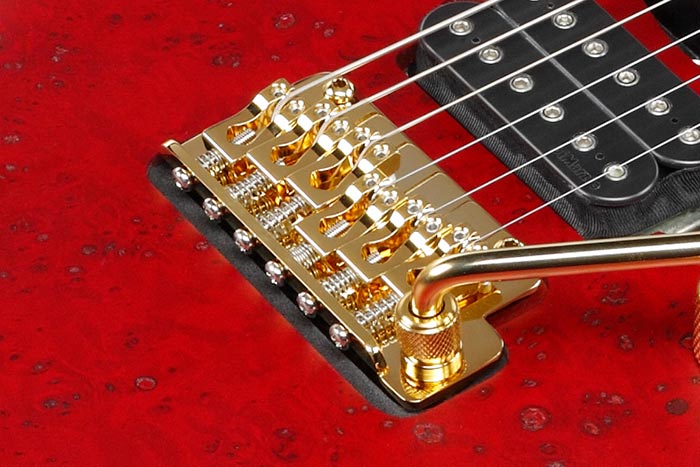

Gotoh® T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

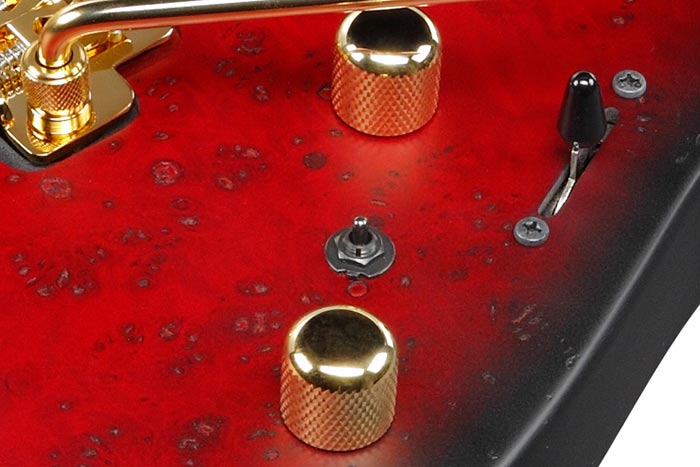

Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
