KIKO100
SPEC
-
SPECS
- neck type
- KIKO5pc Maple/Walnut neck
- top/back/body
- Flamed Maple topAlder body
- fretboard
- Rosewood fretboardKIKO special inlay
- fret
- Jumbo fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® KIKO original (H) neck pickupPassive/Ceramic
- middle pickup
- DiMarzio® KIKO original (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® KIKO original (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Locking nut
- hardware color
- Cosmo black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22.3mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
Coil tap is activated by pulling up on the volume knob. When the coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck side of the neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge position, the center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in neck position, the neck side of the neck pickup is selected. When the switch is in between neck and center position, the neck side of the neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge pickup, the center pickup and bridge side of the bridge pickup are selected. When the switch is in bridge position, the bridge side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and a five-way pickup selector switch along the lower edge of the guitar. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. The volume knob also functions as a coil tap switch. Pull on the knob to engage the coil tap.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Gotoh® machine heads
- Special Wiring switch on volume control (push/pull)
- Hardshell case included
Features

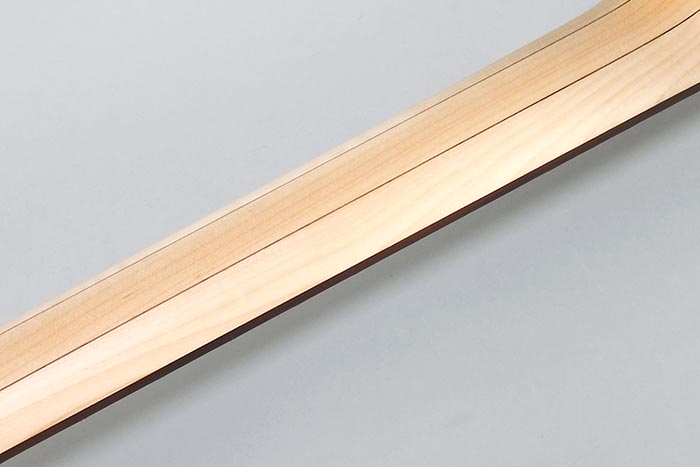

5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.

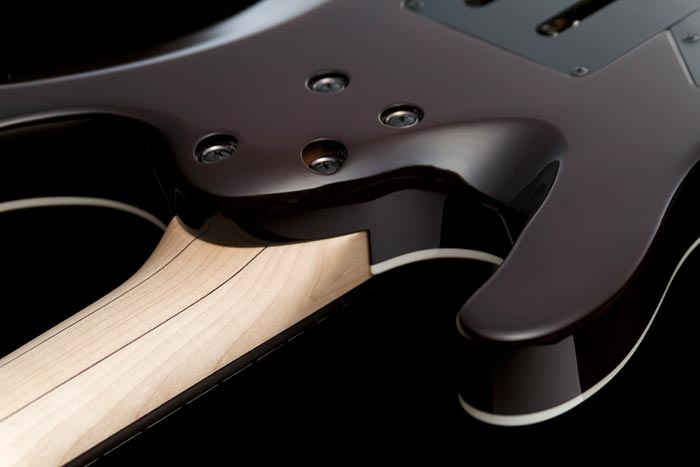

Deep and beveled lower horn scoop
It allows better and multidirectional high fret access.

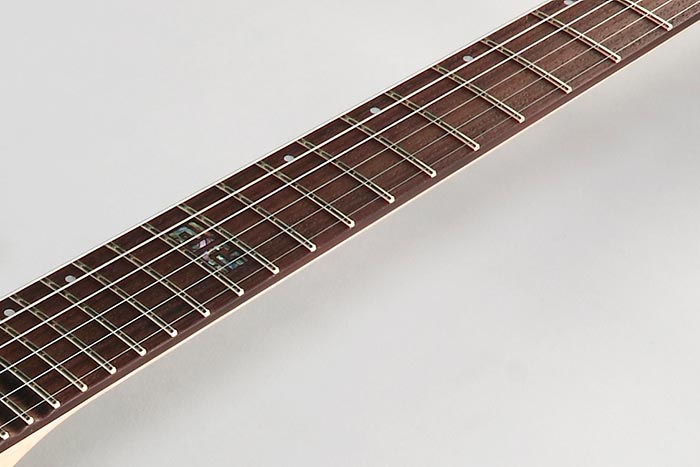

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

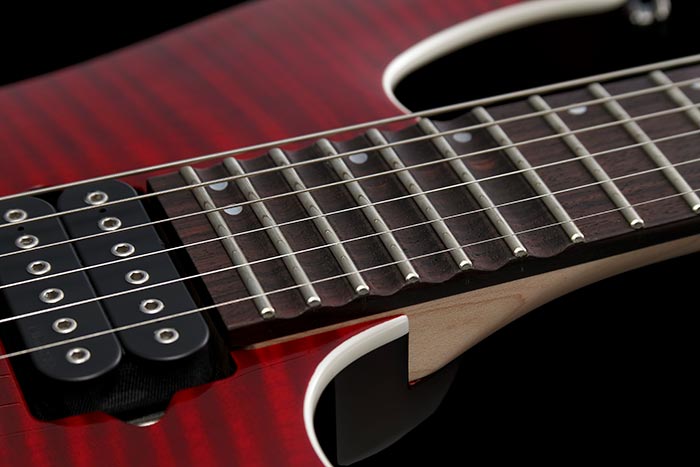

Scalloped Fingerboard on 19-24th frets
For easier high note bending and tapping.

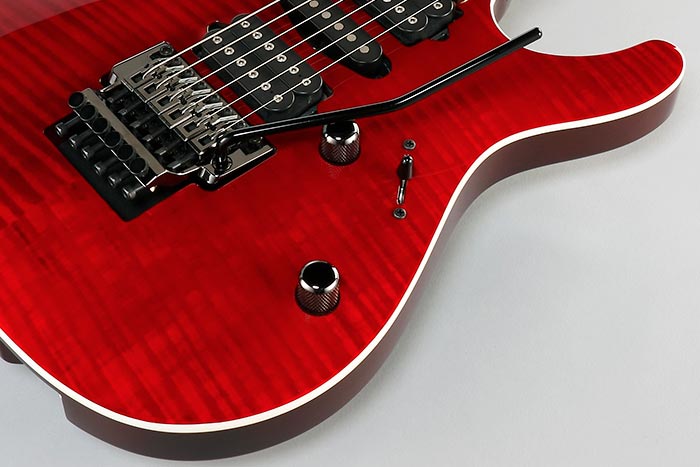

Flamed Maple top / Alder body
The Flamed Maple top displays a beautiful wood grain. The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

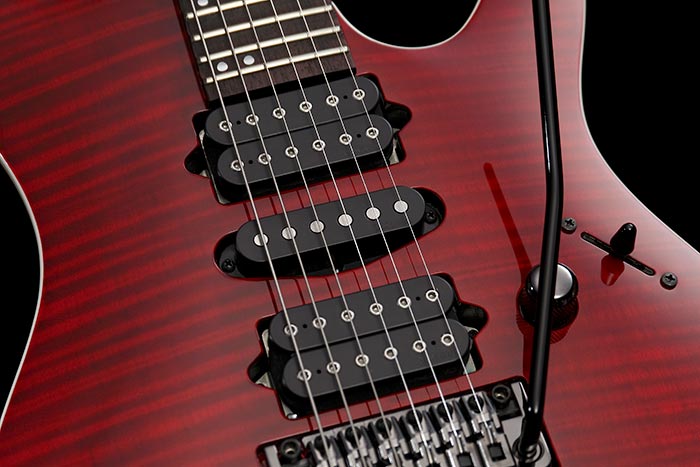

DiMarzio® KIKO original pickups
Kiko plays a wide range of music, from metal to jazz fusion, and the pickups were designed to reflect this range of sound. The neck and bridge humbuckers have medium output and a balanced sound in terms of frequency response. The single-coil middle pickup is more powerful and warmer-sounding than a typical vintage single-coil in order to balance well with the neck and bridge pickups.

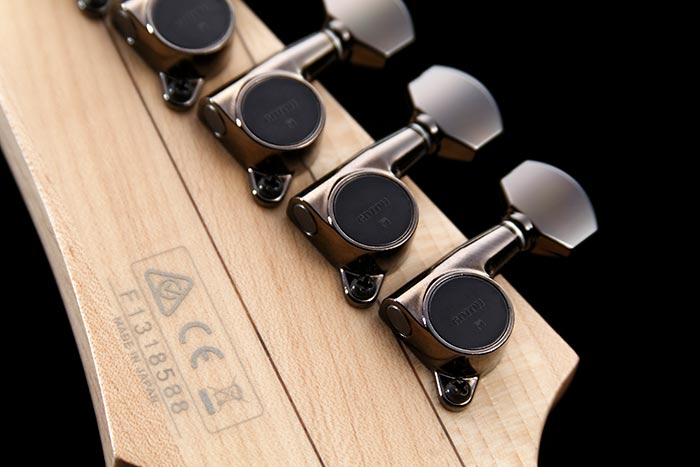

Gotoh® machine heads
Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

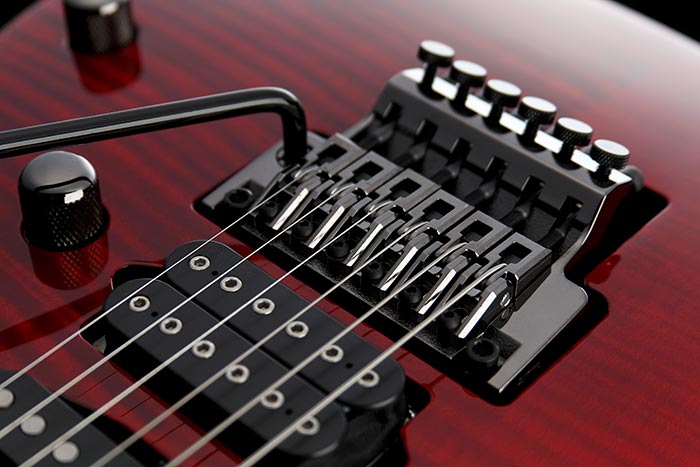

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.

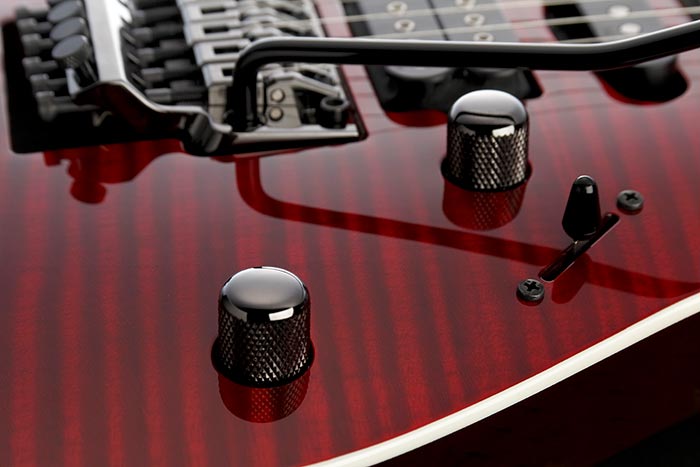

Special Wiring switch on volume control (push/pull)
The Special Wiring switch offers more versatility to your sound.

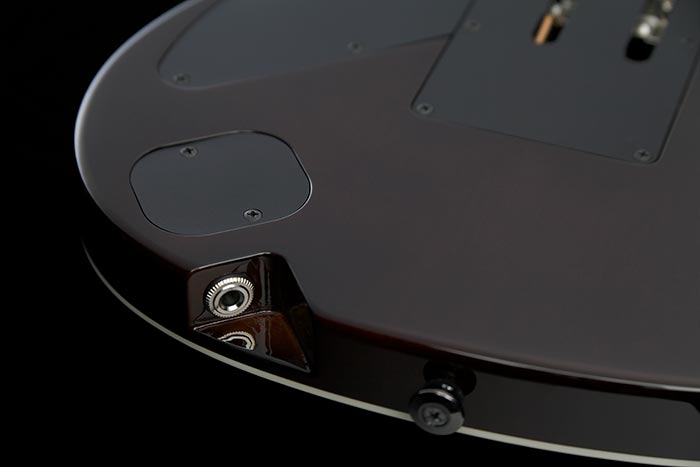

Tilt-in Jack
Tilt-positioned output jack on the guitar holds cables securely.
