JBM27
  • COLOR VARIATION:
JBM

SPEC

  • SPECS

    • neck type
    • Wizard II-73pc Maple/Bubinga neck
    • top/back/body
    • Maple topNyatoh body
    • fretboard
    • Rosewood fretboardJBM special inlay on 12th fret inlay
    • fret
    • Jumbo frets
    • number of frets
    • 24
    • bridge
    • Edge-Zero II-7 bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Titan 7 ™ (H) neck pickupPassive/Ceramic
    • bridge pickup
    • DiMarzio® Titan 7 ™ (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1D#,2A#,3F#,4C#,5G#,6D#,7G#
    • strings
    • D'Addario® EXL116+.064
    • string gauge
    • .011/.014/.018/.030/.042/.052/.064
    • nut
    • Locking nut
    • hardware color
    • Black (Gold machine heads)
  • NECK DIMENSIONS

      • Scale :
      • 673mm/26.5"
      • a : Width
      • 48mm at NUT
      • b : Width
      • 68mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 21mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JBM27's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    JBM27's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a five-way pickup selector switch close to the edge of the body. The volume knob is located near the end of the body.

  • OTHER FEATURES

    • Gotoh® MG-T locking machine heads

Features

Rosewood Fretboard w/JBM Special Inlay

Rosewood Fretboard w/JBM Special Inlay

Rosewood provides a well-balanced solid tone with a focused mid range.

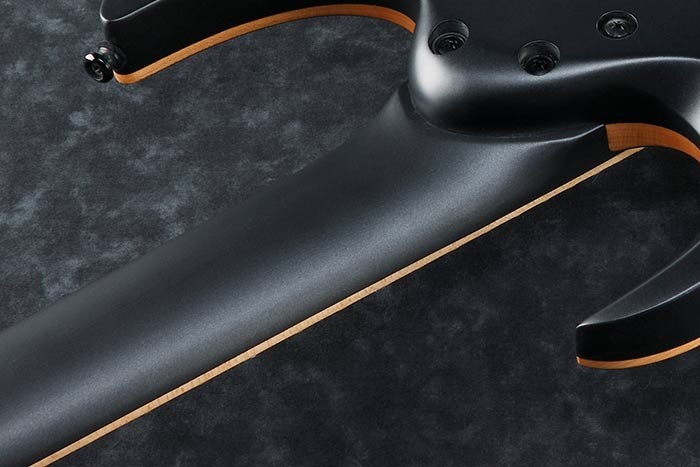

Wizard II 3pc Maple/Bubinga neck

Wizard II 3pc Maple/Bubinga neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

DiMarzio® Titan™ pickups

DiMarzio® Titan™ pickups

Jake's signature DiMarzio® Titan™ pickups provide the perfect combination of tight and aggressive.

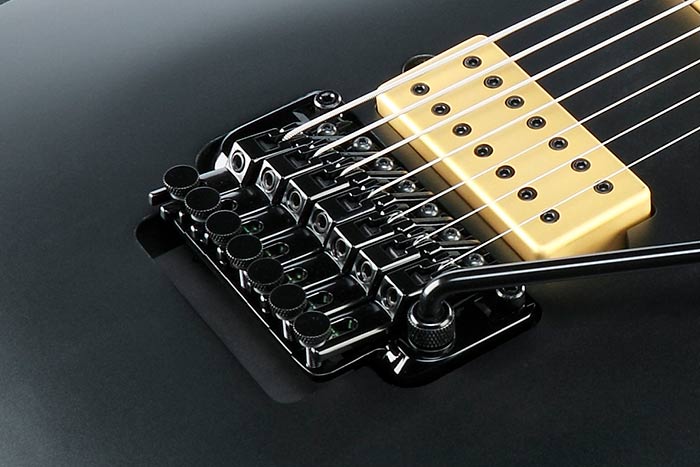

Edge-Zero II tremolo

Edge-Zero II tremolo

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Gotoh MG-T locking machine heads

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
