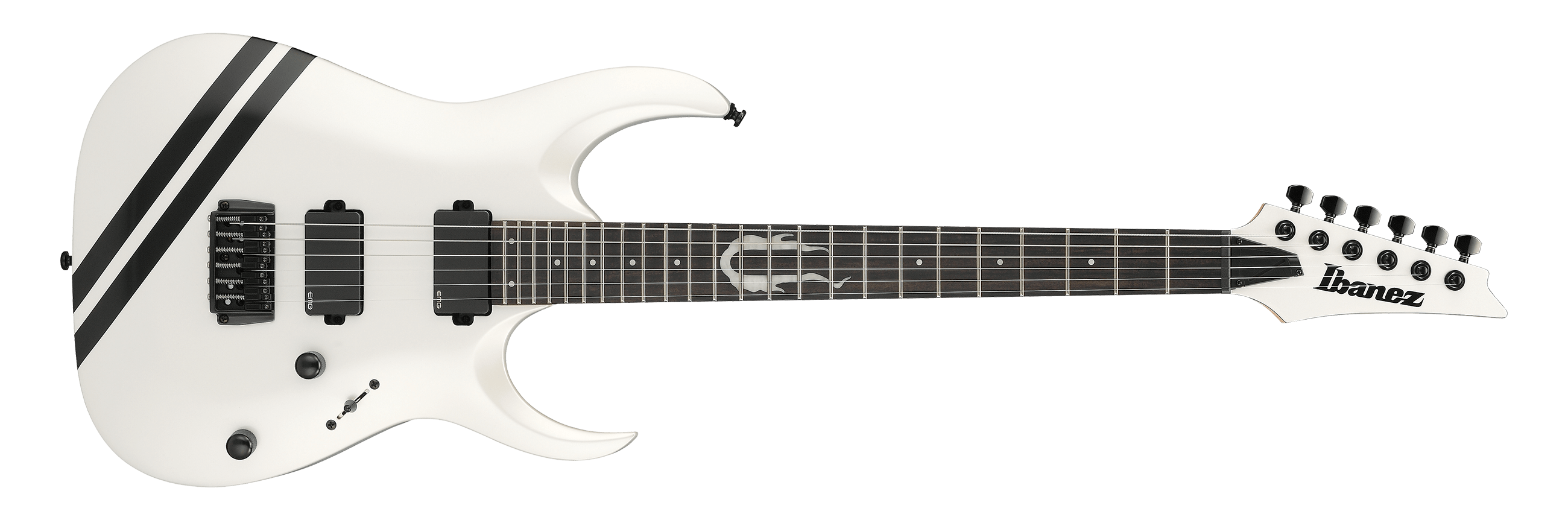

JBBM40
SPEC
-
SPECS
- neck type
- JBBM3pc Maple/Bubinga neck
- top/back/body
- Okoume body
- fretboard
- Ebony fretboardJBBM special inlay on 9-13th fret
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- neck pickup
- EMG 85 (H) neck pickupActive/Alnico
- bridge pickup
- EMG 81 (H) bridge pickupActive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6C
- strings
- D'Addario® EXL140
- string gauge
- .010/.013/.017/.030/.042/.052
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

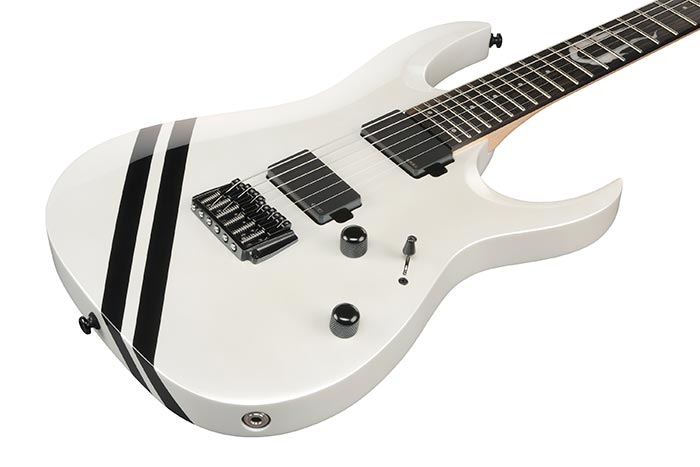

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the three-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features

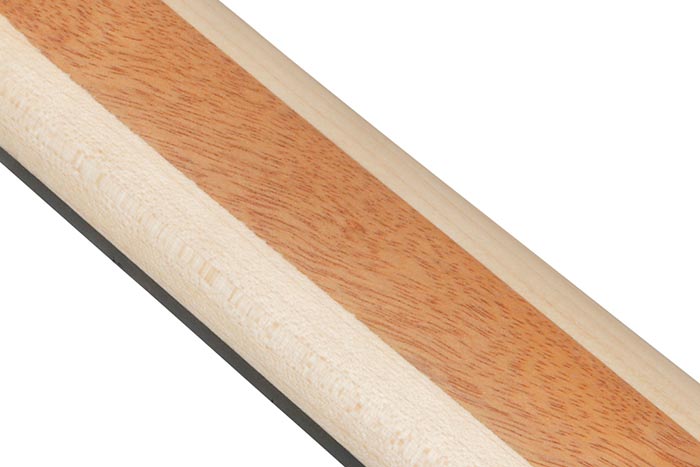

3pc Maple/Bubinga neck
The Bubinga stripe provides stability and longer sustain.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

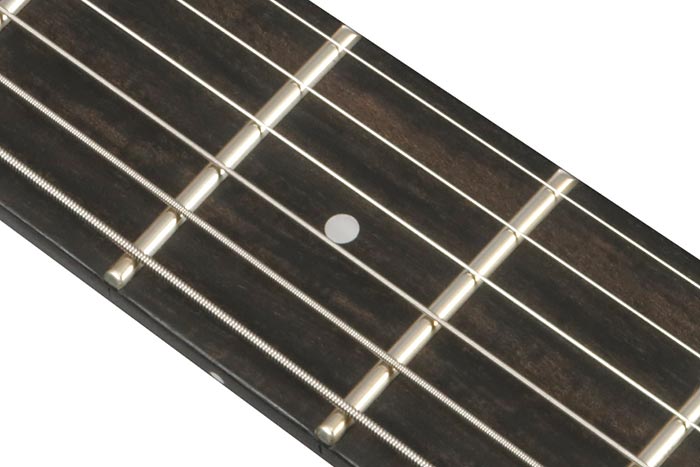

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.
Okoume body
The Okoume body provides a bright and solid sound.

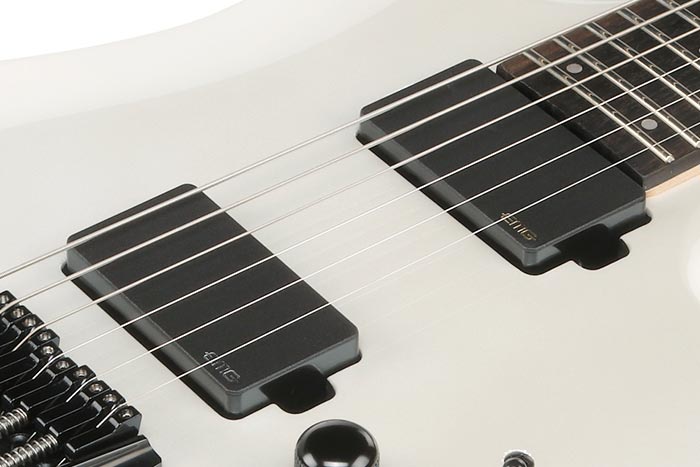

EMG® 85/81 pickups
The EMG® 85 neck pickup features an alnico magnet and delivers classic and rich dynamics. The EMG® 81 bridge pickup outputs detailed intensity, incredible amounts of high end cut and fluid sustain.

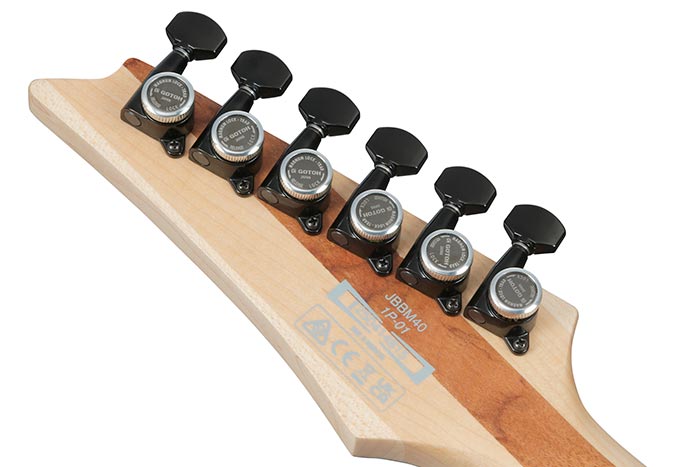

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

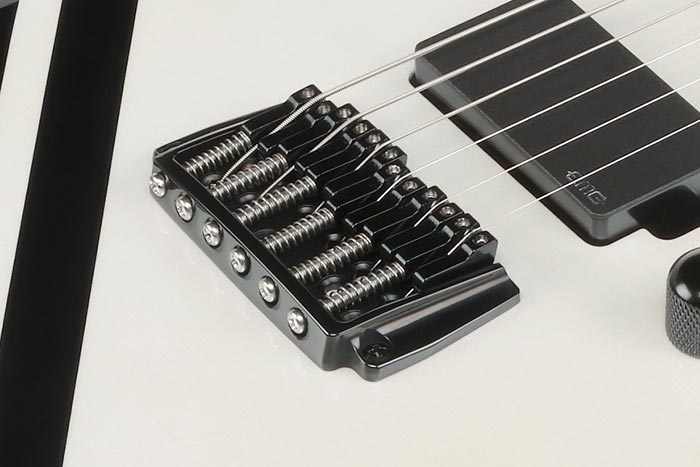

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.
