GVB1006-AM
  • AM : Amber
  • COLOR VARIATION:
SHARE:
GVB

SPEC

  • SPECS

    • neck type
    • GVB3pc Maple/Wenge neck
    • top/back/body
    • Figured Maple topAlder body
    • fretboard
    • RosewoodAbalone oval inlay
    • fret
    • Medium fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • MR4 bridge
    • string space
    • 14mm
    • neck pickup
    • Bartolini® P45C-B neck pickupPassive
    • bridge pickup
    • Bartolini® P45C-T bridge pickupPassive
    • equaliser
    • Aguilar® OBP-3 preamp w/Mid frequency selector (push/pull)
    • factory tuning
    • 1C, 2G, 3D, 4A, 5E, 6B
    • strings
    • Dunlop DBSBN40100 + .030/.120
    • string gauge
    • .030/.040/.060/.080/.100/.120
    • nut
    • Graph Tech® BLACK TUSQ XL® nut
    • hardware color
    • Cosmo black
  • NECK DIMENSIONS

      • Scale :
      • 864mm/34"
      • a : Width
      • 53mm at NUT
      • b : Width
      • 72.3mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 19.5mm at 12F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • CONTROLS

    GVB1006's control diagram

    DESCRIPTION

    There are two groups of knobs on this bass. With the bass held in the playing position, there are three smaller knobs closest to the lower edge of the body. From the lower bout towards the neck they are treble boost/cut, mid boost/cut, and bass boost/cut. The other group of knobs are closer to bridge. The knob closest to the input jack is the pickup balancer, and the knob closest to the neck is the volume knob. When the mid-range knob is down, the mid boost peak is at 800hz, when the knob is pulled up, the mid boost peak is at 400hz.

  • FREQUENCY RESPONSE

    GVB1006's EQ curve diagram

    DESCRIPTION

    The bass boost/cut frequency curve has a peak at about 20 Hz, the variable width becomes smaller as it goes to the high range, and the variable width becomes zero at around 3000 Hz. The variable range of the peak frequency is approximately ±20 dB. The treble boost/cut frequency curve draws a curve with a peak at around 10000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±20 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero around 20 Hz and around 10,000 Hz. The frequency peak can be switched between 800 and 400 Hz. The variable range of the peak frequency is approximately ±15 dB.

  • OTHER FEATURES

    • Hardshell case included

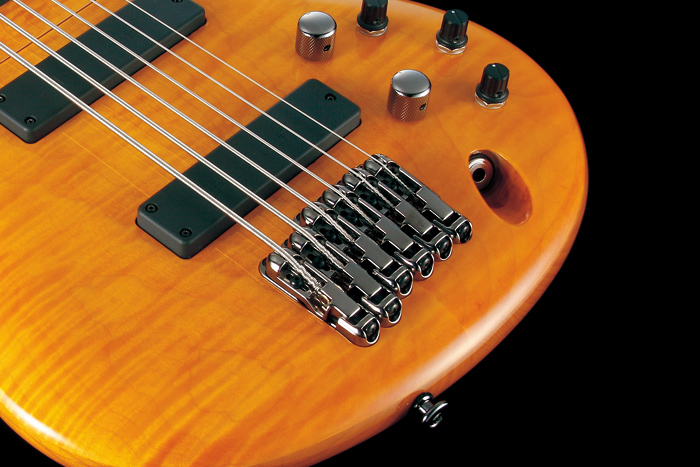

Features

Figured Maple body

Figured Maple body

The GVB1006's beautiful selected Figured Maple top, on a comfortably arched Alder body.

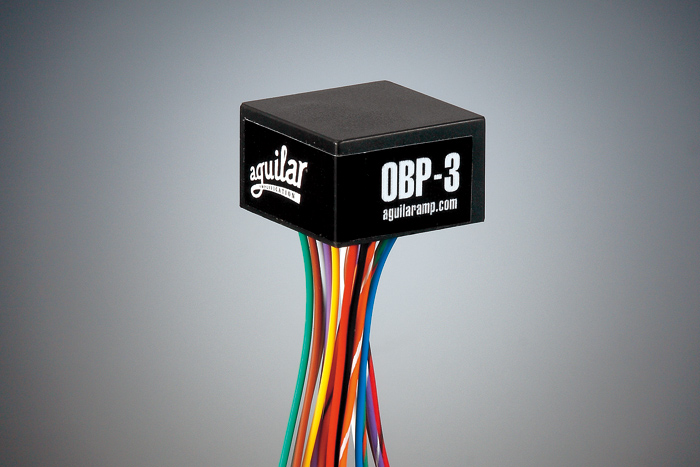

AGUILAR OBP-3 EQ

AGUILAR® OBP-3 EQ

GVB1006 features the Aguilar OBP-3 3-band eq, with ultra flexibility.
It provides ±18dB of cut/boost at 40Hz, ±16dB of cut/boost at either 400Hz or 800Hz and ±16dB of treble cut/boost at 6.5 kHz. The mid frequency can be set to 400Hz or 800Hz by push/pull switch, both considered very important and useful frequencies for the bass.

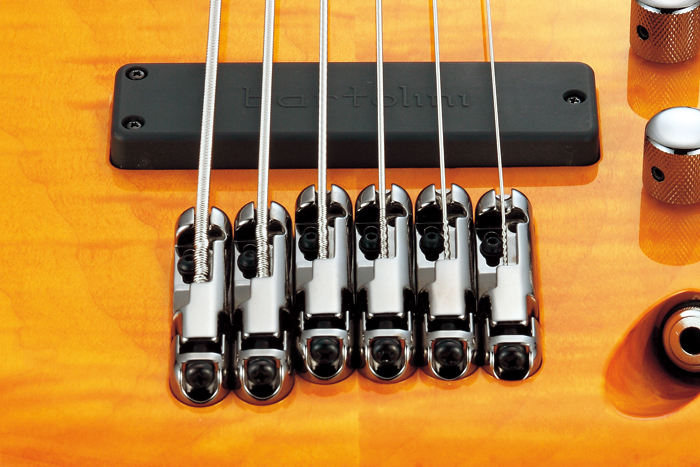

MR-4 bridge

MR-4 bridge

The Mono-Rail Bridge is the ultimate in string isolation for bass. Each saddle is independently and securely locked down to the body for maximum vibration transfer and no interference. One screw controls the height of each saddle for easy adjustment.

14mm String Spacing

14mm String Spacing

GVB1006 features special 14mm string spacing, compared to our usual 16.5mm spacing. This narrow spacing allows for playing chords with much more ease, a staple of Gerald's playing style.
