- neck type

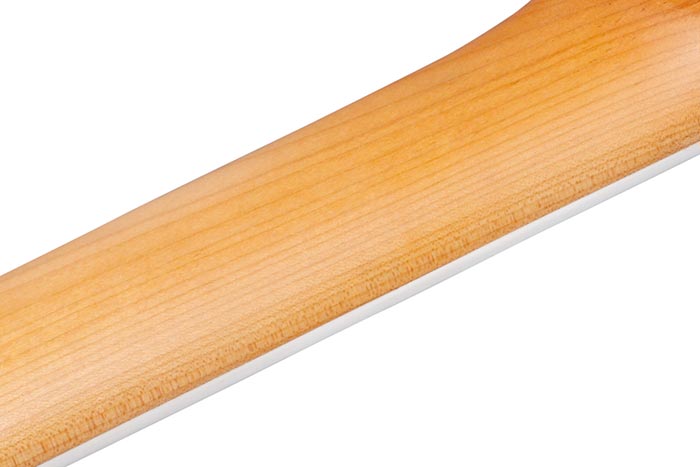

- GRGRoasted Maple neck
- Poplar Burl Art Grain topOkoume body
- Bound Purpleheart fretboardWhite Sharktooth inlay
- Jumbo frets
- number of frets
- T106 bridge
- string space
- neck pickup
- Classic Elite (H) neck pickupPassive/Ceramic
- bridge pickup
- Classic Elite (H) bridge pickupPassive/Ceramic
- factory tuning
- string gauge
- hardware color
- Scale :
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
Classic Elite pickups
Classic Elite pickups offer rich, nuanced tone with fat low-end.
T106 tremolo bridge
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
