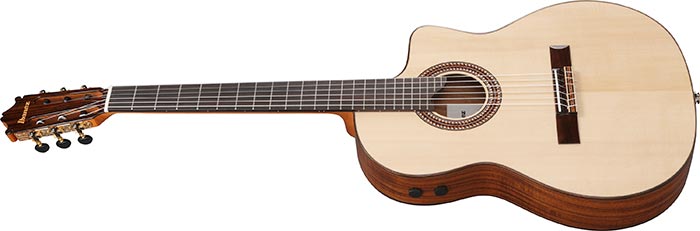

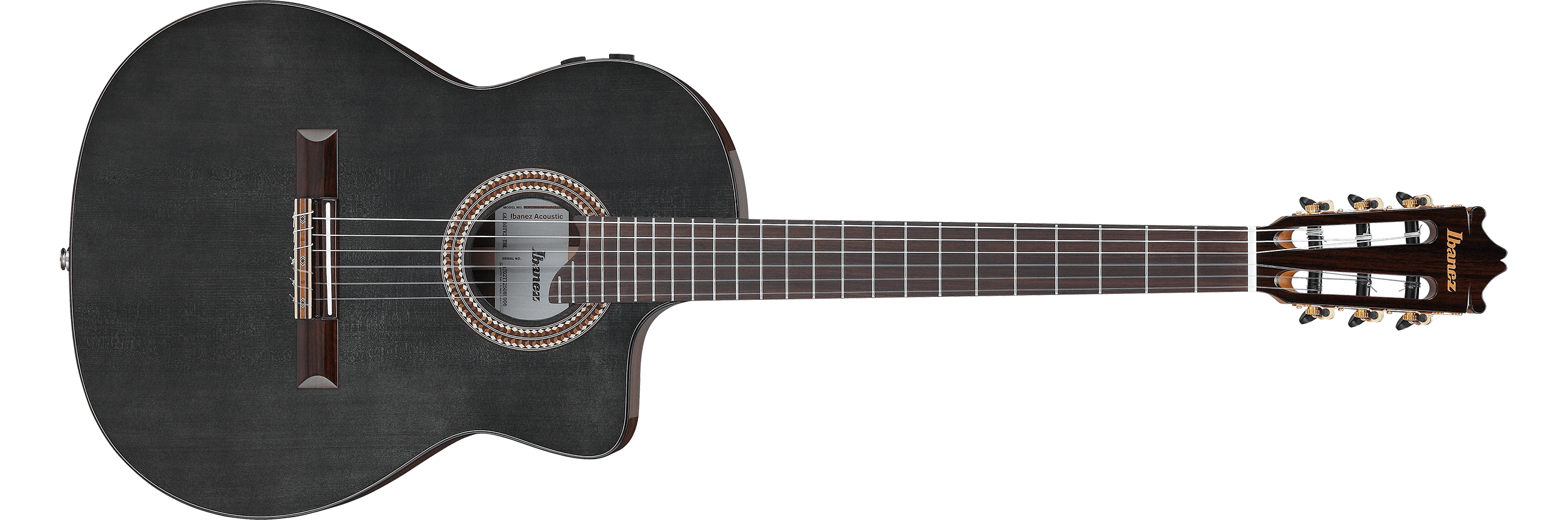

GA360TCE
- NT : Natural High Gloss

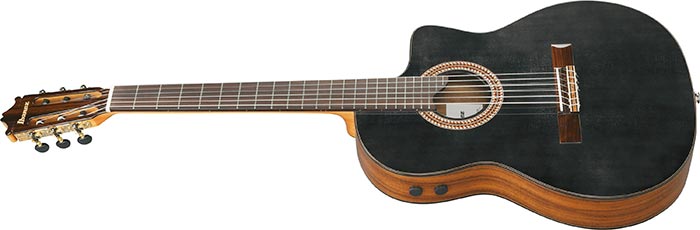

- TBK : Transparent Black High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Thinline Cutaway Classical body
- top
- Solid German Spruce top
- back & sides
- Acacia back & Acacia sides
- neck
- GAOkoume neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood bridge
- body binding
- Rosewood body binding
- top board purfling
- Wooden purfling
- soundhole rosette
- Classical Mosaic Design
- tuning machine
- Gold Classical tuners (14:1 gear ratio)
- nut material
- Bone
- number of frets
- 24
- saddle material
- Compensated Bone
- strings
- Savarez Nylon strings 500CJ
- string gauge
- .030/.034/.041/.029/.034/.044
- string space
- 11.6mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle & Contact
- preamp
- Ibanez Custom Electronics w/Undersaddle Pickup Volume, Contact Pickup Volume
- output jack
- Dual Outputs (Mono Out / Stereo Out)
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 46mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 22.5mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/16"
- b : Width
- 14 1/2"
- c : Max Depth
- 2 15/16"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The knob of the neck side is the volume for the magnetic pickup. The knob of the bridge side is the volume knob for the contact pickup. All knobs turn to the left for minimum and to the right for maximum.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
- Extended Fretboard
Features
Okoume Neck
The Okoume neck provides greater playing comfort.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

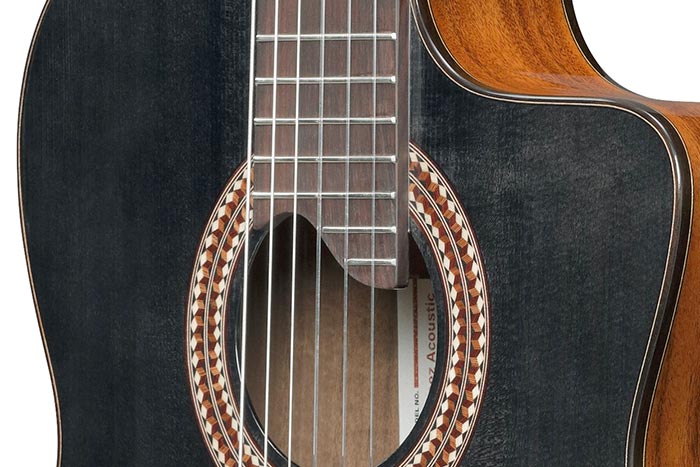

Extended Fretboard
An extended fretboard expands creative potential by offering players a wider range of notes.

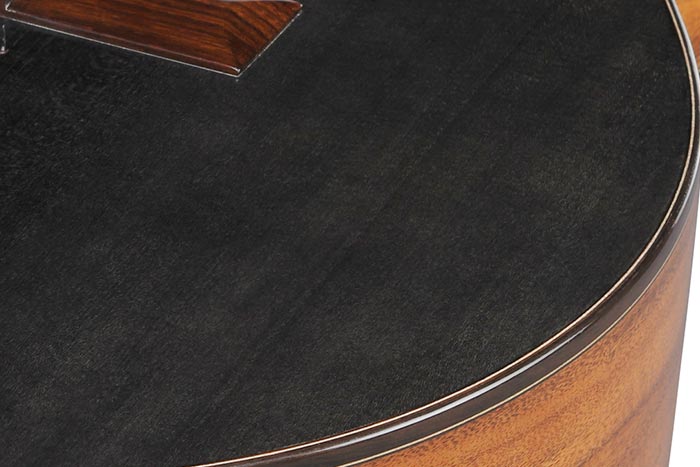

Solid German Spruce top
Solid German Spruce top offers sensitive tones and pristine clarity.

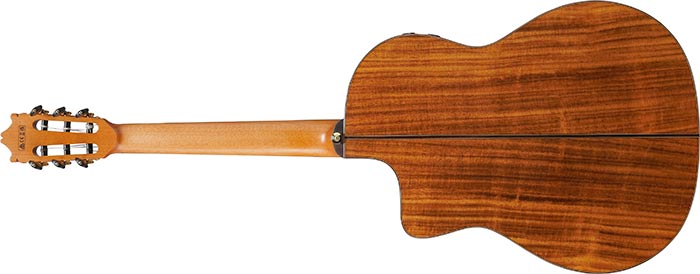

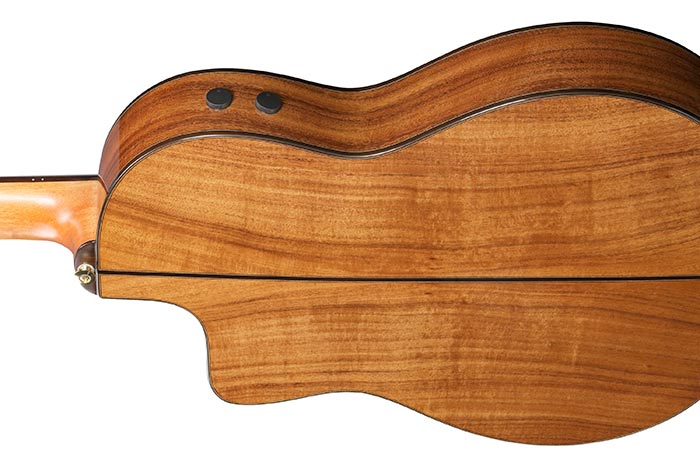

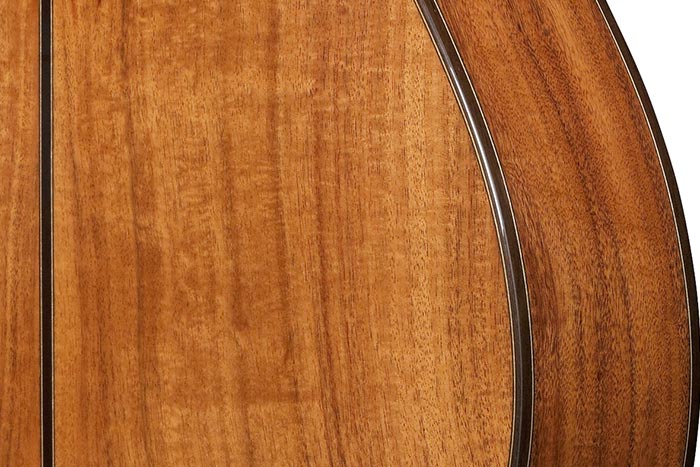

Acacia back and sides
Acacia back and sides feature a warm mid-range and a dry, bright high-end.
Ibanez Custom Electronics w/Undersaddle Pickup Volume and Contact Pickup Volume
Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the two pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

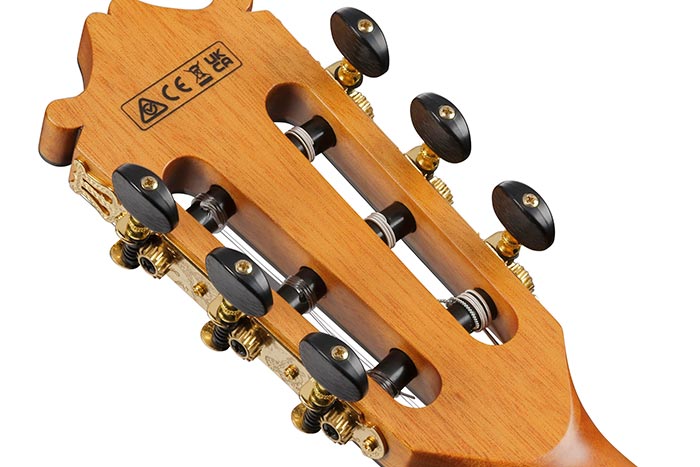

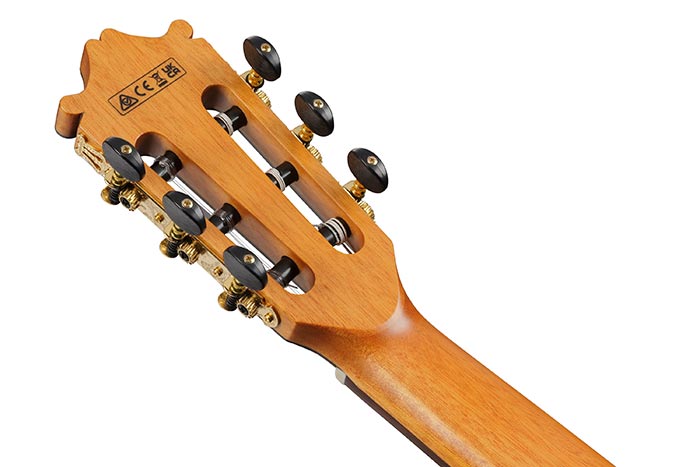

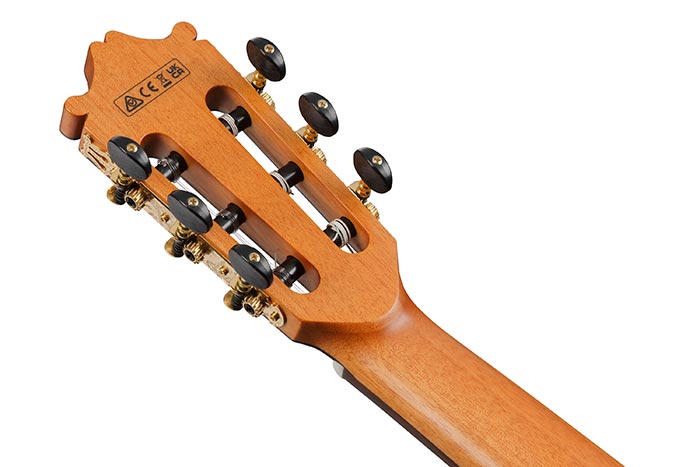

Gold Classical tuners (14:1 gear ratio)

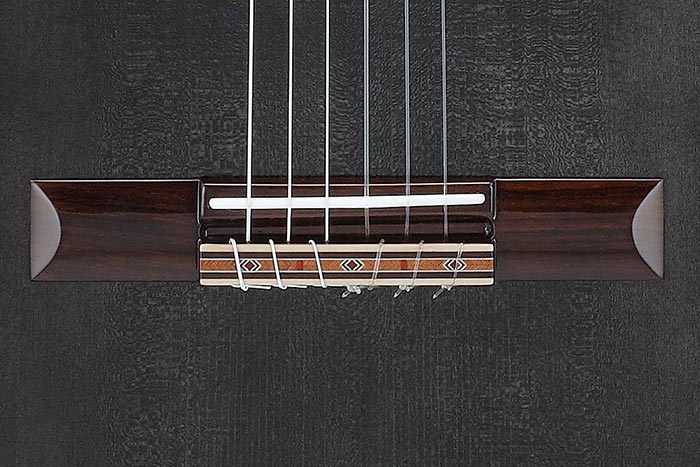

Rosewood bridge
The Rosewood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

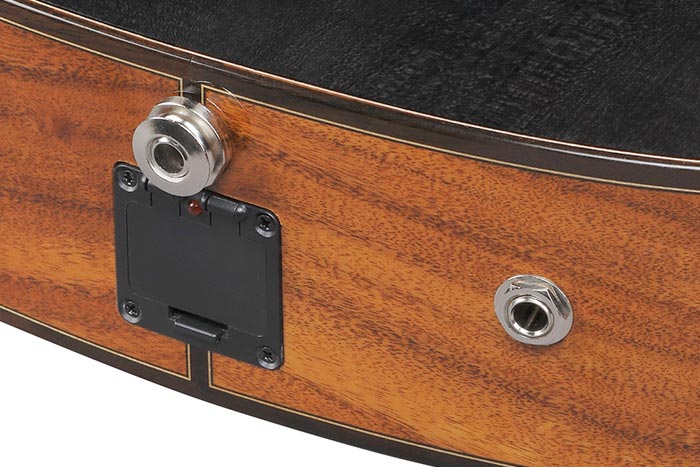

Dual Outputs (Undersaddle/Contact pickup outputs)
Plugged into the endpin jack only : Undersaddle pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack :
Endpin Jack - Under-saddle pickup output
Open Jack - Contact pickup output
46mm width nut / 400mmR fretboard radius
The combination of a narrow 46mm width nut and 400mmR fretboard radius offers easy fingering.

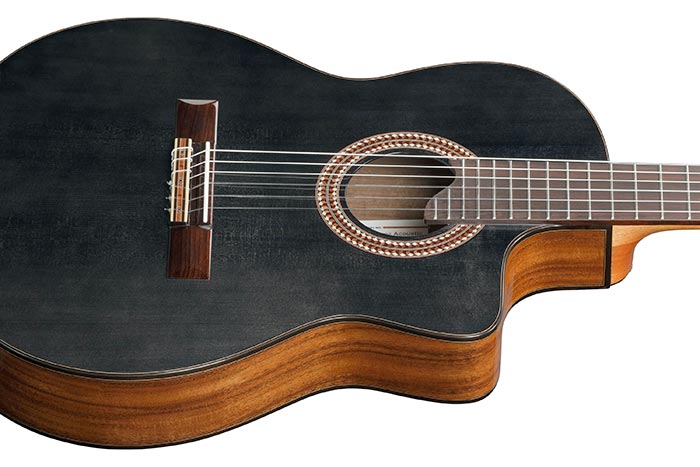

Thinline Cutaway Classical body

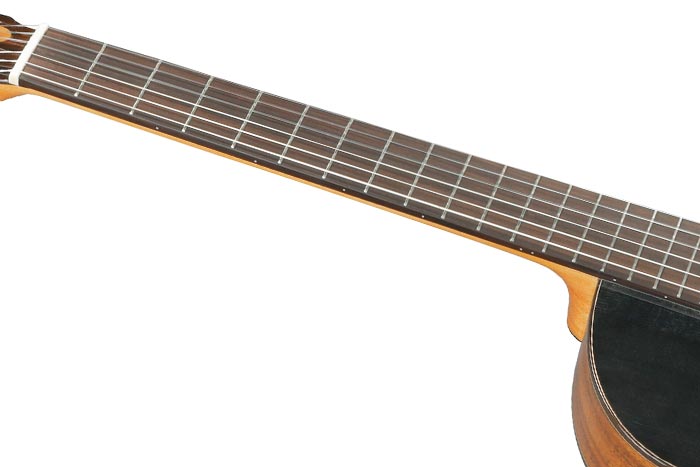

14F neck joint
