GA3007CE
- NT : Natural High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Cutaway Classical body
- top
- Solid German Spruce top
- back & sides
- African Mahogany back & African Mahogany sides
- neck
- GAOkoume neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood bridge
- body binding
- African Mahogany body binding
- top board purfling
- Wooden purfling
- soundhole rosette
- Classical Mosaic Design
- tuning machine
- Gold Classical tuners (14:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Bone
- strings
- Savarez Nylon strings 500CJ + 5207R
- string gauge
- .030/.034/.041/.029/.034/.044/.050
- string space
- 11.6mm
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- pickup
- Fishman® S-Core
- preamp
- Ibanez AEQ-SP2 preamp w/Onboard tuner
- output jack
- Balanced XLR & 1/4" outputs
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 59mm at NUT
- b : Width
- 68mm at 14F
- c : Thickness
- 22mm at 1F
- d : Thickness
- 24mm at 7F
- Radius :
- Flat
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/16"
- b : Width
- 14 1/2"
- c : Max Depth
- 3 15/16"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-

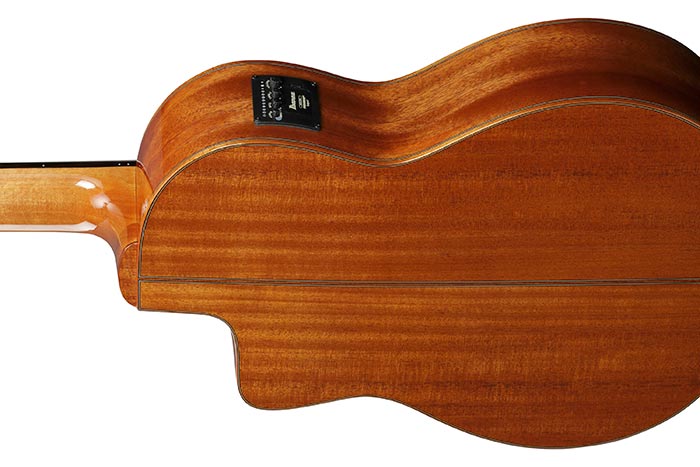

PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
Features

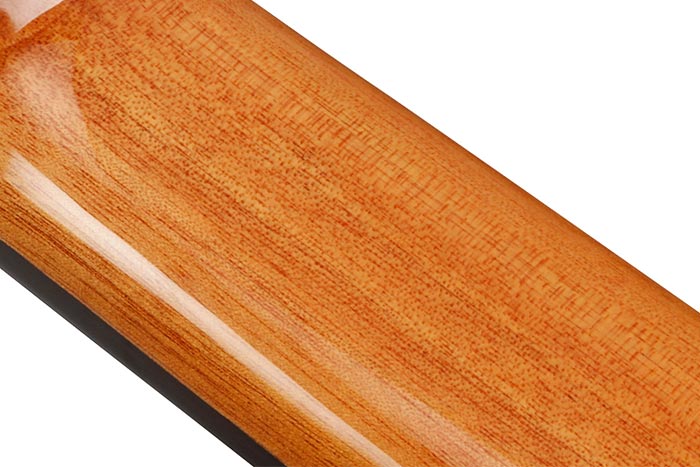

Okoume Neck
The Okoume neck provides greater playing comfort.

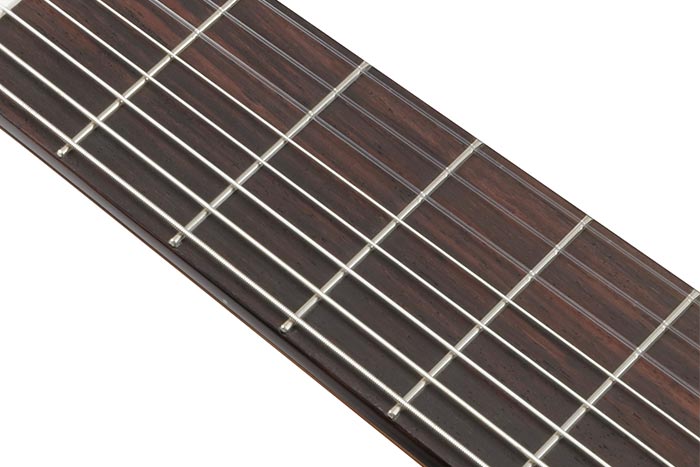

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

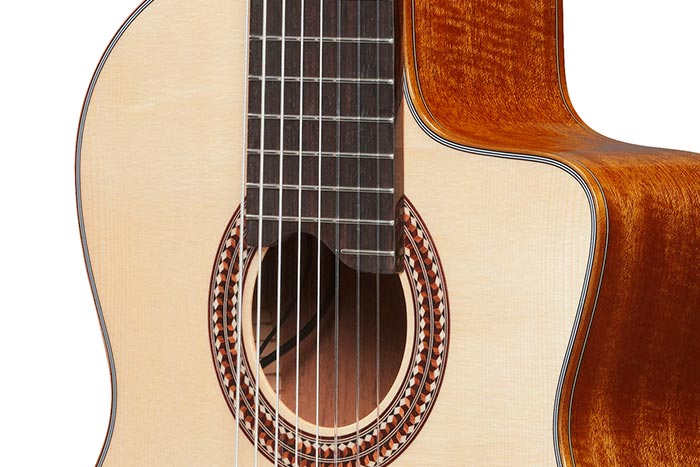

Extended Fretboard
An extended fretboard expands creative potential by offering players a wider range of notes.

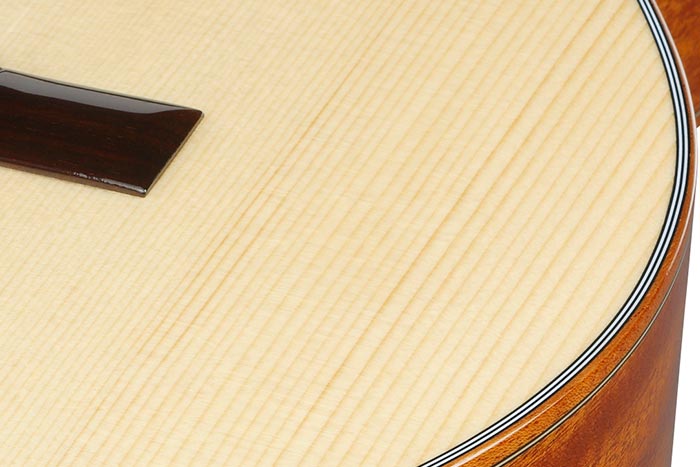

Solid German Spruce top
Solid German Spruce top offers sensitive tones and pristine clarity.

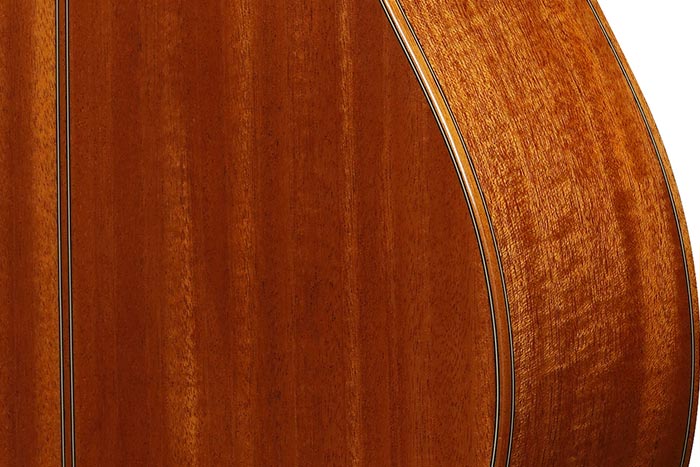

African Mahogany back and sides
The African Mahogany back and sides offer full-bodied warm mid range.

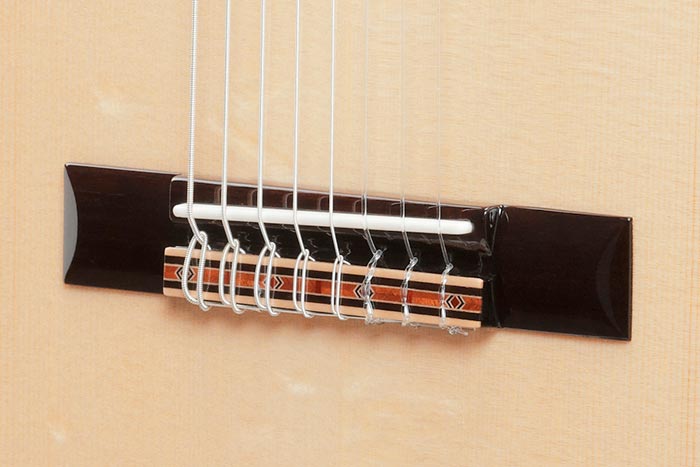

Fishman® S-Core pickup
The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.

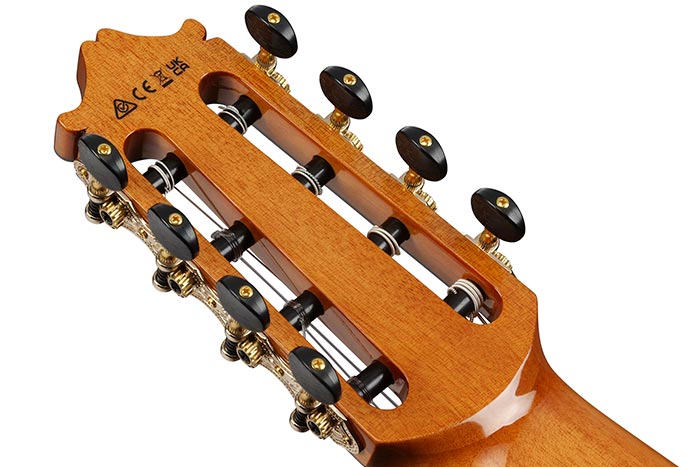

Gold Classical tuners (14:1 gear ratio)

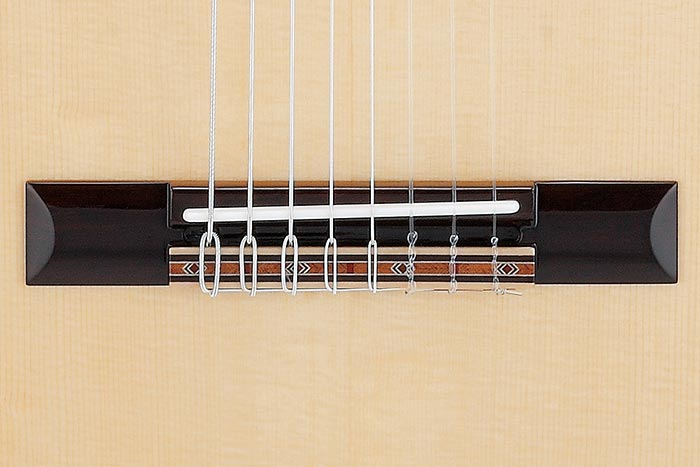

Rosewood bridge
The Rosewood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

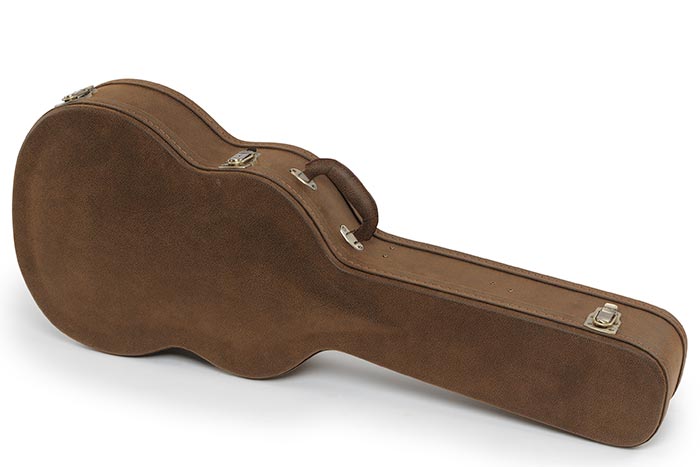

Hardshell case included
Ibanez Hardshell case gives extreme protection for your beloved instrument.
Ibanez AEQ-SP2 preamp w/Onboard tuner
The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation
