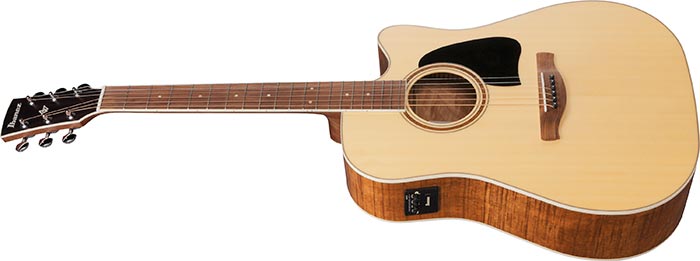

AW417CE
- OPS : Open Pore Semi-Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Cutaway Dreadnought body
- top
- Solid Sitka Spruce top
- back & sides
- Flamed Okoume back & Flamed Okoume sides
- neck
- AWNyatoh neck
- fretboard
- Pau Ferro fretboard
- bridge
- Pau Ferro bridge
- top board purfling
- Wooden Multi purfling
- inlay
- Maple dot inlay
- soundhole rosette
- Wooden Multi
- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez AEQ-TP2 preamp w/Onboard tuner
- output jack
- Balanced XLR & 1/4" outputs
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 48mm at NUT
- b : Width
- 60mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20"
- b : Width
- 15 3/4"
- c : Max Depth
- 5"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.
Flamed Okoume Back & Sides
The attractive, Flamed Okoume back and sides offer present and rich midrange tones.
Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Pau Ferro bridge
The Pau Ferro bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Pau Ferro fretboard
Pau Ferro produces a well-balanced tonal character from low to high end.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
