AEWC621
- BOT : Black Out
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AEWC body
- top
- Spruce top
- back & sides
- Sapele back & Sapele sides
- neck
- Comfort GripNyatoh neck
- fretboard
- Macassar Ebony fretboard
- bridge
- Macassar Ebony AEWC original top loading bridge
- tuning machine
- Black Die-cast tuners (18:1 gear ratio)
- number of frets
- 20
- strings
- Ibanez IACS6C
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Fishman® S-Core
- preamp
- Ibanez AEQ-SP2 preamp w/Onboard tuner
- output jack
- Balanced XLR & 1/4" outputs
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 634mm/25"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 15"
- c : Max Depth
- 4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
Features
Comfort Grip Nyatoh neck
The Comfort Grip Nyatoh Neck contour provides superior playability.

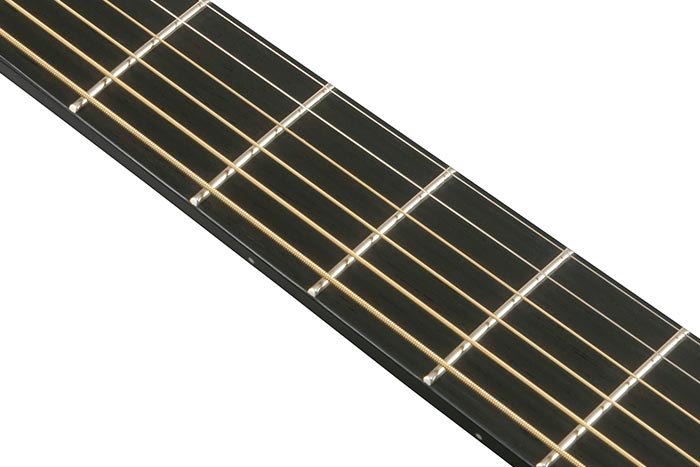

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Fishman® S-Core pickup
The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.
Ibanez AEQ-SP2 preamp w/Onboard tuner
The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation
Macassar Ebony top loading bridge
Macassar Ebony top loading bridge offers fast and easy string changing without bridge pins.
