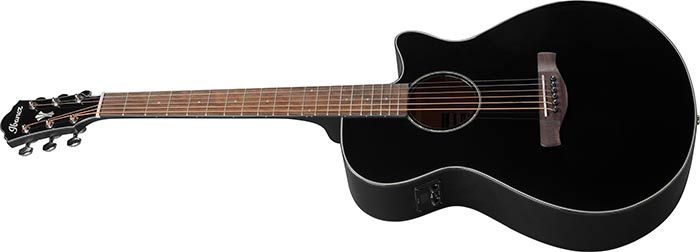

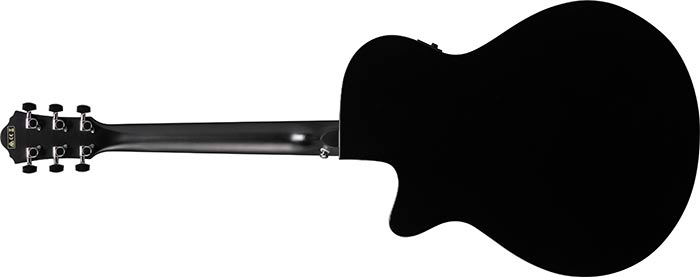

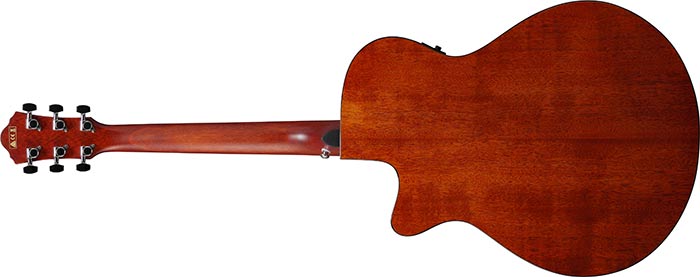

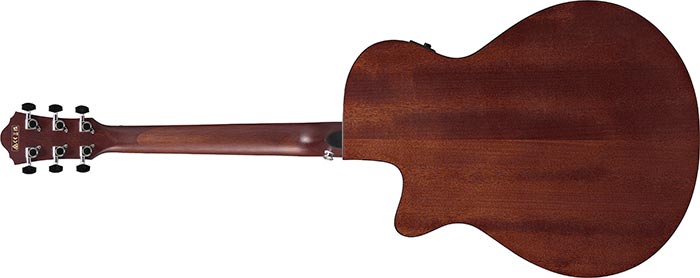

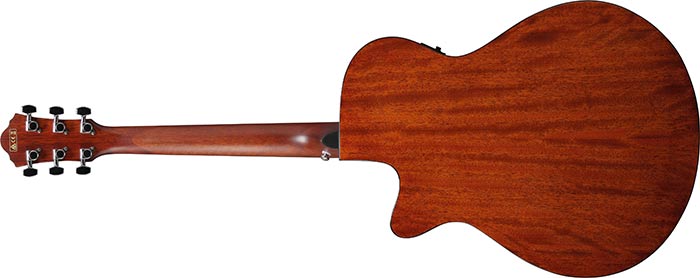

AEG50
SPEC
-
SPECS
- body shape
- AEG body
- top
- Spruce top
- back & sides
- Okoume back & Okoume sides
- neck
- AEGNyatoh neck
- fretboard
- Laurel fretboard
- bridge
- Laurel bridge
- inlay
- White dot inlay
- soundhole rosette
- Acrylic

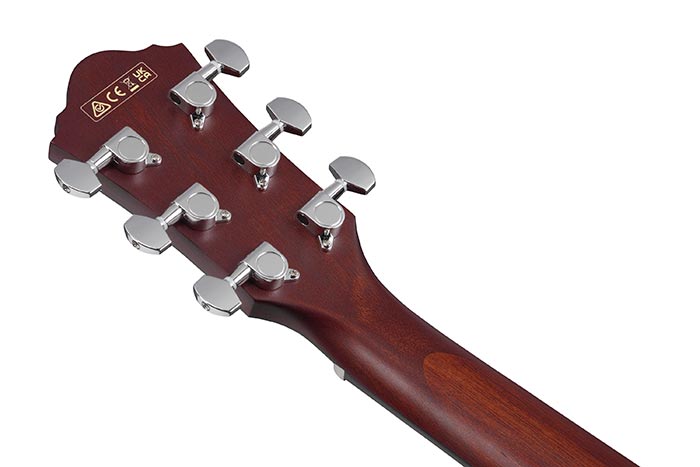

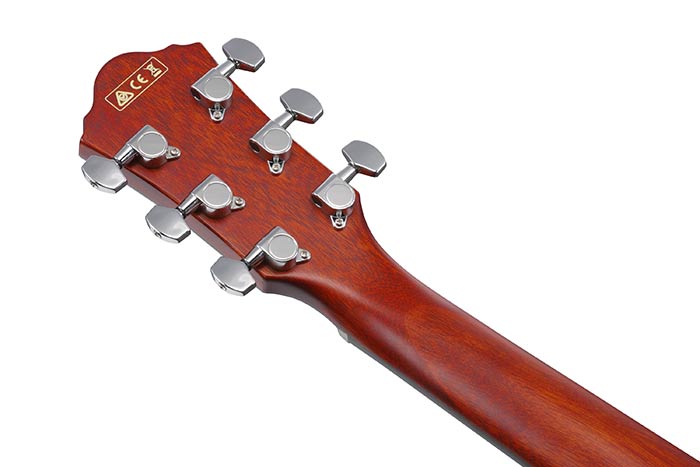

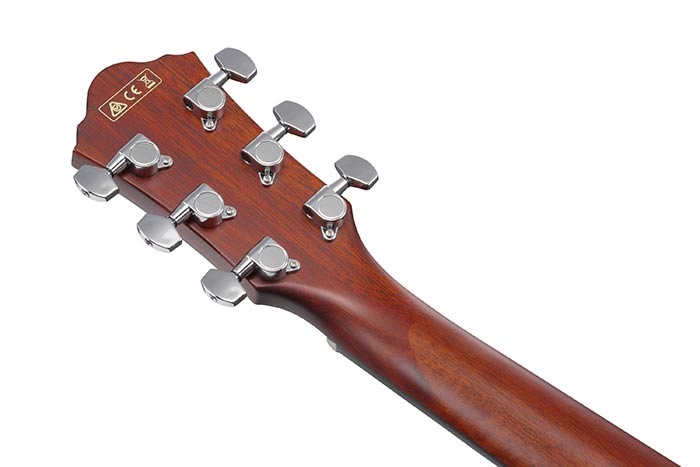

- tuning machine
- Chrome Die-cast tuners
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- strings
- Ibanez IACSP6C
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar II Undersaddle
- preamp
- Ibanez AEQ-TTS preamp w/Onboard tuner
- output jack
- 1/4" output
-
NECK DIMENSIONS
-
- Scale :
- 634mm/25"
- a : Width
- 43mm at NUT
- b : Width
- 54.33mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 15 "
- c : Max Depth
- 3 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is an LCD screen readout for tune at the top center of the control unit. The volume knob is on the far left, and the shape knob is on the far right. In between both knobs is a tuner on/off switch.
-
OTHER FEATURES
Features
Ibanez AEQ-TTS preamp w/Onboard Tuner
The small and simple preamp has only two control knobs, volume and shape. This at-a-glance tone control offers natural acoustic sound in the center position. It allows players to adjust the tone easily and enables them to go from low, fat and powerful tones to a bright and crisp sound while adjusting only one knob. A new easy-to-read onboard tuner with LCD(liquid crystal display) is located on the preamp.
Laurel fretboard
The Laurel fretboard provides a rich and warm tone.
Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

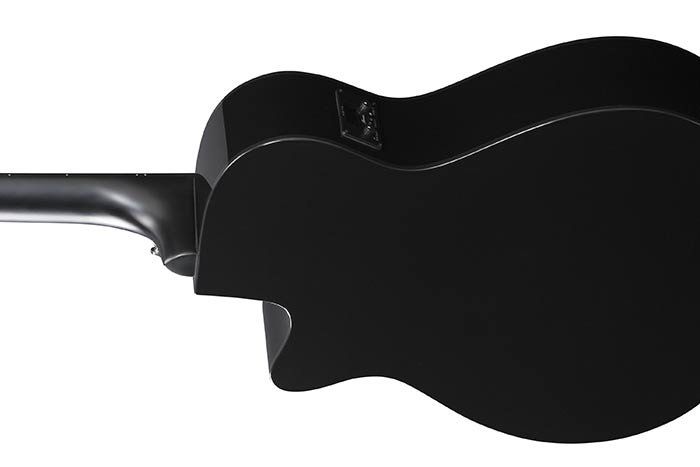

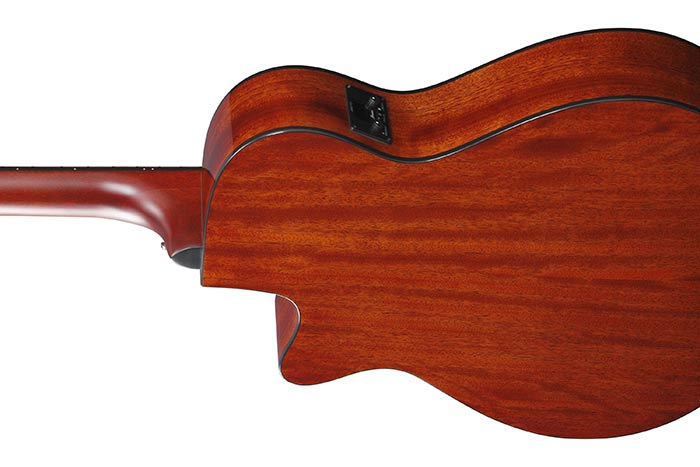

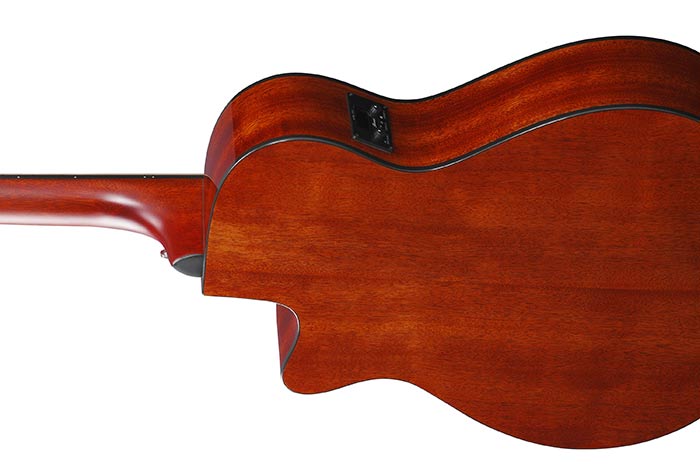

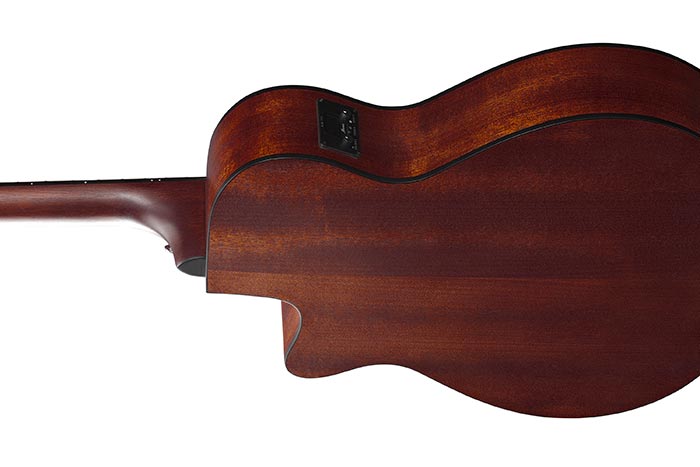

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
