AE340FMH
- MHS : Mahogany Sunburst High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing
- top
- Solid Flamed Okoume top
- back & sides
- Flamed Okoume back & Flamed Okoume sides
- neck
- Comfort Grip with Rounded Fretboard EdgeNyatoh neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood scalloped bridge
- inlay
- Specially designed Abalone and Maple Inlay
- soundhole rosette
- Abalone and Wooden rosette with Soundhole binding
- tuning machine
- Gold Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1152
- string gauge
- .011/.015/.022/.032/.042/.052
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez Custom Electronics w/Volume and Tone Control
- output jack
- 1/4" Endpin Jack
- battery
- 9Vx1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 44mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This preamp utilizes a two knob configuration. The knob closest to the player is the volume control for the magnetic pickup. The knob furthest from the player is the tone knob.
-
OTHER FEATURES
Features
A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

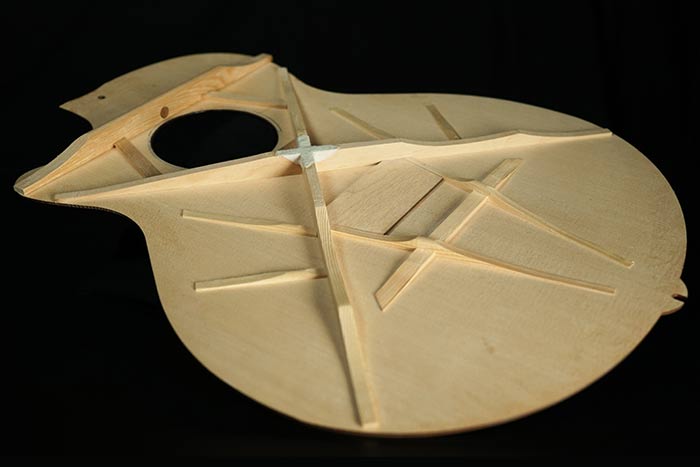

X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Jumbo Frets
The jumbo frets support easy fingering.
Flamed Okoume Back & Sides
The attractive, Flamed Okoume back and sides offer present and rich midrange tones.
Solid Flamed Okoume top
Solid Flamed Okoume top offers a full-bodied and warm mid-range and a bright tone.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
Rosewood Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance and provides more flexibility in adjusting the action than does a typical bridge.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
