RGT1270PB

SPEC

SPEC

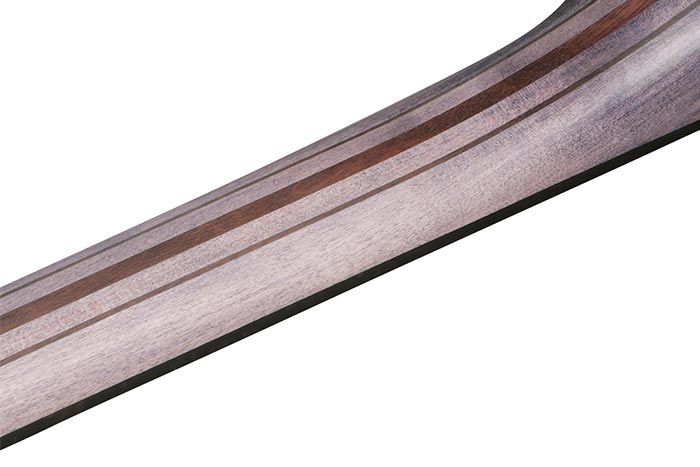

- neck type
- Wizard III7拼枫木/胡桃木穿体式琴颈

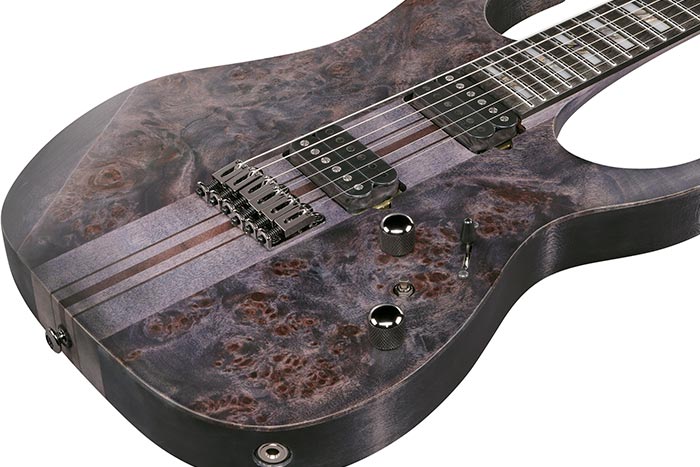

- top/back/body
- 白杨树瘤(3mm)面板美国椴木琴体

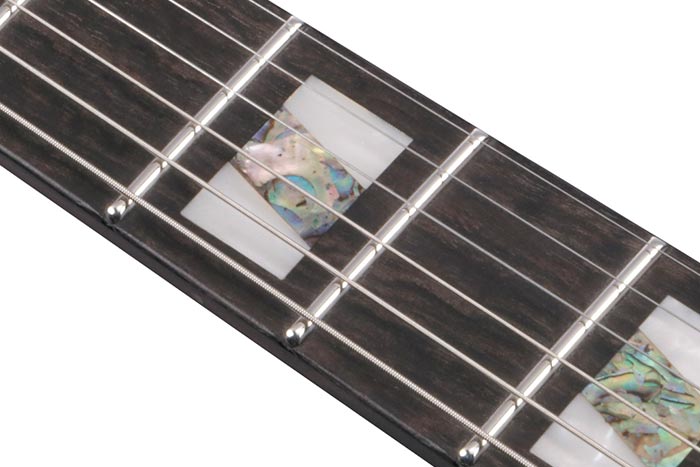

- fretboard
- 乌木指板亚克力及鲍鱼贝块状镶嵌
- fret
- 大号不锈钢品丝Premium品丝边缘处理
- number of frets
- 24
- bridge
- Edge 颤音琴桥
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (双) 琴颈拾音器被动/Alnico
- middle pickup
- DiMarzio® True Velvet™ (单) 中部拾音器被动/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (双) 琴桥拾音器被动/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- 宇宙黑硬件
NECK DIMENSIONS
- - Scale :
  - 648mm/25.5"
  - a : Width
  - 43mm at NUT
  - b : Width
  - 58mm at 24F
  - c : Thickness
  - 19mm at 1F
  - d : Thickness
  - 21mm at 12F
  - Radius :
  - 400mmR
- DESCRIPTION

  吉他颈部图
  a: 上琴枕部位的指板宽度
  b: 指定品位的指板宽度
  c: 第一品位的琴颈厚度
  d: 指定品位的琴颈厚度
  Radius: 指板曲面的半径
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
CONTROLS

DESCRIPTION

当吉他保持在演奏位置时，琴体的下边缘有一个旋钮和一个开关。最靠近琴颈的是五向拾音器选择器开关。靠近输入插孔的是音色旋钮。音量旋钮位于五向拾音器选择开关的上方。
OTHERS
- Recommended Case
- MR500C
- 带琴包
- Gotoh® 弦钮
- 夜光侧圆点镶嵌
