RGRTB621

SPEC

SPEC
- neck type
- Wizard III5拼枫木/胡桃木穿体式琴颈
- top/back/body
- 椿茶木翼接琴体
- fretboard
- 乌木指板
- fret
- 大号品丝
- number of frets
- 24
- bridge
- Mono-rail琴桥
- string space
- 10.8mm

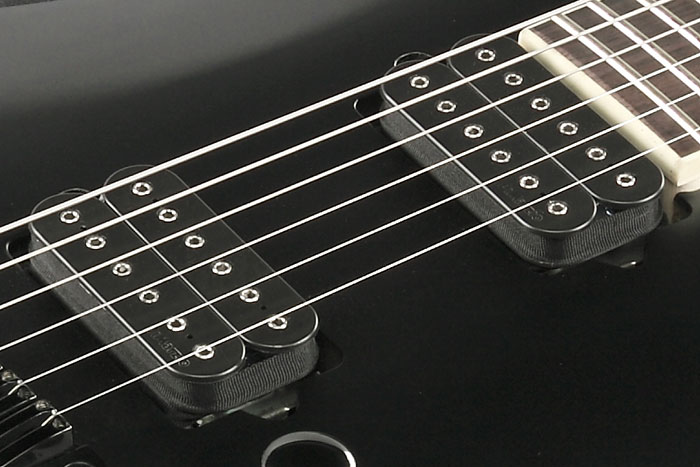

- neck pickup
- DiMarzio® Fusion Edge (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- DiMarzio® Fusion Edge (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- 黑色硬件
NECK DIMENSIONS
- - Scale :
  - 648mm/25.5"
  - a : Width
  - 43mm at NUT
  - b : Width
  - 58mm at 24F
  - c : Thickness
  - 19mm at 1F
  - d : Thickness
  - 21mm at 12F
  - Radius :
  - 400mmR
- DESCRIPTION

  吉他颈部图
  a: 上琴枕部位的指板宽度
  b: 指定品位的指板宽度
  c: 第一品位的琴颈厚度
  d: 指定品位的琴颈厚度
  Radius: 指板曲面的半径
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

当吉他保持在演奏位置时，琴体的下边缘有一个旋钮和一个开关。最靠近琴颈的是三向拾音器选择器开关。靠近输入插孔的是音色旋钮。音量旋钮位于三向拾音器选择开关的上方。
OTHERS
- Recommended Case
- M300C
- Recommended Bag
- IGB540-BK
- Gotoh® MG-T带锁弦钮
- dyna-MIX 10 开关系统带/切换开
- 夜光侧圆点镶嵌
