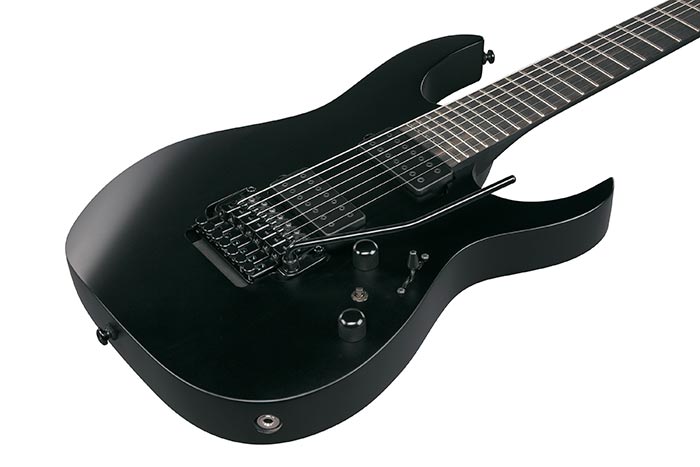

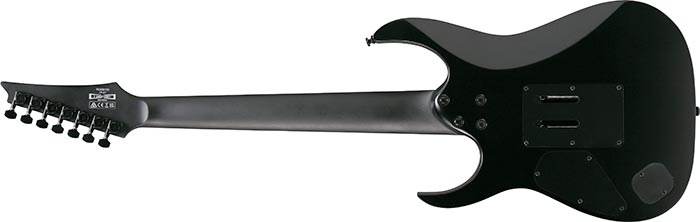

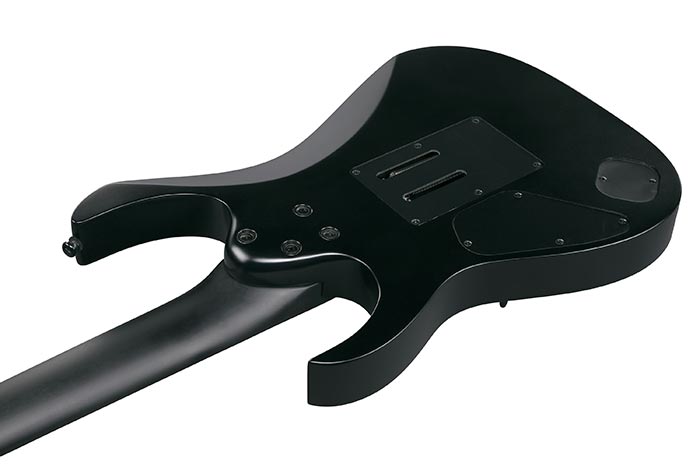

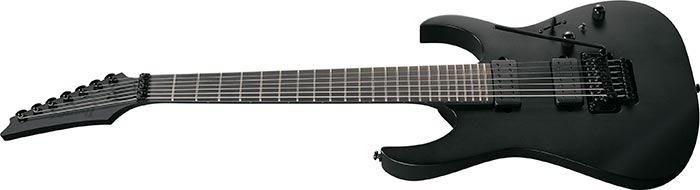

RGRB720
- BKF : 哑光黑色
- COLOR VARIATION：
SPEC
-
SPEC
- neck type
- Wizard II-73拼枫木琴颈
- top/back/body
- 椿茶木琴体
- fretboard
- 乌木指板
- fret
- 大号品丝
- number of frets
- 24
- bridge
- Edge-Zero II-7 颤音琴桥
- string space
- 10.8mm
- neck pickup
- DiMarzio® D Activator 7™ (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- DiMarzio® D Activator 7™ (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario® EXL120-7
- string gauge
- .009/.011/.016/.024/.032/.042/.054
- nut
- Locking nut
- hardware color
- 黑色硬件
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
吉他颈部图
a: 上琴枕部位的指板宽度
b: 指定品位的指板宽度
c: 第一品位的琴颈厚度
d: 指定品位的琴颈厚度
Radius: 指板曲面的半径
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
当吉他保持在演奏位置时，琴体的下边缘有一个旋钮和一个开关。最靠近边缘的是五向拾音器选择器开关。音色旋钮最接近琴体的一端。音量旋钮位于五向拾音器选择开关的上方。音量和音色旋钮之间是交替开关。
-
OTHERS
Features
Wizard II-7 3拼枫木琴颈
Ibanez 薄、平、顺滑的 Wizard 琴颈坚固耐用，为要求严格的演奏者提供无限的可玩性。
大号品丝
大号品丝有助于提高演奏的流畅度，尤其是单音演奏。
椿茶木琴体
使用椿茶木作为琴体木材，可产生丰富的中低音。
DiMarzio® D Activator™ 拾音器
DiMarzio® D Activator™ 拾音器具有强劲、干净、开放的声音，具有出色的泛音和非常紧密的低音响应。
Gotoh® 弦钮
Gotoh® 弦钮提供卓越的精度、平滑的感觉和出色的调音精度。
Edge-Zero II 颤音琴桥
Edge-Zero II 琴桥设计具有较低位置的颤音器，可提供舒适的演奏，并具有螺柱锁功能，可实现稳定的调音。
dyna-MIX 10 开关系统 带/切换开
dyna-MIX 10 提供十种音色变化，可使用迷你开关轻松切换双线圈和单线圈模式。尽管采用双线圈拾音器布局，但 Power Tap 模式可提供逼真的单线圈音色。
乌木指板
乌木纹理细密，可提供平滑坚实的弹奏表面，可产生金属音乐所需的紧致低音并确保快速响应。
夜光侧圆点镶嵌
夜光侧圆点标记使演奏者在黑暗的舞台上表演时很容易看到指板位置。
