RGR5221

SPEC

SPEC
- neck type
- Super Wizard HP5拼枫木/鸡翅木琴颈
- top/back/body
- 梣木面板非洲桃花心木琴体
- fretboard
- 包边孟加锡黑檀木指板珍珠母偏置圆点镶嵌
- fret
- 大号不锈钢品丝Prestige品丝边缘处理
- number of frets
- 24
- bridge
- Gibraltar Standard III 琴桥
- string space
- 10.8mm

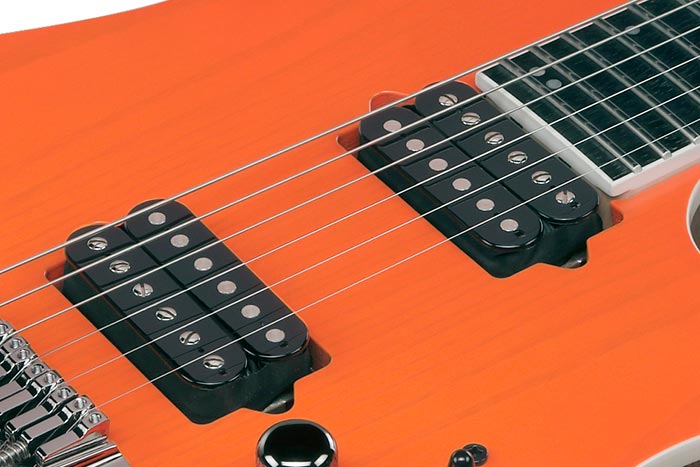

- neck pickup
- Bare Knuckle Brute Force (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- Bare Knuckle Brute Force (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® BLACK TUSQ XL®琴枕
- hardware color
- 宇宙黑硬件
NECK DIMENSIONS
- - Scale :
  - 648mm/25.5"
  - a : Width
  - 43mm at NUT
  - b : Width
  - 58mm at 24F
  - c : Thickness
  - 17mm at 1F
  - d : Thickness
  - 19mm at 12F
  - Radius :
  - 430mmR
- DESCRIPTION

  吉他颈部图
  a: 上琴枕部位的指板宽度
  b: 指定品位的指板宽度
  c: 第一品位的琴颈厚度
  d: 指定品位的琴颈厚度
  Radius: 指板曲面的半径
SWITCHING SYSTEM

DESCRIPTION

When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.

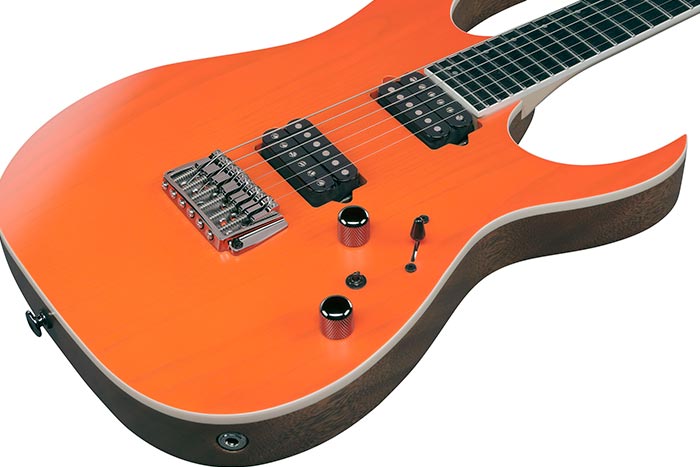

CONTROLS

DESCRIPTION

当吉他保持在演奏位置时，琴体的下边缘有一个旋钮和一个开关。最接近边缘的是三向拾音器选择器开关。音色旋钮最接近琴体的一端。音量旋钮位于三向拾音选择器开关的正上方。音量和音色旋钮之间是一个切单开关。当开关位于琴颈位置时，切单打开。当开关处于琴桥位置时，切单关闭。
OTHERS
- Recommended Bag
- IGB724-BK
- 带硬琴盒
- Gotoh® MG-T带锁弦钮
- 切单开关
- 夜光侧圆点镶嵌(Luminlay side dot inlay)
