RGMS7PB
SPEC
-
SPEC
- neck type
- Wizard III-7 for Multi Scale5拼枫木/胡桃木琴颈
- top/back/body
- 白杨树瘤面板椿茶木琴体
- fretboard
- 孪叶苏木指板白色偏置圆点镶嵌
- fret
- 大号品丝
- number of frets
- 24
- bridge
- Mono-rail琴桥
- string space
- 10.8mm
- neck pickup
- Array 7 MS (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- Array 7 MS (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario® EXL120+.059
- string gauge
- .009/.011/.016/.024/.032/.042/.059
- hardware color
- 宇宙黑硬件
-
NECK DIMENSIONS
-
- Scale :
- 686mm/27.0" - 648mm/25.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
吉他颈部图
a: 上琴枕部位的指板宽度
b: 指定品位的指板宽度
c: 第一品位的琴颈厚度
d: 指定品位的琴颈厚度
Radius: 指板曲面的半径
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-

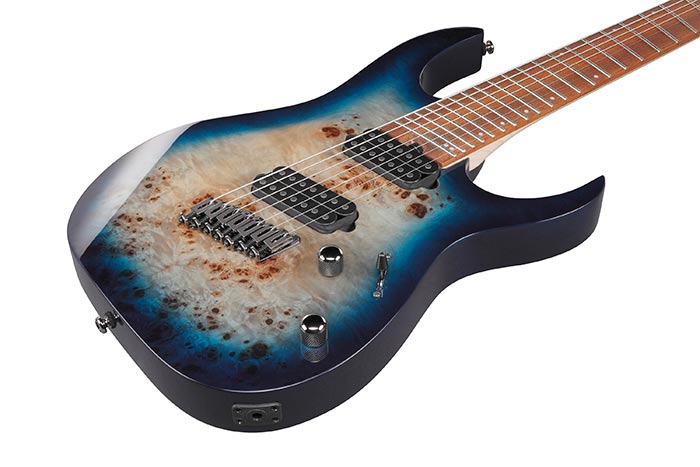

CONTROLS
DESCRIPTION
当吉他保持在演奏位置时,琴体的下边缘有一个旋钮和一个开关。 最靠近琴颈的是五向拾音器选择器开关。 靠近输入插孔的是音色旋钮。 音量旋钮位于五向拾音器选择开关的上方。
-
OTHERS
Features

Mono-rail 琴桥
创新的Ibanez单轨琴桥专为稳定和维持而设计,可最大程度地减少琴弦之间的串扰。

孪叶苏木指板
孪叶苏木呈红棕色,可产生丰富的中音和清脆的高音。

白杨树瘤面板 / 椿茶木琴体
白杨树瘤面板具有异国情调的木纹,而椿茶木琴体则提供了丰富的中低音。

Array 7 MS 拾音器
Ibanez Array拾音器可提供超紧凑的音色,通过低噪音可完美的处理调音。

Wizard III 5拼枫木/胡桃木琴颈
Ibanez 纤薄、平坦且顺滑的 Wizard 琴颈坚固耐用,提供无限的演奏能力,并配有两个八度 24 品指板,可提供宽广的音调范围。
