RGIXL7

PHOTOS
SPEC
FEATURES
SUPPORT

BKF : 哑光黑色

COLOR VARIATION：

SPEC

SPEC

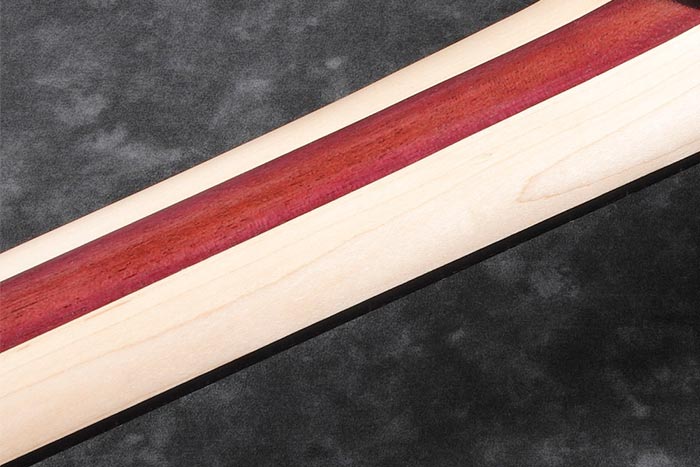

- neck type
- Nitro Wizard-7 XL3拼枫木/非洲红纹木琴颈

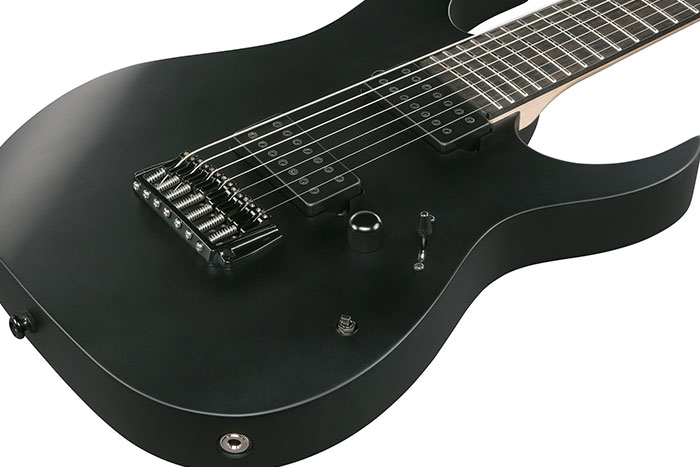

- top/back/body
- 椿茶木琴体
- fretboard
- 乌木指板

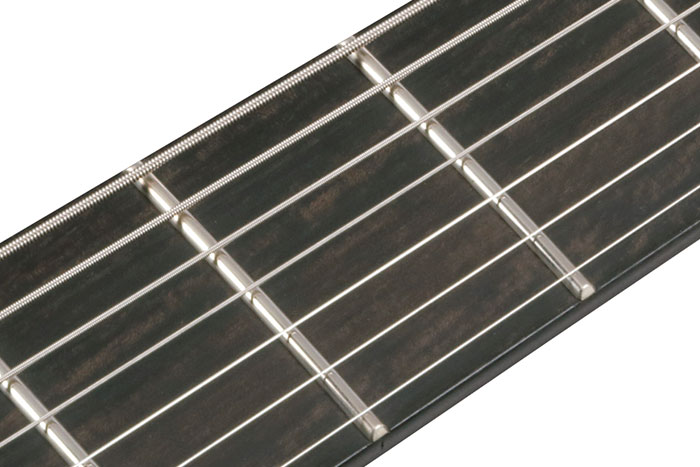

- fret
- 大号品丝
- number of frets
- 24
- bridge
- Gibraltar Standard III-7 琴桥
- string space
- 10.8mm
- neck pickup
- DiMarzio® Fusion Edge 7 (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- DiMarzio® Fusion Edge 7 (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1D,2A,3F,4C,5G,6D,7A
- strings
- D'Addario® EXL110-7
- string gauge
- .010/.013/.017/.026/.036/.046/.059
- hardware color
- 黑色硬件

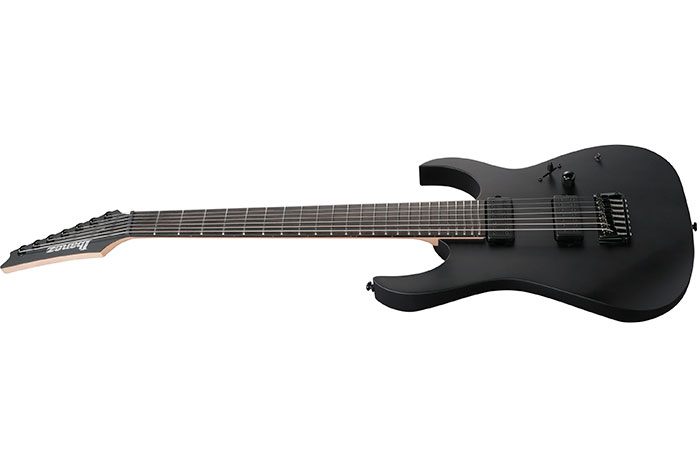

NECK DIMENSIONS
- - Scale :
  - 686mm/27"
  - a : Width
  - 48mm at NUT
  - b : Width
  - 68mm at 24F
  - c : Thickness
  - 19mm at 1F
  - d : Thickness
  - 21mm at 12F
  - Radius :
  - 400mmR
- DESCRIPTION

  吉他颈部图
  a: 上琴枕部位的指板宽度
  b: 指定品位的指板宽度
  c: 第一品位的琴颈厚度
  d: 指定品位的琴颈厚度
  Radius: 指板曲面的半径
SWITCHING SYSTEM

DESCRIPTION

When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
CONTROLS

DESCRIPTION

当吉他保持在演奏位置时，吉他下边缘有两个开关。最靠近琴颈方向的开关是三向拾音器选择器开关，另一个靠近输入插孔的开关是切单开关。当切单开关处于琴颈位置时，切单打开；而当开关位于琴桥位置时，切单关闭。三向拾音器选择开关上方的旋钮是音量旋钮。
OTHERS
- Recommended Case
- MR350C
- Recommended Bag
- IGB540-BK
- Gotoh® MG-T带锁弦钮
- 切单开关
- 夜光侧圆点镶嵌
