RGD7521PB
- DSF : 哑光深海底褪色
- COLOR VARIATION：
SPEC
-
SPEC
- neck type
- Wizard II-7烤枫木琴颈
- top/back/body
- 白杨树瘤面板椿茶木琴体
- fretboard
- 孪叶苏木指板白色圆点镶嵌
- fret
- 大号品丝
- number of frets
- 24
- bridge
- Gibraltar Standard III-7 琴桥
- string space
- 10.8mm
- neck pickup
- DiMarzio® PAF® 7 (双) 琴颈拾音器被动/陶瓷
- bridge pickup
- DiMarzio® PAF® 7 (双) 琴桥拾音器被动/陶瓷
- factory tuning
- 1D,2A,3F,4C,5G,6D,7A
- strings
- D'Addario® EXL110-7
- string gauge
- .010/.013/.017/.026/.036/.046/.059
- hardware color
- 黑色硬件
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
吉他颈部图
a: 上琴枕部位的指板宽度
b: 指定品位的指板宽度
c: 第一品位的琴颈厚度
d: 指定品位的琴颈厚度
Radius: 指板曲面的半径
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
当吉他保持在演奏位置的情况下，在琴体下边缘附近有一个三向拾音器选择器开关。 音量旋钮和切单开关位于琴体末端。 当切单开关朝着音量旋钮倾斜时，切单打开，而当开关向远离音量旋钮倾斜时，切单关闭。
-
OTHERS
Features
Wizard II 烤枫木琴颈
烤枫木琴颈经过热处理，增加了稳定性、耐用性、防潮性和对温度变化的耐受性。石墨加固杆提供了强大的支撑力和出色的稳定性。

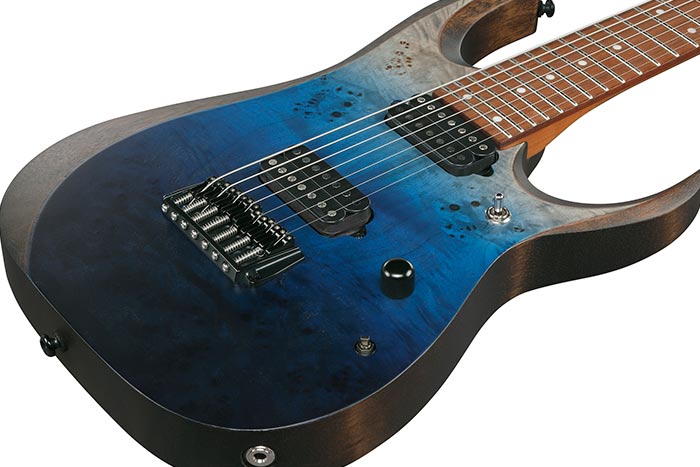

白杨树瘤面板 / 椿茶木琴体
白杨树瘤面板具有异国情调的木纹，而椿茶木琴体则提供了丰富的中低音。

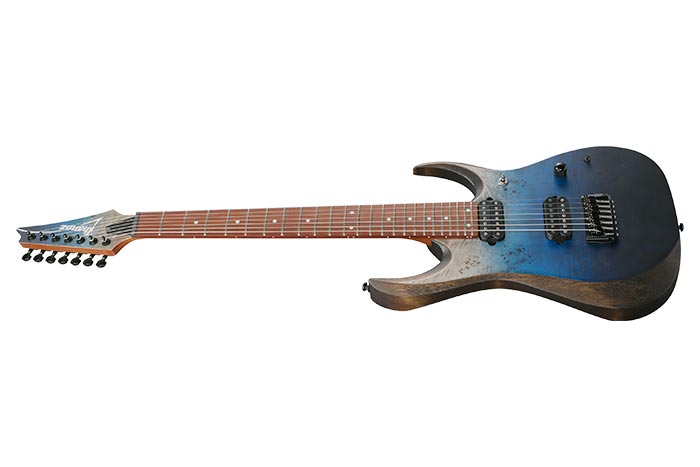

26.5 英寸有效弦长
它的超长 26.5 英寸有效弦长和准确调节较重琴弦的能力，使其成为调低金属音调的完美乐器。
DiMarzio® PAF® 7 拾音器
DiMarzio® PAF® 7 拾音器发出的低音干净、开放，高音温暖圆润。
Gibraltar Standard III 琴桥
Gibraltar Standard III 琴桥采用重新设计的底板和琴码，可增强演奏舒适度同时确保最佳的琴弦振动传递。
孪叶苏木指板
孪叶苏木呈红棕色，可产生丰富的中音和清脆的高音。
切单开关
切单开关释放拾音器的全部输出（用于现代声音）或低输出信号（用于复古音色）。
