RG631ALF

PHOTOS
SPEC
FEATURES
SUPPORT

BCM : 蓝色变色龙

COLOR VARIATION：

SPEC

SPEC
- neck type
- Nitro Wizard5拼斯图崖豆木/胡桃木琴颈
- top/back/body
- 椿茶木琴体
- fretboard
- 孟加锡黑檀木指板白色偏置圆点镶嵌
- fret
- 零下摄氏度处理大号品丝
- number of frets
- 24
- bridge
- Gibraltar Standard III 琴桥
- string space
- 10.8mm

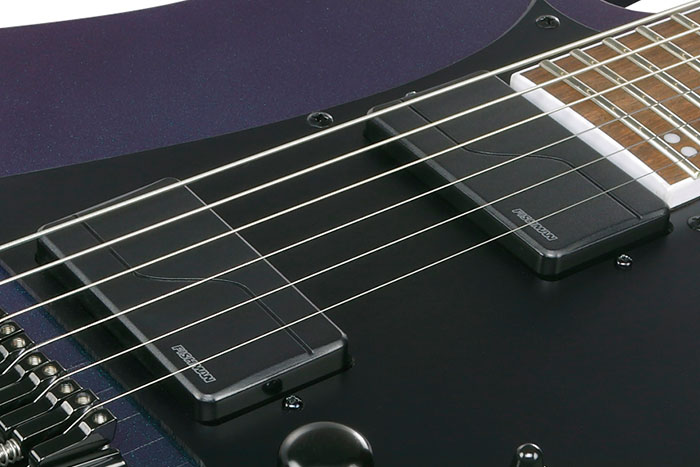

- neck pickup
- Fishman® Fluence™ Modern Humbucker Alnico (双) 琴颈拾音器主动/Alnico
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (双) 琴桥拾音器主动/陶瓷
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- 黑色硬件
NECK DIMENSIONS
- - Scale :
  - 648mm/25.5"
  - a : Width
  - 43mm at NUT
  - b : Width
  - 58mm at 24F
  - c : Thickness
  - 19mm at 1F
  - d : Thickness
  - 21mm at 12F
  - Radius :
  - 400mmR
- DESCRIPTION

  吉他颈部图
  a: 上琴枕部位的指板宽度
  b: 指定品位的指板宽度
  c: 第一品位的琴颈厚度
  d: 指定品位的琴颈厚度
  Radius: 指板曲面的半径
SWITCHING SYSTEM

DESCRIPTION

When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
CONTROLS

DESCRIPTION

当吉他保持在弹奏位置时，琴体下部靠近膝盖附近有一个三向拾音器选择开关。有一个push/pull音量旋钮，它也控制fishman fluence voicing的功能，还有一个切单开关和位于琴体末端的音色旋钮。当音量旋钮调低时使用 fluence voice 1，音量旋钮调高时会使用 fluence voice 2。
OTHERS
- Recommended Case
- M300C
- Recommended Bag
- IGB540-BK
- Gotoh® MG-T带锁弦钮
- 切单开关
- Fishman® Fluence™ Voicing开关 (拉提音量旋钮)
- 夜光侧圆点镶嵌
- Schaller S-Lock 固定背带
- Luminescent Ibanez logo
