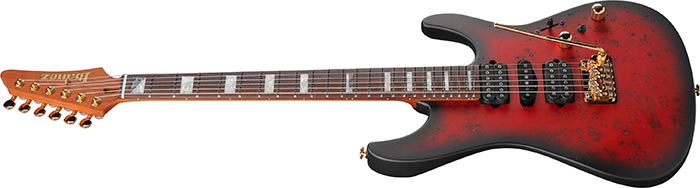

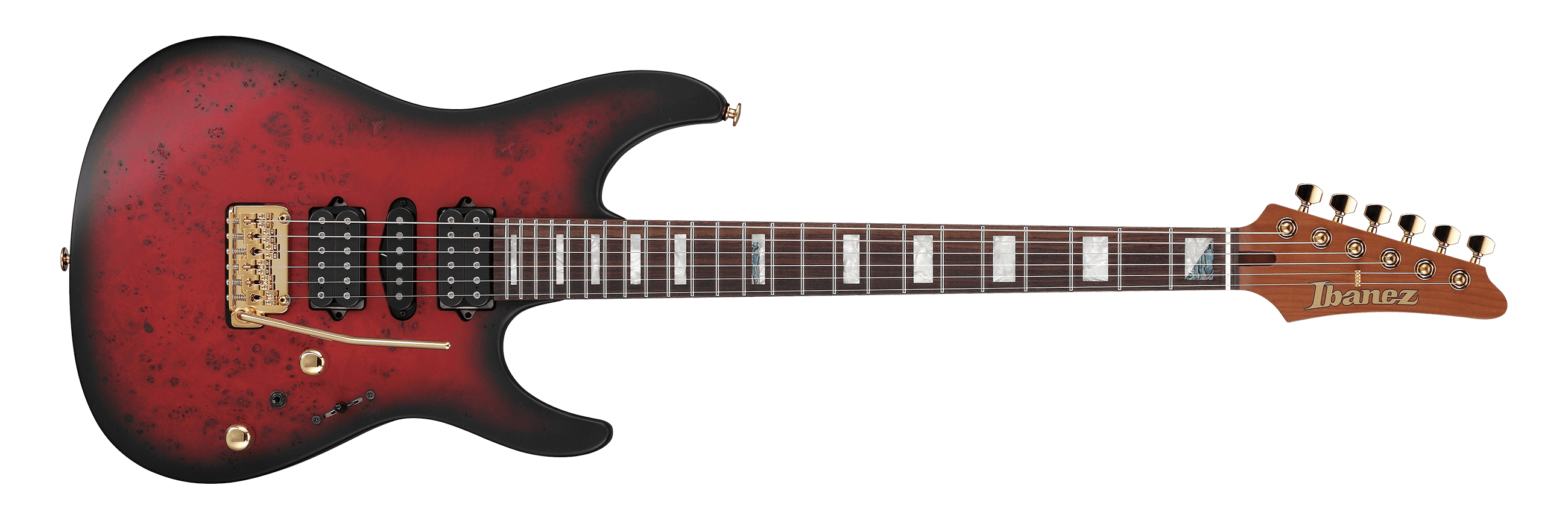

KIKO300
SPEC
-
SPEC
- neck type
- KIKOS-TECH 技术烤枫木琴颈
- top/back/body
- 白杨树瘤面板桤木琴体
- fretboard
- 玫瑰木指板KIKO特制镶嵌
- fret
- 大号不锈钢品丝Prestige品丝边缘处理
- number of frets
- 24
- bridge
- Gotoh® T1502 颤音琴桥
- string space
- 10.5mm
- neck pickup
- DiMarzio® KIKO original (双) 琴颈拾音器被动/Ceramic
- middle pickup
- DiMarzio® KIKO original (单)中部拾音器被动/Alnico
- bridge pickup
- DiMarzio® KIKO original (双) 琴桥拾音器被动/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- 骨质琴枕
- hardware color
- 金色硬件
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
吉他颈部图
a: 上琴枕部位的指板宽度
b: 指定品位的指板宽度
c: 第一品位的琴颈厚度
d: 指定品位的琴颈厚度
Radius: 指板曲面的半径
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, the coil tap is on. When the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck side of neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge position, the center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in neck position, the neck side of the neck pickup is selected. When the switch is in between neck and center position, the neck side of the neck pickup and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge pickup, the center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
当吉他保持在弹奏位置时，沿着琴体的下边缘有两个旋钮和一个开关。在琴体的下边缘，朝向琴颈，是五段选择开关。最靠近琴体末端的是音色旋钮。音量旋钮位于五段拾音器选择开关的正上方。在音量和音色旋钮之间是一个切单开关。当开关处于琴颈位置时，切单打开。当开关处于琴桥位置时，切单关闭。
-
OTHERS
Features

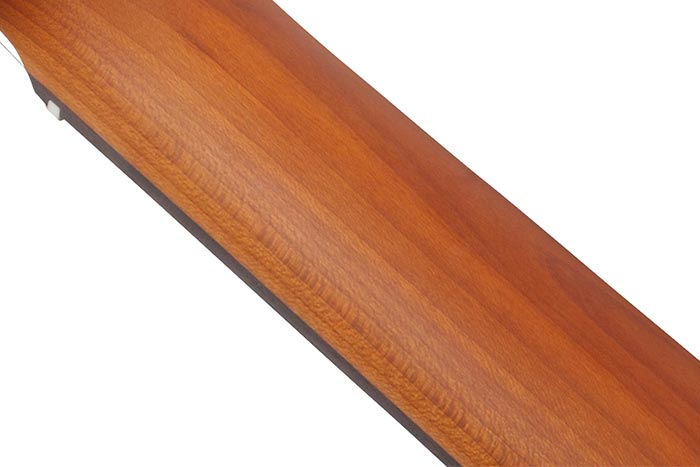

KIKO S-TECH 技术烤枫木琴颈
S-TECH 特殊烘烤处理赋予琴体卓越的音头、均衡的音色和丰富的延音。为了实现极致的握琴舒适度，指板边缘采用流畅的弧形设计。

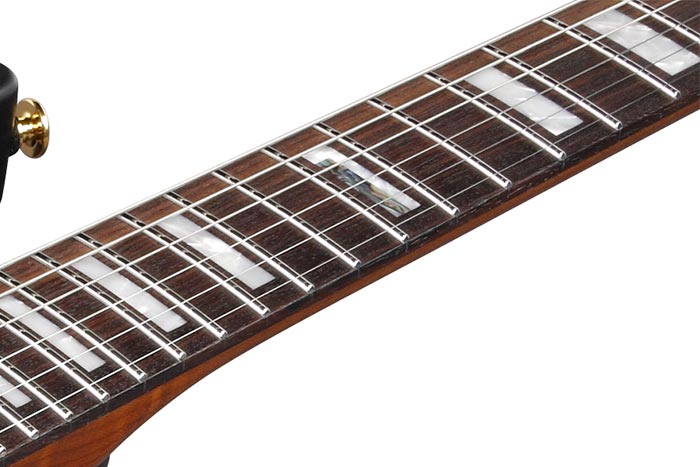

玫瑰木指板
玫瑰木指板提供了均衡而扎实的音色，中频集中。

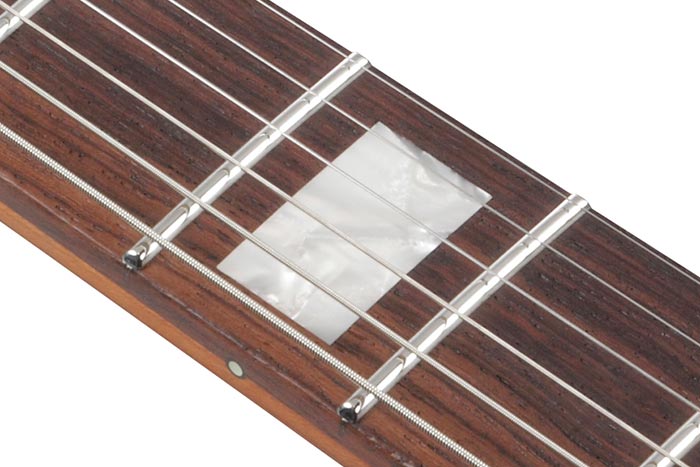

大号不锈钢品丝 / Prestige品丝边缘处理
不锈钢品丝具有卓越的耐腐蚀性。宽而高的琴格类型带来快速响应，和弦演奏时清晰度高，单音演奏时音色清澈。
Prestige品丝边缘处理工艺确保演奏轻松流畅。

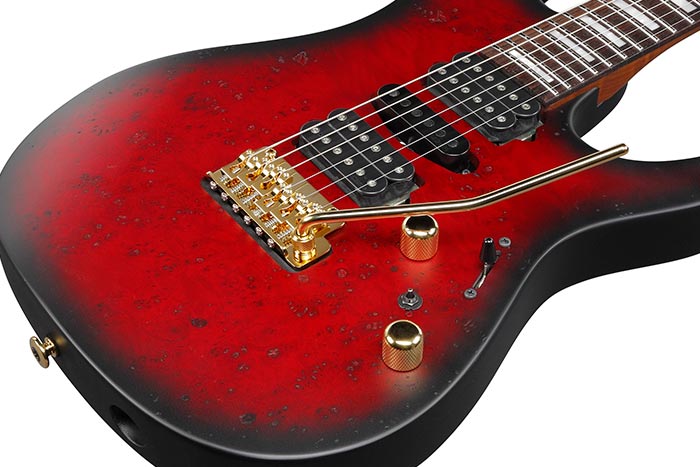

白杨树瘤面板 / 桤木琴体
白杨树瘤面板具有独特的木纹，搭配桤木琴体，带来均衡明亮的音色、丰富的共鸣和延音。

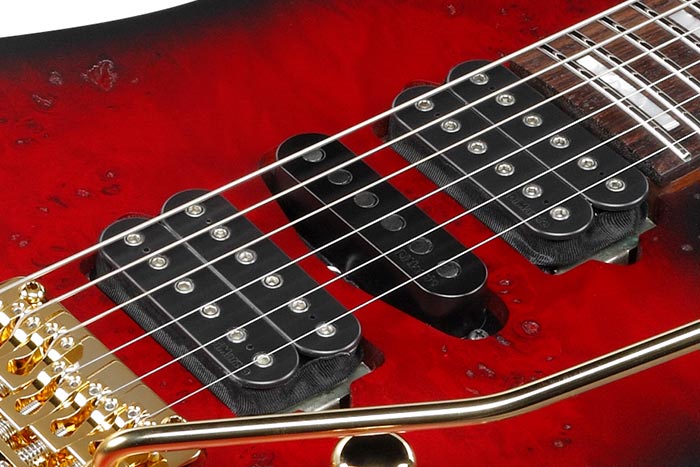

DiMarzio® KIKO original 拾音器
Kiko演奏的音乐风格十分广泛，从金属乐到爵士融合乐都有涉猎，拾音器的设计也充分考虑了这种音色范围。琴颈和琴桥的双线圈拾音器输出适中，频率响应均衡。中间的单线圈拾音器比典型的复古单线圈拾音器更强劲、音色更温暖，与琴颈和琴桥拾音器完美平衡。
Gotoh® MG-T带锁弦钮
Gotoh® MG-T带锁弦钮可实现极佳的调音稳定性，从而缩短换弦时间。

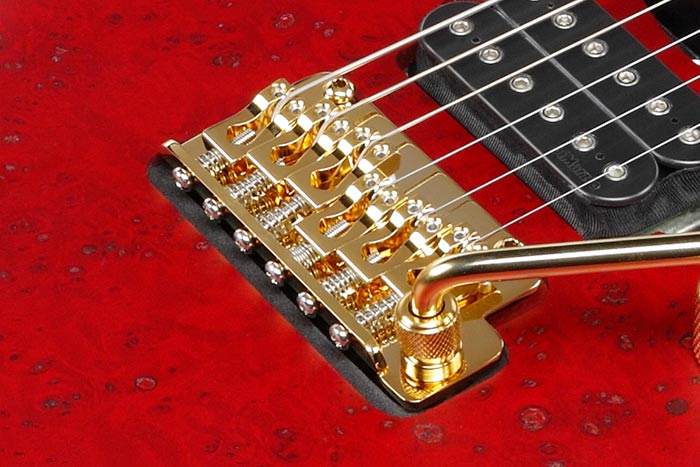

Gotoh® T1502 颤音琴桥
T1502 颤音琴桥采用钢制琴码和压铸锌合金颤音块，响应迅速，音色清晰。10.5毫米的弦距便于跨弦拨弦，其卡扣式结构也方便安装颤音杆。

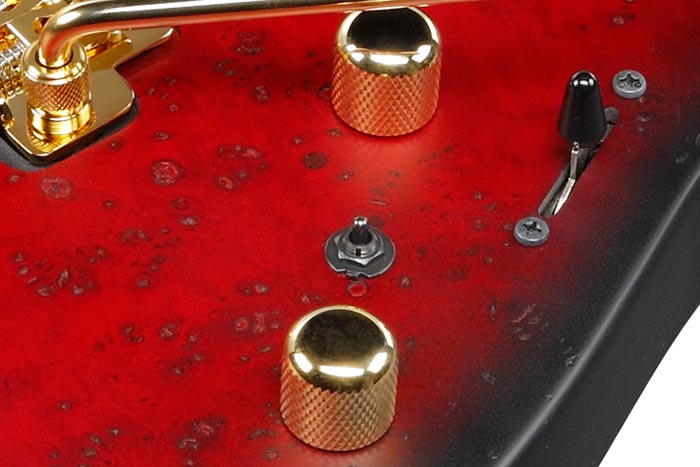

切单开关
单线圈切换开关可为两个拾音器增加声音和音色变化。
夜光侧点镶嵌
夜光侧点镶嵌使乐手在黑暗的舞台上表演时很容易就能看到指板位置标记。
