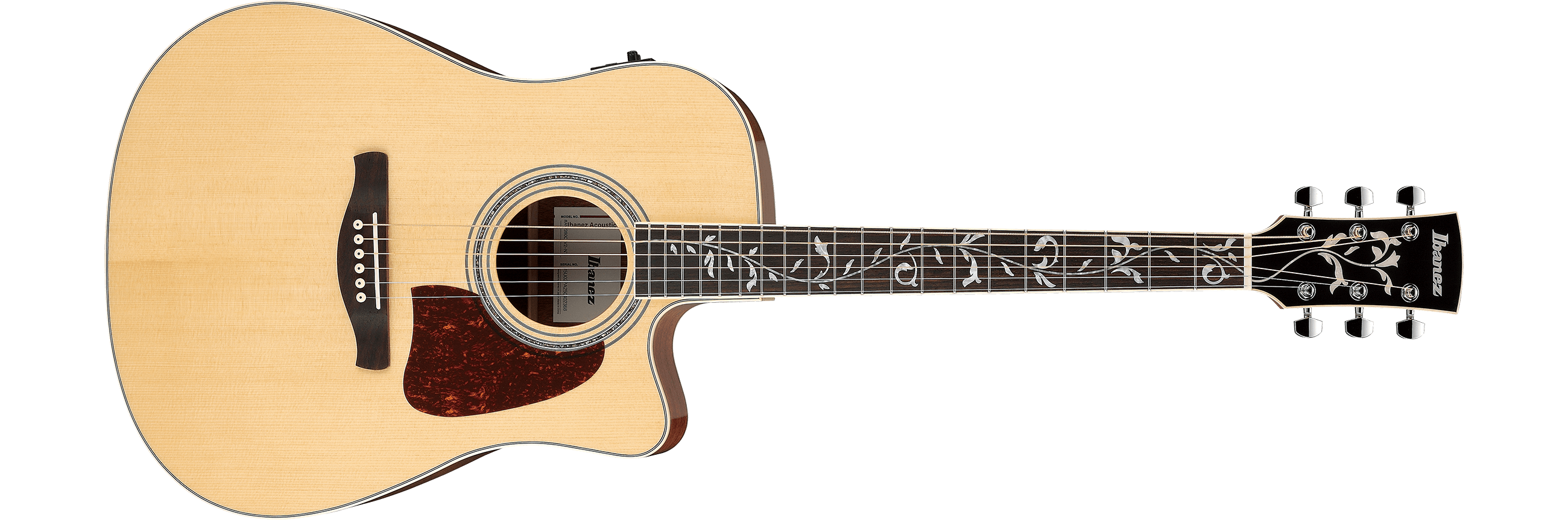

AW390CE
- NT : 亮光原木色
- COLOR VARIATION：
ARTWOOD
SPEC
-
SPEC
- body shape
- 缺角Dreadnought琴体
- top
- 单板西提卡云杉面板
- back & sides
- 非洲桃花心木背板 & 非洲桃花心木侧板
- neck
- AW非洲桃花心木琴颈
- fretboard
- 玫瑰木指板
- bridge
- 玫瑰木琴桥
- inlay
- 生命之树镶嵌
- soundhole rosette
- 鲍鱼贝音孔环饰
- tuning machine
- 镀铬压铸卷弦器（18：1传动比率）
- nut material
- 骨质
- number of frets
- 20
- saddle material
- 骨质琴码
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez AEQ-TP2前级带板载调音表
- output jack
- 均衡式XLR & 1/4”输出接口
- battery
- 9V电池 x1
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
吉他颈部图
a: 上琴枕部位的指板宽度
b: 指定品位的指板宽度
c: 第一品位的琴颈厚度
d: 指定品位的琴颈厚度
Radius: 指板曲面的半径
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 15 5/8"
- c : Max Depth
- 5"
-
DESCRIPTION
吉他琴体图
a: 长度
b: 宽度
c: 厚度
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHERS
