VYS : Vintage Yellow Sunburst

COLOR VARIATION：

ARTIST DETAIL

JSM

SPEC

SPECS
- neck type

  JSM3pc Nyatoh/Mapleset-in neck
- top/back/side

  Flamed Maple top Flamed Maple backFlamed Maple sides
- fretboard

  Bound Ebony fretboardAcrylic & Abalone block inlay
- fret

  Medium fretsArtstar fret edge treatment
- number of frets

  22
- bridge

  Gibraltar Artist bridge
- string space

  10.5mm
- tailpiece

  Quik Change III tailpiece
- neck pickup

  Super 58 (H) neck pickupPassive/Alnico
- bridge pickup

  Super 58 (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- string gauge

  .010/.013/.017/.030/.042/.052
- nut

  Bone nut
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    628mm/24.7"
  - a : Width

    43mm at NUT
  - b : Width

    57mm at 22F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    24mm at 9F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    19 1/4"
  - b : Width

    15 3/4"
  - c : Max Depth

    2 5/8"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If the neck Tri-sound switch is in neck position, the neck pickup is in parallel mode. If the switch is in center position, the neck side of the neck pickup is selected. If the switch is in bridge position, the neck pickup is in series mode.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
OTHER FEATURES
- Hardshell case included
- Tri-sound switch

Features

3pc Nyatoh/Maple neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Medium frets with Artstar fret edge treatment

Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

Flamed Maple top / Flamed Maple back and sides

The Flamed Maple offers a beautiful wood grain.

Super 58 pickups

Super 58 pickups feature moderate output and vintage tone.

Gibraltar Artist bridge

The Gibraltar Artist bridge, made of a lightweight aluminum bridge frame and zinc saddles, provides natural tone, rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Quik Change III tailpiece

The Quik Change III tailpiece enables faster and easier string changing.

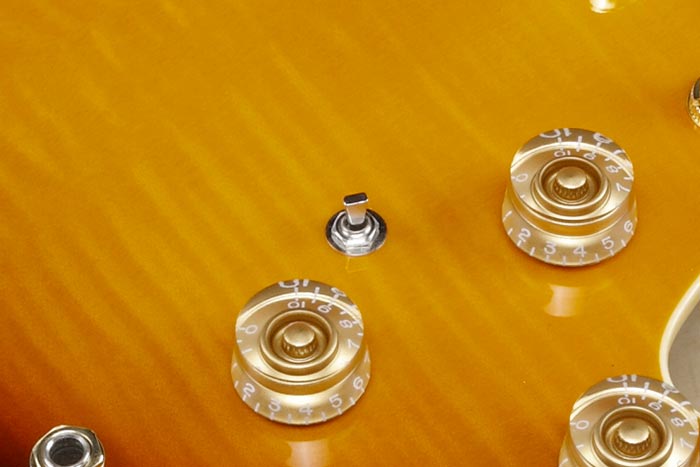

Tri-sound switch

The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.
