GB10SE
SPEC
-
SPECS
-
neck typeGB3pc Mapleset-in neck
-
top/back/sideSpruce top Maple backMaple sides
-
fretboardBound Ebony fretboardAcrylic & Abalone block inlay
-
fretMedium fretsArtstar fret edge treatment
-
number of frets22
-
bridgeEbony bridge
-
string space10.4mm
-
tailpieceGB10 tailpiece
-
neck pickupGB special (H) neck pickupPassive/Alnico
-
bridge pickupGB special (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
string gauge.011/.015/.022w/.030/.040/.050
-
nutHalf-Bone/Half-Brass nut
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :628mm/24.7"
-
a : Width43mm at NUT
-
b : Width57mm at 22F
-
c : Thickness20mm at 1F
-
d : Thickness22mm at 9F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length18 7/8"
-
b : Width14 1/2"
-
c : Max Depth3 3/8"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.
-
OTHER FEATURES
-
Hardshell case included
-
Half-Bone/Half-Brass Nut
-

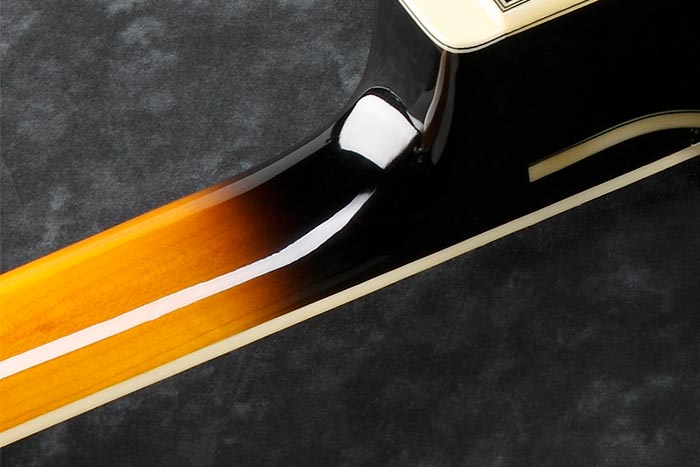

Features
3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Medium frets with Artstar fret edge treatment
Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.
Spruce top / Maple back and sides
The Spruce top's smooth wood appearance enriches the response of your playing. The Maple back and sides provide a rich tone and bright attack with a solid sound.
GB special pickups
GB special pickups are installed and float off the body, eliminating feedback and enabling a superbly warm jazz sound.

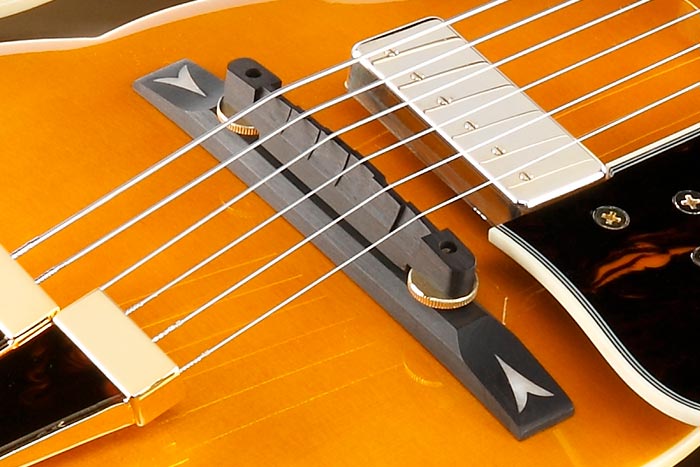

Ebony bridge
The Ebony bridge transfers string vibration directly to the body, delivering a natural and warm tone.
GB10 tailpiece
The gorgeous GB10 tailpiece provides better tuning stability.
Half-Bone/Half Brass Nut
The splendid George Benson Signature GB10 features a specially-designed half bone/half brass nut.
