AAD190CE
SPEC
-
SPECS
- body shape
- Grand Dreadnought with Advanced Access Cutaway body
- bracing
- X-M Bracing
- top
- Solid Okoume top
- back & sides
- Okoume back & Okoume sides
- neck
- Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ Nyatoh neck
- fretboard
- Ovangkol fretboard
- bridge
- Ovangkol scalloped bridge
- inlay
- White dot inlay
- soundhole rosette
- Wooden rosette with Soundhole binding
- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone saddle
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez AP11 Magnetic
- preamp
- Ibanez Custom Electronics w/ Volume and Tone Control
- output jack
- 1/4" Endpin Jack
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 3/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 5 "
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This preamp utilizes a two knob configuration. The knob closest to the player is the volume control for the magnetic pickup. The knob furthest from the player is the tone knob.
-
OTHER FEATURES
Features
Grand Dreadnought body
Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

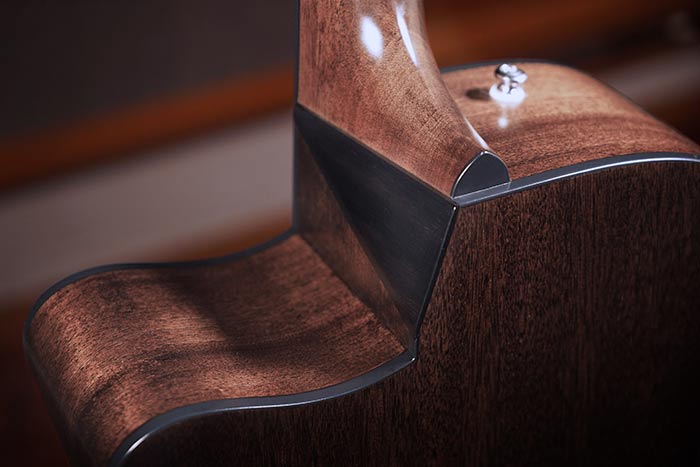

Advanced Access Cutaway
Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.
Low Oval Grip Thermo Aged™ Nyatoh neck with Rounded Fretboard Edge
The Low Oval neck grip is designed for easy chord strumming and the Rounded Fretboard Edges provides superior playability. Thermo Aged, a special drying process, makes the neck light and hard and provides stability and better resonance.
Functional Tapered Headstock
The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

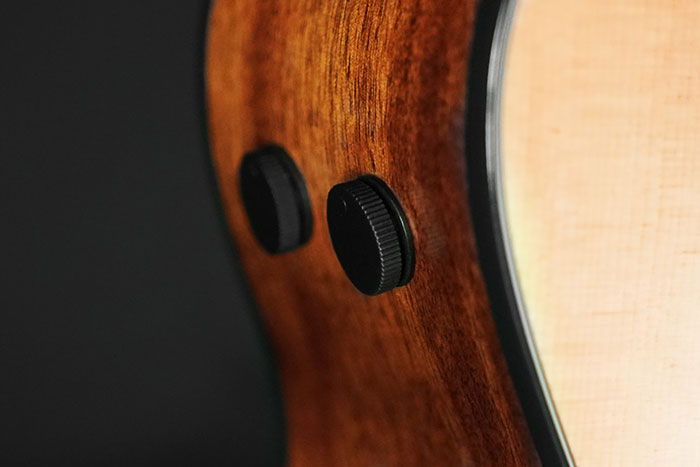

Ibanez Custom Electronics w/ Volume and Tone Control
The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.

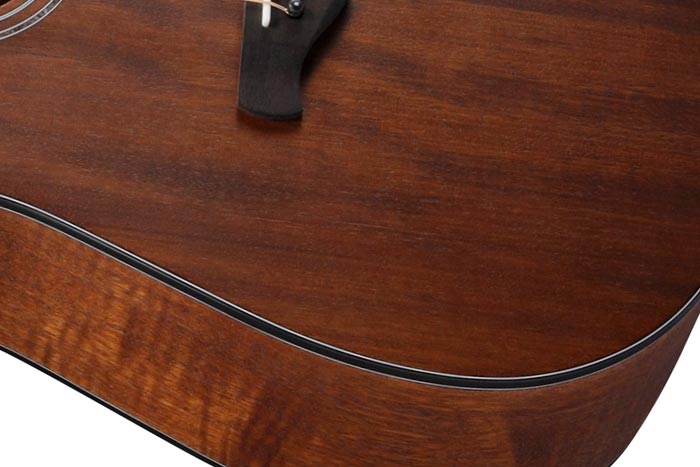

Solid Okoume top
Solid Okoume top offers a full-bodied and warm mid-range and a bright tone.
Ovangkol Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.
Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
