URGT100
SPEC
-
SPECS
-
body shapeRG Tenor Ukulele body
-
topSpruce top
-
back & sidesOkoume back & Okoume sides
-
neckC shapeOkoume neck
-
fretboardPurpleheart fretboard
-
bridgePurpleheart bridge
-
inlayWhite dot inlay
-
tuning machineChrome Die-cast tuners
-
number of frets24
-
stringsAquila® Nylblack Tenor strings
-
string gauge.0264/.0330/.0394/.0287
-
string space15mm
-
factory tuning1A,2E,3C,4G
-
pickupIbanez Undersaddle
-
preampIbanez AEQ-2UT preamp w/Onboard tuner
-
output jack1/4" Endpin Jack
-
batteryCR2032 x2
-
-
NECK DIMENSIONS
-
-
Scale :432mm/17"
-
a : Width37mm at NUT
-
b : Width48mm at 14F
-
c : Thickness19mm at 1F
-
d : Thickness21.5mm at 7F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length13"
-
b : Width8 7/8"
-
c : Max Depth2 1/4"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The knob on the far left is the volume knob. To the right of the volume knob is a small on/off switch for the built-in tuner. Next to the tuner switch are the bass and treble knobs.
-
OTHER FEATURES
-

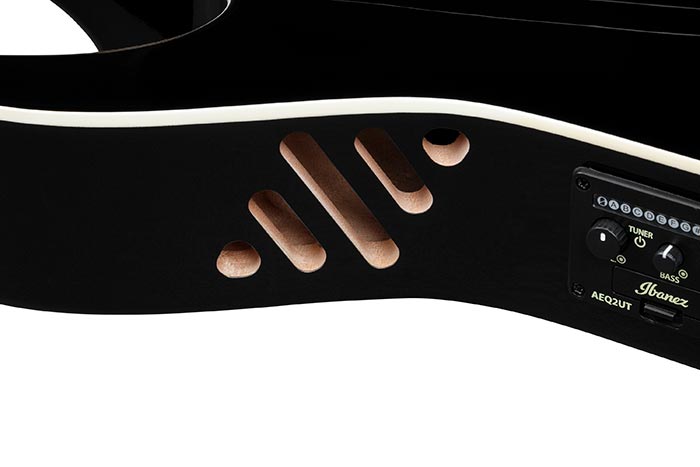

Side sound port
-
Padded Gig bag included
-
Features

Ibanez AEQ-2UT preamp w/Onboard tuner
The AEQ-2UT preamp features a convenient onboard tuner.

Side sound port

Okoume neck
The Okoume neck provides greater playing comfort.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Purpleheart fretboard & bridge
Purpleheart produces a rich mid range with a crisp high end.
